IGene Labserve Private Limited

Ashok Nagar, Delhi

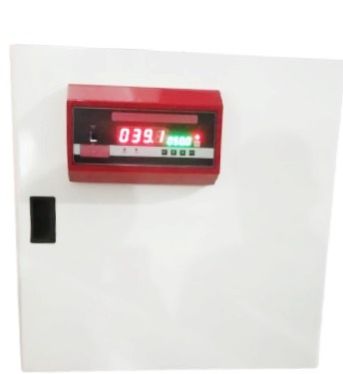

We customize ovens in various temperature ranges, material of construction and chamber dimensions. Maximum operating temperature range of these ovens are 200°C, 250°C and 300°C, which is controlled through microprocessor based PID controller, which displays both set value (SV) and process value (PV) and plays important role in temperature control. Forced air circulation is maintained using branded motor driven blower system. For heating, we use ceramic bead heating elements or tubular air heaters for high temperature. Each unit is fitted with over temperature protection device (safety thermostat), which keeps your oven safe in case of controller failure. Our hot air oven are having attractive design, rugged construction and easy to clean surface; therefore, internal chamber of our ovens is made of thick gauge of stainless steel (SS 304 / SS 316). Corners are such designed that cleaning becomes an easy job for operator. Shelves are made of stainless steel wire mesh cable; these are removable in order to adjust the height level. Depending upon size of internal chamber quantity of shelves may vary from 2 to 7 or more. External cabinet is made of either powder coated mild steel, GI sheet or stainless steel as required. For easy mobility of large ovens, caster wheels with brake are fitted at the bottom. We offer several optional accessories to fit in your hot air oven; such as, explosion proof heater, digital timer, PLC based HMI controller, RS485 computer interface, 21 CFR software, data logger and circular chart recorder, HEPA filter air inlet etc.

• External cabinet
• Glass wool insulation
• Inner chamber
• Tubular air heaters
• Motor driven blower
• Temperature sensor
• Tray slots
• PID temperature controller
• Load indicator
• Mains on/off switch
• Safety thermostat

FEATURES & BENEFITS

• 50°C to 250°C temperature
• Uniform air circulation across chamber
• Digital temperature controller cum indicator
• Excellent uniformity at high temperature
• Stainless steel 304 grade inner chamber
• Corrosion resistant exterior
• Fume ventilation points on both sides
• Stainless steel cable trays
• Over temperature protection.

Optional

• Up to 250°C and 300°C, Perforated inner walls
• Pass through (two side doors)
• Access ports for sensors & data monitoring
• Digital timer 99 hours 99 minutes, Fan speed controller
• Programmable controller for ram & soak
• Toughened glass window, Stainless steel exterior (GMP model)
• RS232 / RS485 interface, Data logger with USB interface
• HMI & PLC automation, Caster wheels with lock, U Shaped Nichrome Air Heater

Standard Features:

• Ideal for microfiltration and quick spin-downs
• Easy-to-use with dual start/stop function
• 7200rpm fixed speed
• Compatible with 2mL × 8 and PCR8 × 2 rotors
• Quiet running, noise level ≤ 45 Db
• Rotor change without tools
• Accelerates and brakes in seconds

Features

• Centrifuge for Micro plates is designed for quick spins of samples in PCR plates. Primarily
• designed for use with 96 or 384 well plates and small volumes, it accepts skirted, non-skirted
• and semi-skirted styles.
• Easy to use, real-time display of all operating information.
• Countdown mode support.
• DC brushless motor, low noise, small interference, maintenance-free.
• Opening the cap will automatically stop running.
• Fast acceleration from standstill to maximum speed fully in just 10sec.
• Braking time is short, from the highest speed to a complete standstill in just 4sec.

Plant Growth Chamber is a chamber having three side illumination, humidity & temperature. It has applications in plant science, soil science & agriculture research etc. The use of plant growth chamber is to create artificial environment using combination of temperature, humidity and light at different set points for biological samples, electronic components and other relevant applications.

Construction : We construct the inner chamber of machine with thick gauge of stainless steel 304 & exterior with powder coated GI sheet for corrosion resistance surface. High density PUF insulation of 70mm is filled between inner and external walls. Main chamber is fabricated with arc welding. We construct sizes as small as 100 litres to 1200 litres or customize as per user requirement. Caster wheels with brake are fitted for easy movement.

Doors : We use double door mechanism with inner door for observation which is fixed directly to the inner chamber that give you access to view plants inside without any variation in internal atmosphere. The exterior door is insulated and fixed with easy to use latches.

Temperature & Humidity: The temperature range is 5°C to 60°C and humidity range is 50% to 90%. These parameters are controlled through PID controller with excellent accuracy and uniformity through PT100 temperature and capacitive humidity sensors. High Quality heaters are used for temperature. For humidity, stainless steel tank with immersion heater is used with automatic water filling facility.

Illumination : Illumination plays important role in effective plant growth condition; therefore, we use high quality growth lights at three sides of the chamber. These lights are controlled through cyclic timer for 24X7 a week. These lights can be easily changed or replaced at user level.

Optional : We also equip our plant growth chambers with some advance features such as PLC based HMI controller. It features color touch screen having display and control of temperature and humidity with data monitoring and storage and also facility USB interface to transfer data into pen drive. 30mm port hole for external wires and validation are also available.

Features & Advantages

• Accuracy of temperature, humidity & light
• Made according to plant height
• Digital control panel
• Digital light timer
• Height adjustable shelves
• Durable construction

Optional

• Exterior made of stainless steel 304 / 316
• White painted steel inner walls
• Door open alarm
• Plant growth racks
• UV lamp
• PLC with HMI interface
• Data logger with USB interface
• Password protection for controller
• Caster wheels

Standard Features

• A wide range temperature control up to 120°C
• Timer function support
• Flexible adapter block selection
• Overheating protection
• Lid for protection and heat preservation

Standard Features :

• Fitted with digital temperature controller
• Excellent temperature accuracy & uniformity
• High grade stainless steel interior
• Powder coated exterior cabinet
• Durable walled rugged construction
• High density glass wool insulation
• Variety of optional accessories available

Features

• Brushless motor with simple construction, more reliable performance, longer life and noise less run.
• Microprocessor control, digital indicator for speed, temperature and time, running parameters can be edited and changed to RCF.
• Heavy duty C.R.C. construction finished with powder coating Stainless Steel centrifugal bowl for extra protection and easy cleaning.
• Fitted with well-balanced brushless motor with electronic drive.
• Digital timer 0-99 minutes. 4 lines 20 characters LCD display for set time, run time, set & run rpm, rcf and rotor identification.
• 50 programmes can be stored in memory and automatic rotor identification on display.
• Additional electronic lid lock who does not allow opening lid when machine is running and opens automatically after centrifuge time is over.
• Dynamic brake (automatic) and imbalance detector are provided. Fast spin option. Selection of 3 acceleration + 4 deceleration profile.
• Programmable Speed Regulator from 2000 to 20000 in interval of 100 rpm Last test parameter recall and displays automatically on LCD
• Supply with instruction manual, cord & plug to work on 220 volts 50Hz A.C.

Features

• New and unique appearance, the interface operation is simple and convenient, compact size.
• The latest generation of semiconductor technology with excellent temperature uniformity.
• Excellent temperature rising and cooling rate up to 4 / s.
• Single mould aluminium case provides higher heat dissipation performance.
• 5-inch TFT high-definition full-touch colour screen, can quickly edit the required files, visual display of temperature curve, convenient and fast setting, accurate display of temperature curve and instrument running process status in real time.
• The system has a built-in gradient calculator, which can easily obtain accurate annealing temperature for different experimental samples to optimize PCR reaction conditions.
• User login, rights management, password protection, data security, administrators can clear users, large data storage; the maximum number of files that can be stored in the machine is greater than 100.
• Unique heating lid design for adjustable height of tubes Real-time display of gradient temperature distribution, real-time temperature display, more conducive to controlling the sample temperature. The hot lid temperature and working mode can be set, hot lid can be switched on and off and tube temperature control mode and module temperature control mode can be chosen to meet more different experimental requirements.

Standard Features:

• BOD Incubator is used for storage and fugal / bacterial culture growth at 37°C or below. These laboratory incubators are also known as cooling incubators or BOD Incubator because their temperature range remains between (ambient-20°C) to 60°C. These units are fitted with digital temperature controller and air circulation fan, which is responsible for uniform distribution of temperature across the chamber.
• Each unit is equipped with digital PID temperature controller for high temperature accuracy and uniformity. This controller displays both set value (SV) and process value (PV). It also has temperature low / high alarm which alerts operator if there is any variation in set temperature. Heat is generated using resistance wire heaters or beaded heaters; motorized blower or axial fan is also fitted to distribute the temperature across the chamber evenly.
• iGene Lab serve BOD incubators feature rugged construction. External cabinet is made of thick gauge of GI sheet which is powder coated and painted to enhance its corrosion resistance feature or GMP model with complete stainless steel if required. The inner chamber is made of thick gauge of 304 grade stainless steel sheets. The gap between the inner and external chamber is filled with high density glass wool which minimizes heat loss and keeps the unit energy efficient. Refrigerant used in this system is free of CFC.
• In long term experience, we have noted that different users have different needs; therefore, we understand the need of customization. In order to meet their diverse needs we provide several customization options and accessories to make these bacterial incubators fit to their specific requirements. Optional accessories include PLC based HMI controller, 21 CFR part 11 software, data logger and thermal printer etc.
• Each unit is tested at various steps before dispatching to customer ensuring you that you are buying a finest incubator.

Optional

• GMP construction (Inner & outer SS 304)
• PLC + HMI controller w/ USB interface
• 21 CFR Part 11 software
• Data logger w/ USB interface
• Thermal printer
• Inner chamber LED light

Standard Features :

• Variable speed selection -delivers upto2500 RPM
• 3 way switch (Touch, Continuous & Stand
• Brushless DC motor fitted with ball bearing
• Orbital diameter of 4 mm
• Visual indication marker for max speed with attachment
• IP 21 class protection - suitable for use in hoods
