Our Products
Wire Mesh Screen
2 Products availableWe offer the best product range of Carbon Steel Wire Mesh, Woven Wire Mesh, Brass Woven Wire Mesh, Brown Copper Wire Mesh and Conveyor Belt Wire Mesh.
As a manufacturer, HMB Engineering our wire mesh to meet our customers exacting specifications ensuring consistent product quality. HMB is in continuous production of plain weave wire mesh constructed of aluminum, low carbon steel, stainless, and copper alloys.
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : PACKING IN WOODEN PALLET OR BOX
Delivery Time : DEPEND UPON SCHEDULE
"HMB Make Woven wire mesh is a manufacturing in Ferrous & Non Ferrous Metal an extensive range of market grade woven wire and welded wire mesh available in a range of materials together to form a square opening or oblong opening. Stainless steel woven wire cloth has outstanding characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical. Also the stainless steel woven wire cloth has high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Woven Wire Mesh is often used in many industrial sectors, including:
Chemical
Food and beverage
Mining
Chemical
Refining
Architectural
Acoustic
Automotive
Pharmaceutical
Environmental
Quarry
Delivery Time : DEPEND UPON QUANTITY
Features
Applications

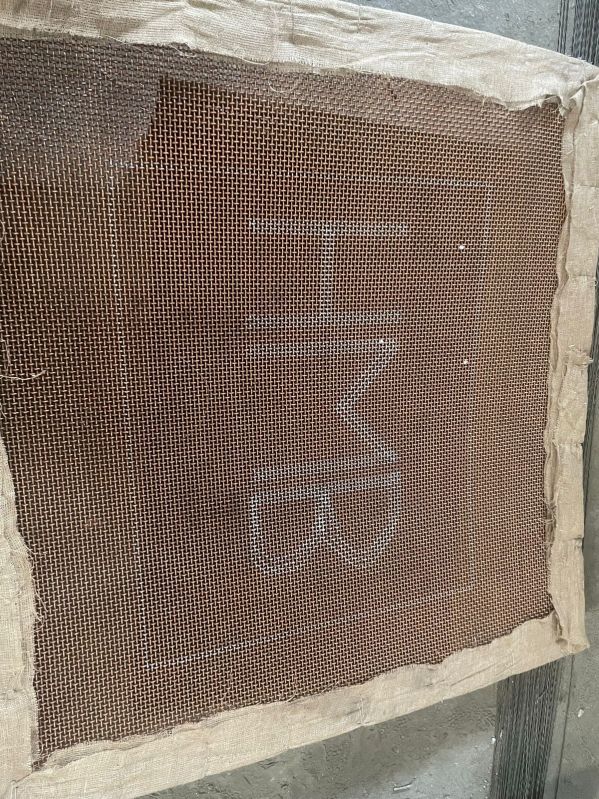

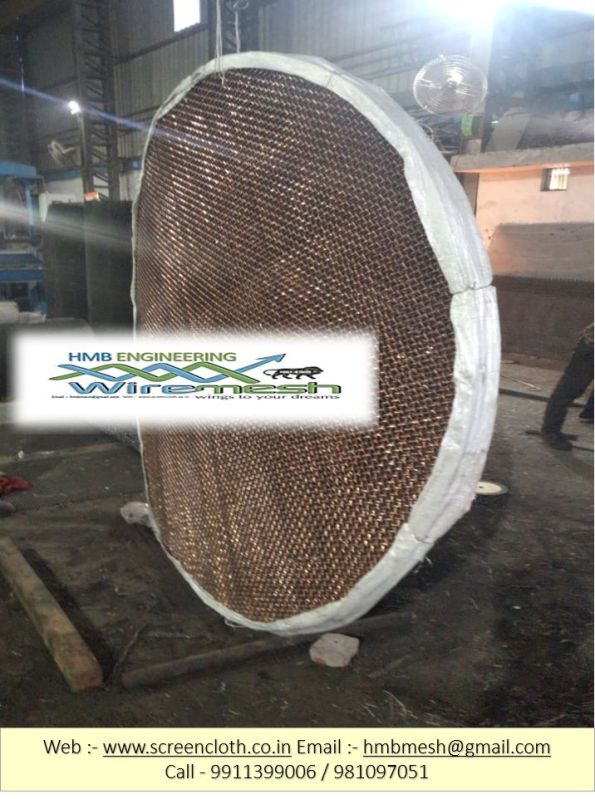

“HMB” Make copper woven wire mesh is also called shielding net. The chemical component is 99.9% copper.
The feature of the copper is non-magnetic. So it can be used as the shielding net. The aperture size of the copper woven wire cloth is 5 mesh to 280 mesh.
Features
Application
Features
Applications
Construction material
Features
Applications
Used for
Available as
Features
Applications
Used for
Features
Applications
Features
Applications
“HMB” Make The chemical component of the phosphor bronze woven wire cloth is 85 - 90% copper and 10 - 15% tin.
Phosphor bronze has good ductility, wear resistance and acid and alkali resistance. The aperture size of the phosphor bronze woven wire cloth is commonly 8 mesh to 400 mesh.
Features
Applications
Details
| Mesh Count | Diameter of Wire | Width of Opening | Open Area | Weight | ||
|---|---|---|---|---|---|---|
| per Inch | Inches | mm | Inches | mm | % / 100 Sq. Ft. | Kg/ 100 Sq. Ft |
| 12 × 12 | 0.03 | 0.81 | 0.05 | 1.3 | 37.9 | 78.8 |
| 14 × 14 | 0.03 | 0.71 | 0.04 | 1.1 | 37 | 70.4 |
| 16 × 16 | 0.02 | 0.58 | 0.04 | 1 | 39.9 | 54.3 |
| 20 × 20 | 0.02 | 0.53 | 0.03 | 0.74 | 33.6 | 56.6 |
| 30 × 30 | 0.02 | 0.38 | 0.02 | 0.47 | 30.3 | 43.3 |
| 35 × 35 | 0.01 | 0.36 | 0.02 | 0.37 | 26 | 44 |
| 40 × 40 | 0.01 | 0.31 | 0.01 | 0.33 | 27 | 36.9 |
| 50 × 50 | 0.01 | 0.28 | 0.01 | 0.23 | 20.3 | 38.8 |
| 50 × 50 | 0.01 | 0.14 | 0.02 | 0.37 | 52.6 | 9.7 |
| 60 × 60 | 0.01 | 0.28 | 0.01 | 0.14 | 11.6 | 46.6 |
| 60 × 60 | 0 | 0.11 | 0.01 | 0.31 | 53.3 | 7.8 |
| 80 × 80 | 0.01 | 0.18 | 0.01 | 0.14 | 19.4 | 25.1 |
| 100 × 100 | 0.01 | 0.13 | 0.01 | 0.13 | 25 | 16 |
| 120 × 120 | 0 | 0.11 | 0 | 0.11 | 24.6 | 13.6 |
| 120 × 120 | 0 | 0.1 | 0 | 0.11 | 27 | 12.3 |
| 150 × 150 | 0 | 0.08 | 0 | 0.09 | 30.3 | 8.7 |
| 180 × 180 | 0 | 0.06 | 0 | 0.08 | 30.3 | 7.2 |
| 200 × 200 | 0 | 0.06 | 0 | 0.06 | 25 | 8 |
| 200 × 200 | 0 | 0.06 | 0 | 0.07 | 29.2 | 6.8 |
| 270 × 270 | 0 | 0.04 | 0 | 0.05 | 32.3 | 4.4 |
| 300 × 300 | 0 | 0.04 | 0 | 0.05 | 30.3 | 4.3 |
| 325 × 325 | 0 | 0.04 | 0 | 0.04 | 29.7 | 4.1 |
| 400 × 400 | 0 | 0.03 | 0 | 0.04 | 36 | 2.6 |
Graph
Features
Applications
Used in
Features
Applications
Stainless Steel Wire Mesh is often used in many industrial sectors, including:
Features
Applications
Used for
Details
| Mesh/Inch | Wire Diameter | Mesh/Inch | Wire Diameter |
|---|---|---|---|
| 3 Mesh | 21 G | 22 | 33 G |
| 4 Mesh | 23 G | 24 | 35 G |
| 5 Mesh | 24 G | 25 | 35 G |
| 6 Mesh | 25 G | 26 | 36 G |
| 8 Mesh | 24 G | 26 | 36 G |
| 8 Mesh | 26 G | 28 | 36 G |
| 10 Mesh | 27 G | 30 | 36 G |
| 10 Mesh | 28 G | 30 | 36 G |
| 12 Mesh | 29 G | 30 | 36.5 G |
| 14 Mesh | 28 G | 34 | 36 G |
| 14 Mesh | 30 G | 40 | 38 G |
| 16 Mesh | 30 G | 40 | 38 G |
| 18 Mesh | 30 G | 45 | 38 G |
| 20 Mesh | 32 G | 50 | 38 G |
| 20 Mesh | 33 G | 60 | 38 G |
| 22 Mesh | 32 G | - | - |
Available as
Features
Applications
Features
Applications
Features
Applications
Features
Applications
Used as
Features
Applications
Features
Applications
Features
Applications
Features
Applications
Features
Applications
Used for
Features
Applications
Features
Applications
Features
Applications
Features
Applications
Used for
Features
Applications
Available as
Features
Applications
Features
Applications
Woven Wire Mesh is often used in many industrial sectors, including
Different Types :
Mill Grade The mill grade stainless steel woven wire Mesh is used mostly in sifting and sizing applications.It has higher percent of open area compared with the market grade, but less than that of tensile bolting grade. The weaving method is commonly the plain weave.
Market Grade The market grade stainless steel woven wire mesh is the most common specifications of industrial wire cloth. It can be used in a wide range of applications. The weaving method can be plain weave and twill weave.
