Welding Electrodes
1 Products availableElectrodes
1 Products availableWe are leaders in the market for providing best range of Copper Coated Steel Wire, MIG Welding Wires (CO2), Mig Wires, mag welding wires and Copper Coated Wires

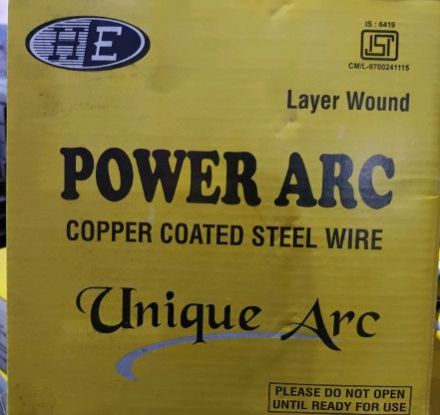

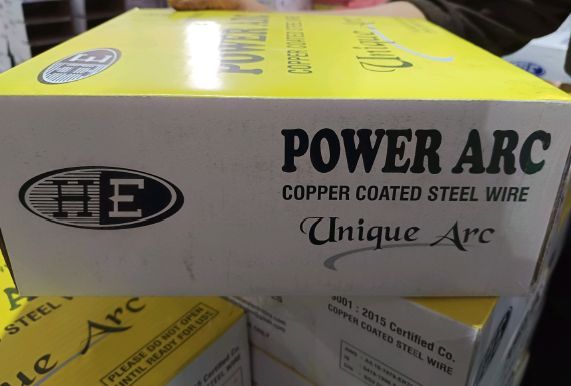

"POWER ARC" is a copper coated manganese-sillicon bearing wire for GMAW using Co2 or 80% Ar, 20% Co2 mixture for shielding. "POWER ARC" is designed for all positional welding of strcutural steels, pressure vessels etc. The weld metal is of low hydrogen type and ratio graphics quality.
Application: Mild and Structural Fabrication
Packing Specificiation: "POWER ARC" wires are available in especially designed spools with standard dimension (300x100mm). Each Spool with standard weight of 12.5kg is individually packed in air-tight polythene bags. added protection against moisture given by sillca gel.
Technical Specification
Classification | |||||
AWS | 5.18 1986 | ||||
ER | 70- S6 | ||||
DIN 8559 | |||||
SG2 | |||||
Wire Chemistry | |||||
C% | Mn% | SL% | S% | P% | CU% |
0.07 | 1.4 | 0.8 | 0.35 | 0.025 | 0.5 |
0.15 | 1.85 | 1.15 | (Max) | (Max) | (Max) |
Shielding Gas | Co2/Co2 Ar Mixture | ||||
Consumption 10-12 Litres/Minute | |||||
Welding Current Rating | |||||
0.8mm | 60-220 Amp. | ||||
1.0 mm | 80-280 Amp. | ||||
1.2 mm | 90-330 Amp. | ||||
1.6 mm | 120-440 Amp. | ||||
2.0 mm | 150-550 Amp. | ||||
Properties of Weld Metal | |||||
UTS | 52-55 Kgs/mm2 | ||||
Y.S | 40-45 Kgs.mm2 | ||||
Elongation (L-5D) | 22% min | ||||
Charpy V Notch | @29 Degree C to 2.8kgf-m28J |
we are counted among the well known co2 solid welding wire manufacturers from the country because of our outstanding quality and unmatched performance. Co2 mig/mag welding wires offered by us are of solid wire type that is suitable for co2 or ar-co2 mix. These copper coated co2 mig/mag welding wires are used at large in industries like ship building, steel & pressure vessel construction, mechanical engineering, pipe work & automobile, etc. The co2 mig/mag welding wires possess properties of low alloy solid wire for mig/mag joint welding of structural & pipe steels with co2 or ar-co2 mix.
mig welding wires (co2)auto parts industries, ship building, steel & pressure vessel construction, mechanical engineering and pipe work & automobile industry properties.
classification
mechinical properties of wireheat- treatment yield strength [n/mm2] tensile strength [n/mm2] percentage elongation [%] charpy v north [j]-29oc aw & sr >420 >550 >22 >27
