2 Products availableOur product range contains a wide range of Conveyor Head Pulley, Conveyor Snub Pulley and Conveyor Tail Pulley

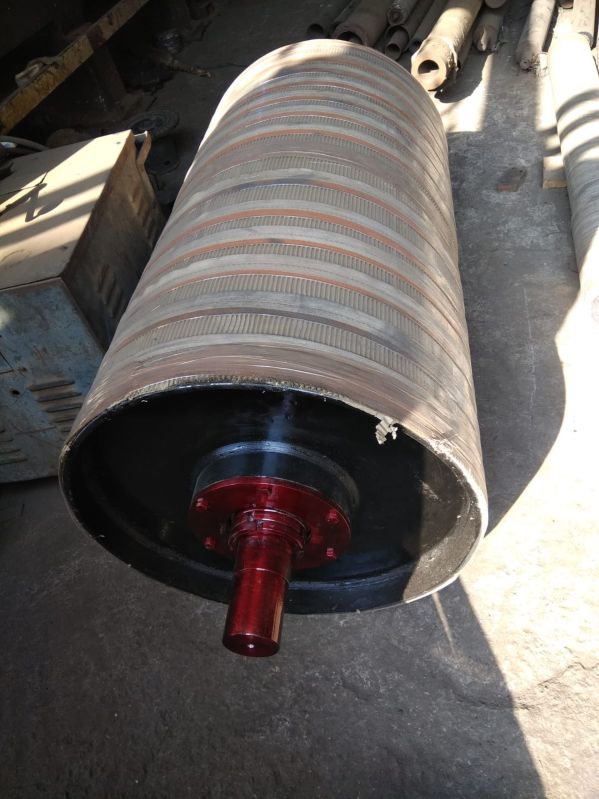

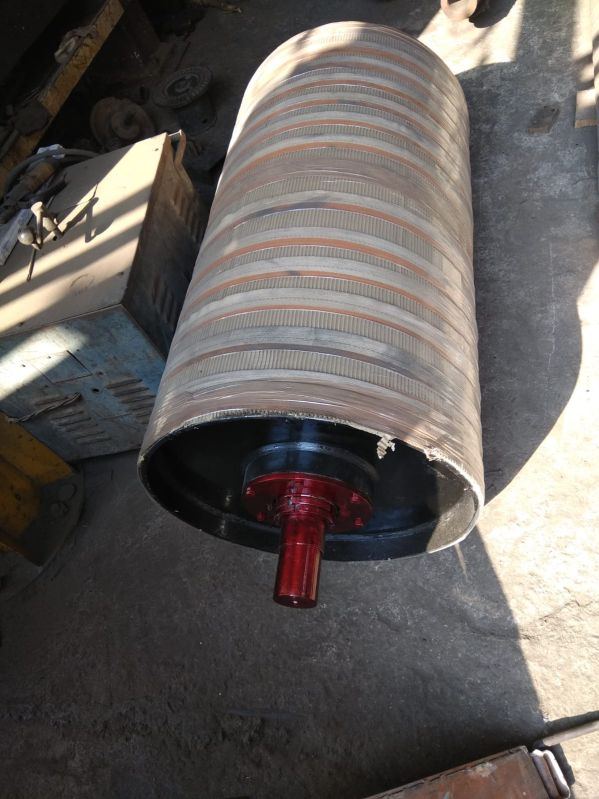

Conveyor Head Pulley
The belt conveyor head pulley is located at the discharge point of conveyor. It drives the conveyor belt. For better traction, the head pulley is usually lagged (with either rubber or ceramic lagging material).
APPLICATION
The head pulley is typically located at the discharge end of the conveyor system, opposite the tail pulley. The primary function of the head pulley is to transmit power from the motor to the conveyor belt, causing it to move and transport materials along the conveyor. It is widely used in:
metallurgy,
mining,
quarrying,
Cement and clinker,
construction waste,
chemical, fertilizer,
aggregate, sand, gravel,
materials, etc.
FEATURES
Heady Pulley Construction
Head pulleys are usually constructed from steel. The outer surface of the pulley, where the conveyor belt makes contact, may be lagged with rubber or other materials to provide better traction and reduce wear.
Various Diameter Selection
The diameter of the head pulley is an important design consideration. Larger diameter head pulleys provide more surface area for the conveyor belt to grip, resulting in better traction and reduced tension requirements.
Robust Shaft Design
The design of the shaft on which the head pulley is mounted is important. It must be robust enough to handle the loads and forces exerted by the conveyor system.
Environment Considerations
The environmental conditions at the location of the head pulley, such as exposure to dust, moisture, or corrosive substances, may influence the choice of materials and coatings for the pulley.
High Quality Bearings
Bearings are mounted on the shaft of the head pulley to facilitate smooth rotation. The type of bearings used depends on factors such as load capacity, speed, and environmental conditions. We offer SKF, FAG, NSK, LYC, HRB, or ZWZ for selection.
Belt Conveyor Head Pulley
Belt Width 500-2800mm (19-110.2 inch)
Pulley Length 500-3200mm (19-125.9 inch)
Diameter 200-1800mm (7.8-70.8 inch)
Standard ISO9001:2008, CEMA, DIN, TUV, etc.
Working Life More than 30, 000 hours.
Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.
Main Material Carbon Steel Shell
Length of conveyor Head pulley depends on the width of conveyor Belt. You can get Head pulleys with hot vulcanized rubber lagging, plain or grooved, as required by client.
APPLICATION
Snub pulleys are usually positioned close to the drive pulley at the head of the conveyor system. The main function of a snub pulley is to increase the wrap angle of the conveyor belt around the drive pulley. This increased wrap angle enhances the friction between the belt and the drive pulley, preventing slippage and improving traction. It can be used in industries of mining, quarry, power plant, sand plant, cement, coal, port, steel, etc.
FEATURES
1. Installation Location: Snub pulleys are usually positioned close to the drive pulley at the head of the conveyor system.
2. Working Function: This increased wrap angle enhances the friction between the belt and the drive pulley, preventing slippage and improving traction.
3. Increase Wrap Angle: Snub pulleys are designed to increase wrap angle, which results in a greater surface area of the belt in contact with the drive pulley.
4. Friction and Traction: By increasing the wrap angle, snub pulleys help to maximize the friction between the belt and the drive pulley.

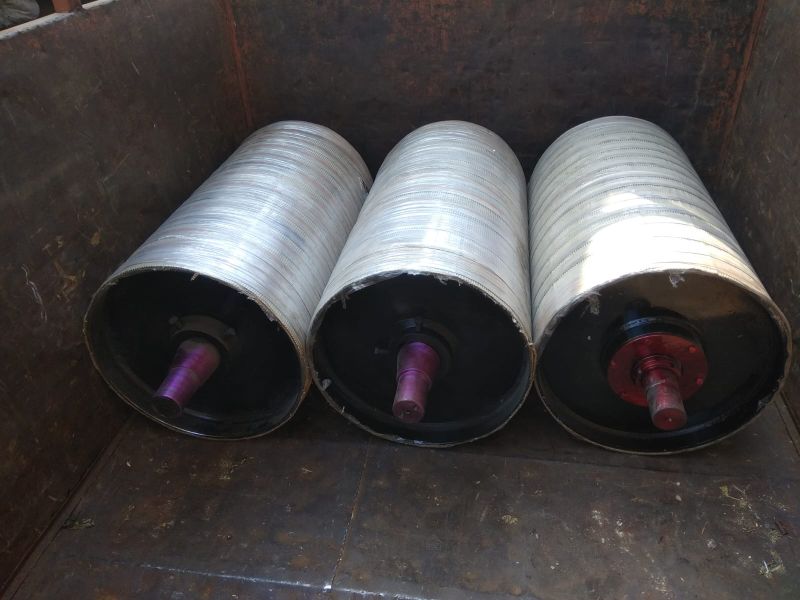

Belt Conveyor SnubPulley
Items Content
Belt Width 500-2800mm (19-110.2 inch)
Pulley Length 500-3200mm (19-125.9 inch)
Diameter 200-1800mm (7.8-70.8 inch)
Standard ISO9001:2008, CEMA, DIN, TUV, etc.
Working Life More than 30, 000 hours.
Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.
Main Material Carbon Steel Shell
Length of conveyor Snubpulley depends on the width of conveyor Belt. You can get Snubpulleys with hot vulcanized rubber lagging, plain or grooved, as required by client.
APPLICATION
The belt conveyor tail pulley can be used as take-up pulley, snub pulley, and bend pulley. The primary function of the tail pulley is to redirect the returning conveyor belt and provide tension. It helps maintain proper belt tracking and ensures that the belt remains under tension to prevent slack. It can be used in industries of mining, quarry, power plant, sand plant, cement, coal, port, steel, etc
FEATURES
Tail Drum Pulleys
You can get belt conveyor traditional tail drum pulleys with high abrasion resistant rubber or ceramics covered. The diameter of tail pulley is smaller than driving pulley. It is installed at the tail of belt conveyor to change the direction of conveyor belt.
Winged Tail Pulleys
You can get heavy duty wing pulley, spiral wing pulleys, chevron wing pulleys, herringbone wing pulleys. Wing type tail pulleys are often installed as a method to reduce the risk of belt damage from the entrapment of lumps of material between the belt and the pulley.
Belt Conveyor Tail Pulley (Return Pulley)
Belt Width 500-2800mm (19-110.2 inch)
Pulley Length 500-3200mm (19-125.9 inch)
Diameter 200-1800mm (7.8-70.8 inch)
Standard ISO9001:2008, CEMA, DIN, TUV, etc.
Working Life More than 30, 000 hours.
Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.
Main Material Carbon Steel Shell
The selection and design of the tail pulley should be tailored to the specific requirements of the conveyor system, including factors such as load capacity, belt tension, and environmental conditions. Length of conveyor Tail pulley depends on the width of conveyor Belt. You can get Tail pulleys with hot vulcanized rubber lagging, plain or grooved, as required by client.
.
