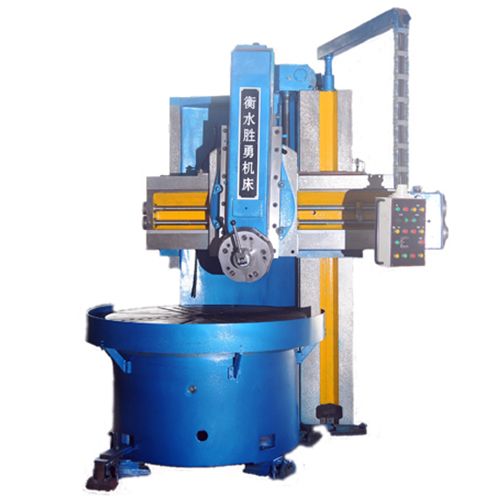

CNC VTL equipment C5112 is a a universal single column vertical lathe, can turn the cylinder, cone and plane, for cast iron, steel and non-ferrous metal parts processing. Large VTL machinery use a combination of mechanical components, it can be assembled into a large part processing can meet customer requirement. CNC VTL equipment is made from base, gantry frame, feed box and other components. The gantry is mainly composed of column, roof beam, middle beam and other parts. Machine maximum machining workpiece diameter is 1250mm, Maximum processing height is 1000mm. According to the customer's processing parts and processing conditions, we can determine the table diameter, turn diameter, turning height, table speed, load, tool holder and other parameters to select the appropriate combination of mechanical components , providing good economical mechanical products. C5112 VTL machinery technical parameters 1 Table diameter 1000 mm 2 Maximum turning diameter 1250 mm 3 Maximum height of workpiece 1000 mm 4 Maximum weight of workpiece 3.2 t 5 Speed change of table 6.3-200 rmin 6 rotation speed of work table 16 step 7 Feed rates 0.8-86 mmmin 8 Step 12 step 9 Horizontal travel of tool post 700 mm Vertical travel of tool post 650 mm 10 Horizontal travel of side cutter bar 600 mm Vertical travel of side cutter bar 800 mm
Hengshui, China
