Series 10A inline sensors are supplied in threaded Schedule 40 pipe nipples (except for type k Copper). The inline sensor is complete with factory fitted probes and is supplied as a complete assembly providing economical installation. Series 10A sensors are supplied with Steel, 316SS, Brass and Type k Copper. Line sizes 1/2 through 3 are available.

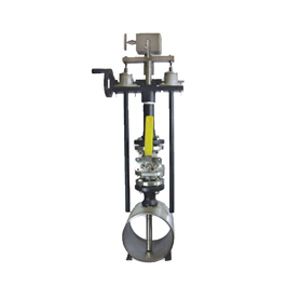

The 70H & 72H Accutubes are available for line sizes 6 through 42 and can measure bi-directional flow, the 3-valve manifold head enables direct mounting of any DP or Multivariable Transmitter ensuring a robust and accurate flow system. The probe and head are constructed of 316LSS as standard, other materials are available for corrosive, high temperature and high pressure applications. Optional Gear Drive or Socket Drive mechanisms are available for easy probe retraction reducing maintenance time and costs.

The Series 37L Accutube probe and Wet-Tap assembly provides the ability to access the pipe without service interruption. This Accutube assembly is supplied complete with two or more threaded jacking screws to allow insertion, withdrawal, and/or retention of the probe under full system pressure. The Series 37L Accutube and Wet-Tap Assembly is available for line sizes 2 through 72 and may be used in systems up to 1000 PSIG at 800F Max.

Series 22L Accutube Single Mount. The Accutube Series 22L Probe is constructed of a 316LSS cast head and a 316LSS probe. The Series 22L probe has single-mounted support and installs through a single packing gland and thredolet. The Series 22L Accutube is factory-fitted with 1/2 NPT connections and is shipped with mounting hardware complete and is available for line sizes 2 through 42.

Series 23L Accutube Double Mount. The Accutube Series 23L probe is constructed of a 316LSS cast head and a 316LSS probe and is double supported. The Accutube is provided complete with packing gland and two thredolets. The Series 23L Accutube is factory-fitted with 1/2 NPT connections and is shipped with mounting hardware complete and is available for line sizes 2 through 72.

Series 11A inline sensors are supplied in threaded Schedule 80 pipe nipples (except for the P.V.C. plain end type). The inline sensor is complete with factory fitted probes and is supplied as a complete assembly providing economical installation. Series 11A sensors are supplied with Steel, 316SS, Brass and PVC. Line sizes 1/2 through 3 are available.

Meriam Process Technologies Accutube brand multi-port averaging pitot tubes are the smart choice when ease of installation, cost-effective operation and accurate flow measurement is a priority. Four standard models include Inline, Insertion, Flanged and Wet Tap. Accutubes are designed to handle your tough applications and are available in Steel Steel and Brass.

The Series 20T is a standard probe Accutube with single mount support. The 21T offers double mount support. They are both constructed of stainless steel and brass and install through a single packing gland and thredolet. Both are factory fitted with 1/8 NPT connections and mounting hardware comes standard. The 20T is available in sizes 1 through 30 and the 21T is available in sizes 3 through 42

Meriam manufactures the widest range of Averaging Pitot Tubes for gases, liquids and steam with bi-directional flow capability. Under the Accutube brand name, there are four standard models; Inline, Insertion, Flanged and Wet Tap which can provide a flow solution for your toughest applications. To provide the complete flow solution that meets your specific needs, we can provide DP or Multivariable transmitters from the brand of your choice, or we will recommend the best fit for your application. These transmitters can be installed on the Accutube and configured to your specific flow requirements here at Meriam by qualified technicians, reducing your expense and time .

Use of the 33T allows insertion and removal without process shutdown. The 33T probe consists of a standard brass head and a 316SS probe and installs through a wet tap assembly. The wet tap assembly consists of a packing gland, pipe nipple, insertion valve and thredolet or pipe saddle clamp. The 33T has 1/ 8 FNPT connections and is shipped with wet tap assembly and safety chain.
