Our Products
Our offered Product range includes 15" AUTO FEED THERMAL LAMINATION MACHINE YOZTLM380, HIGH SPEED THERMAL LAMINATION MACHINE FOR INDUSTRIAL USE YOZTECH TLM720, HIGH SPEED THERMAL LAMINATION MACHINE FOR INDUSTRIAL USE YOZTECH TLM490, 14" STEEL ROLLER THERMAL LAMINATION MACHINE and 31" Roll To Roll Lamination Machine.
15" AUTO FEED THERMAL LAMINATION MACHINE " YOZTLM380
This machine covers a small area, is operated conveniently, run fast. It's equipped with automatic temperature-control and speed-regulation, automatic feeding. Several rolls or redundant rolls can be slit at one time, so this machine is regarded as a slitter.
The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellphone etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three-dimensional sense.
15" AUTO FEED THERMAL LAMINATION MACHINE " YOZTLM380 FOR 12X18, 13X19 | ||
Model | YOZTLM380 |
|
Max. working width | 380mm | |
Laminating speed | 0.5-5m/min | |
Blade | Perforating blade and cutting blade | |
Single/double laminating | Yes |
|
Feeding paper | Automatic |
|
Slitting paper | Automatic |
|

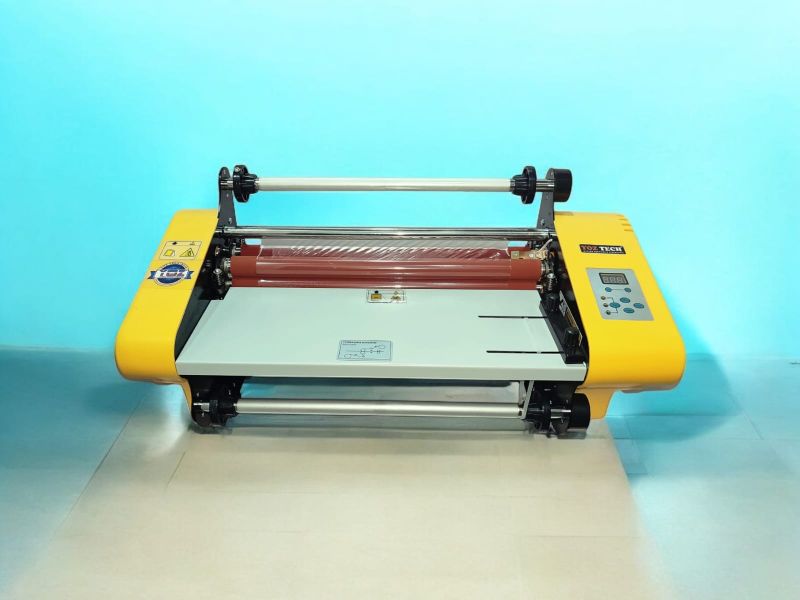

Model Name | YOZ TECH TLM720 |
Max. Laminate Width | 720mm |
Laminate Thickness | 60-800gsm |
Max. Laminate Speed | 9m/min |
Warming Up Time | 10min |
Suggested Laminate BOPP Film | 25-250mic |
Max. Temperature | 150 degree |
Operating Panel | LCD Screen |
Auto Feed Paper with Belt | Yes |
Single Laminate | Yes |
Double Laminate | Yes |
Cold&Hot Laminate | Yes |
Cut film knife | Yes |
Perforating knife | Yes |
Auto rewinding paper | Yes |
Reverse | Yes |
Dia. of core | 1", 1.5", 3" |
The quantity of roller | 4pcs |
Speed control | 9 gear |
Power | 2.5KW |
Voltage | AC110V(60HZ)AC210V230V(50HZ) |
Package | 1pcs/Wooden Case |
Carton Size | 128*92*112cm |
G.W. | 180kgs |
N.W. | 158kgs |
Model Name | YOZTECH TMN490 |
Max. Laminate Width | 490mm |
Laminate Thickness | 60-800gsm |
Max. Laminate Speed | 10m/min |
Warming Up Time | 10min |
Suggested Laminate BOPP Film | 25-250mic |
Max. Temperature | 150 degree |
Operating Panel | LCD Screen |
Auto Feed Paper with Belt | Yes |
Single Laminate | Yes |
Double Laminate | Yes |
Cold&Hot Laminate | Yes |
Cut film knife | Yes |
Perforating knife | Yes |
Auto rewinding paper | Yes |
Reverse | Yes |
Dia. of core | 1", 1.5", 3" |
The quantity of roller | 4pcs |
Speed control | 9 gear |
Power | 2.2KW |
Voltage | AC110V(60HZ)AC210V230V(50HZ) |
Package | 1pcs/Wooden Case |
Machine Size | 86*75*105cm |
Carton Size | 102*89*111cm |
G.W. | 130kgs |
N.W. | 110kgs
|
Additional Information:
Delivery Time : 10-15
ADDITIONAL FEATURES:

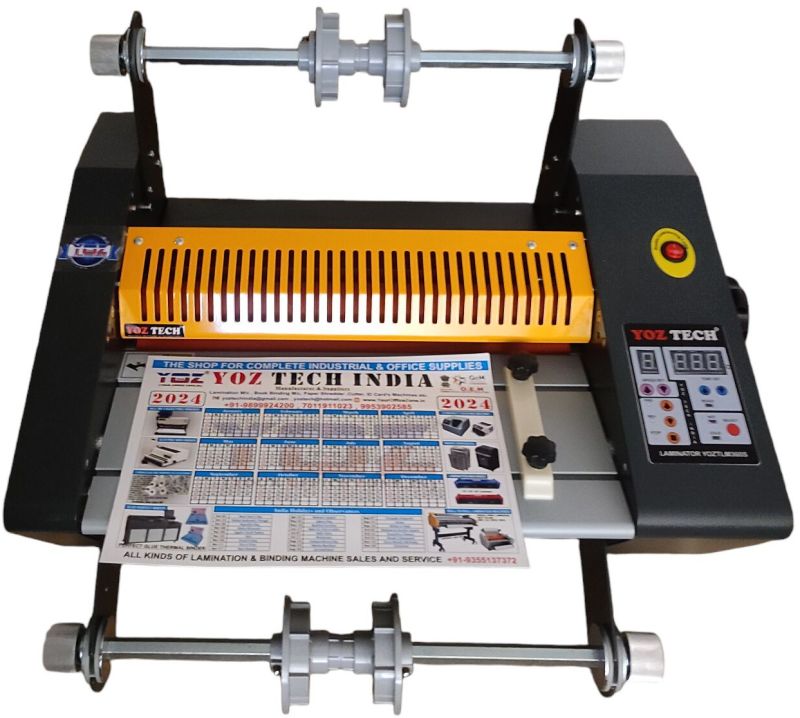

With this YOZ TLM360S Roll to Roll Lamination Machine you can also do single side lamination machine- Where you can select a mode on the machine which enables it to heat only the top roller and the bottom roller remains at Room Temperature. For more details refer to the manual provided inside the machine. The upper roller in this machine is made up of steel to give its user best in class output. Steel Roller means Long Roller life and best possible lamination.
Additional Information:
Delivery Time : 10-15

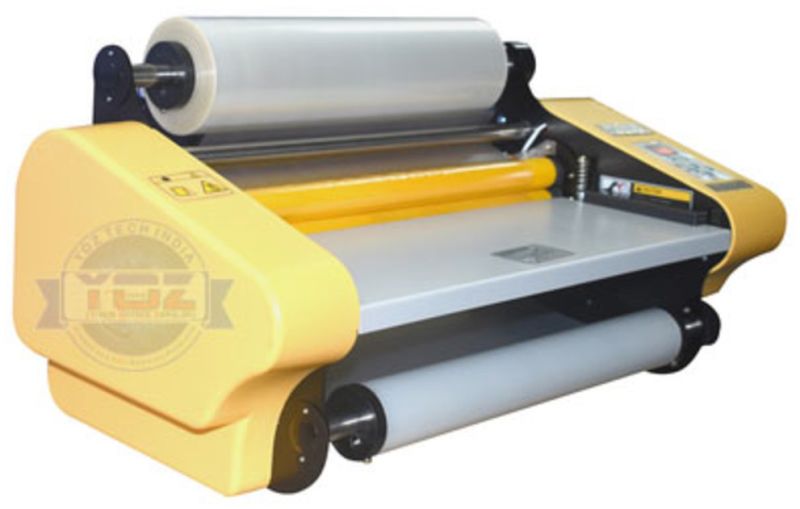

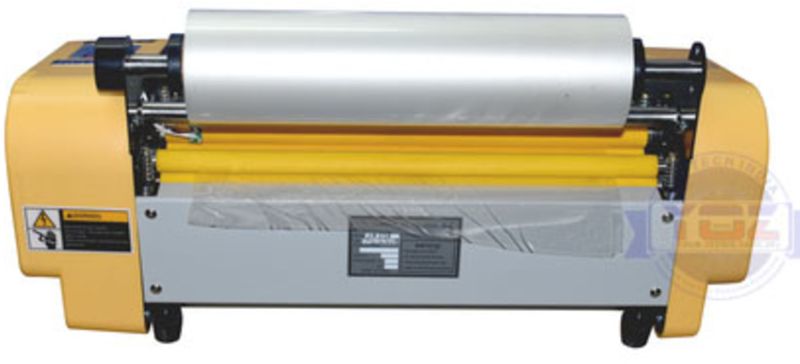

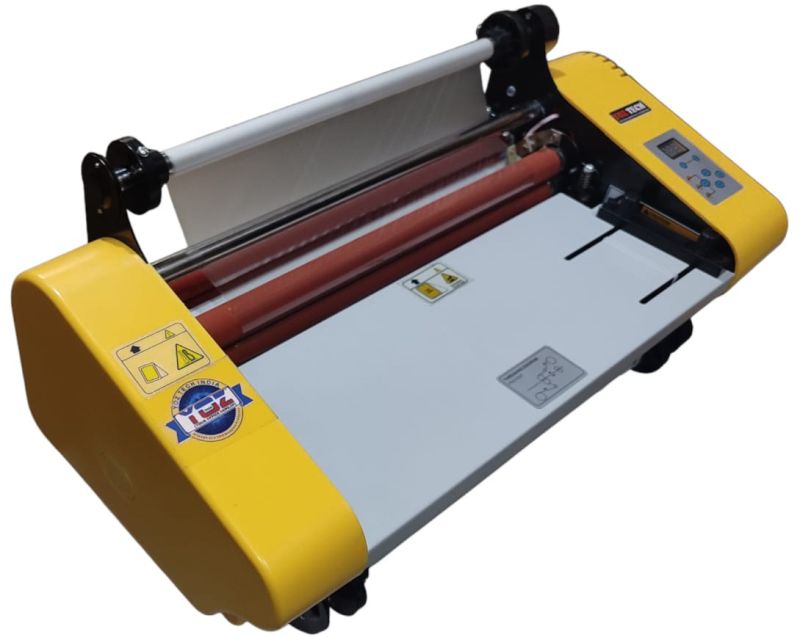

31" Roll To Roll Lamination Machine
With the expertise of our skilled professionals, we are engaged in offering HLM Roll To Roll - Hot & Cold lamination machines. These are used for laminating plans, designs, blue prints, charts and mark sheets. The range is easy to operate and ensures smooth lamination of the desired products.
Features
Robust construction
Dimensional accuracy
Resistance against abrasio
Additional Information:
Delivery Time : 10-15
Specification | |
Model No: | YOZHLM42RTR |
Max Laminating Width | 1066mm |
Max Laminating Thickness | 4mm |
Laminating Speed | 1500mm/min |
Power Consumption | 2400W |
Operating Temperature | 0 - 160c |
Driving Motor | DC geared motor |
Temperature Control | Thermocouple & time ratio control |
Heating System | Hot shoe type with infrared heater |
Additional Information:
Delivery Time : 10-15
Metal Cover (Dual Color)
* Silicon Rollers
* Metal Gears
* Ready Light / Power Light / Power Switch
* Forward / Reverse Switch
*Heat / Cold Switch: Offers cold lamination function.
* Electronic Circuit (PCB) & Gradual Temperature Control
* Dual Heat System :infrared heating system, more efficient than plate
Additional Information:
Delivery Time : 10-15
Model: | ECO-12 |
Laminating Width: | 330mm |
Laminating Speed: | 0.35m/min |
Roller Mounting Distance | 2mm |
Operation Temperature: | 90-150 ? |
Heating System: | Infrared heating lamp |
Power Supplies(optional): | 110V/60HZ , 220V/50HZ |
Machine Net Weight: | 4.6kgs |
Net Weight/CTN: | 18.5kgs |
Warm Up Time: | 3mins |
Laminating Thickness: | Up to 250mic |
Roller Diameter: | 20mm |
Roller: | 4 |
Document Reverse : | Yes |
Power Consumption: | 620W |
Machine Body: | Metal |
Package: | 4pcs/CTN |
Gross Weight/CTN: | 20.7kgs |

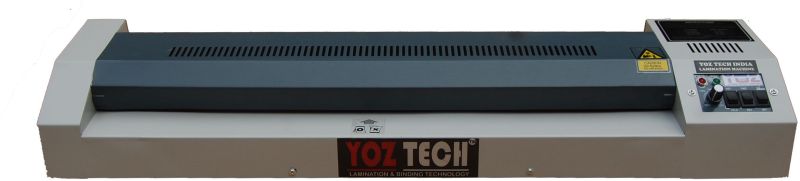

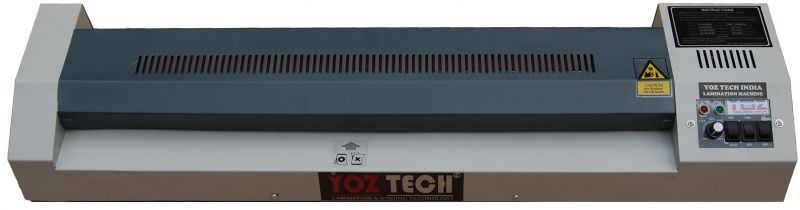

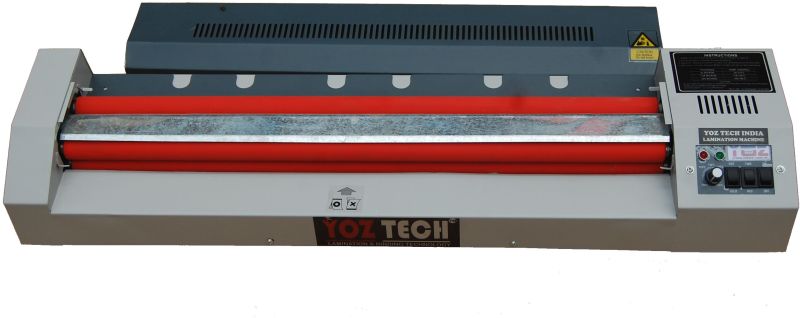

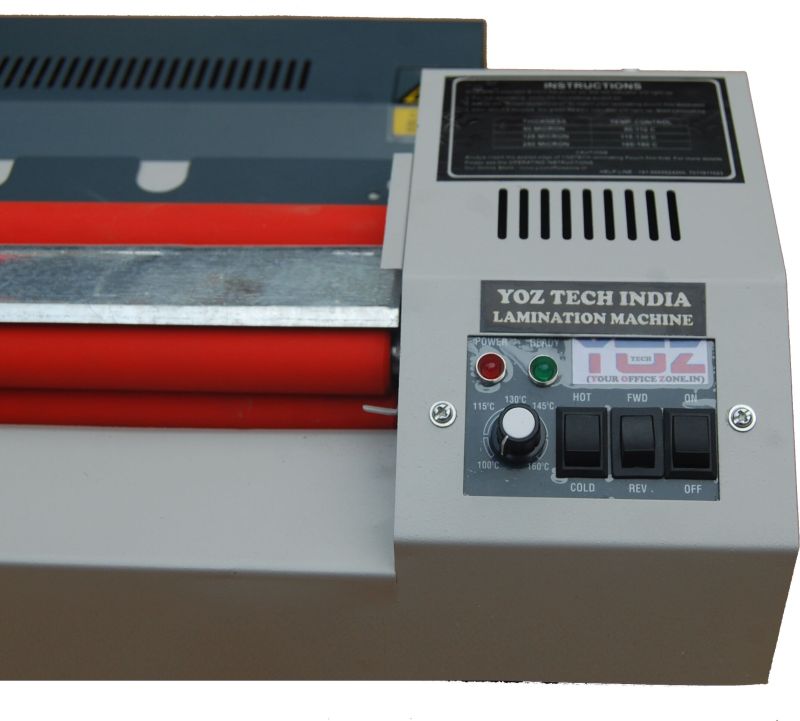

DESKTOP 24" POUCH LAMINATION MACHINE LM24609
Small size, Desktop Lamination Machine Black and white Box Packing All Metal structure
Small roller + Metal gear + Steel shell+ paper backward protection +accurate temperature control
Economy in electricity :infrared radiation heating, speedy preheating for only 3 minutes
Three fast: Fast preheating; fast laminating and fast Cooling
Six-temperature adjustment, fit for different size and thickness of plastic pouch film
The most popular laminating size:12.5", suit for A3, A4 or Letter size Paper.with Knob
Dependability: Feeding paper smooth, no bubbles, no wrinkle, reverse switch to make it safer
Two laminating function: Hot & Cold laminating
Cold Laminating: turn the switch to "Cold" to start cold laminating
Reverse function: turn the switch to Rev if necessary. just take off the upper cover to operate
Additional Information:
Delivery Time : 10-15

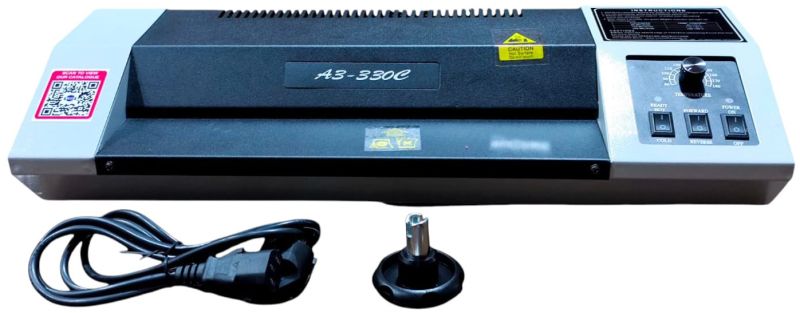

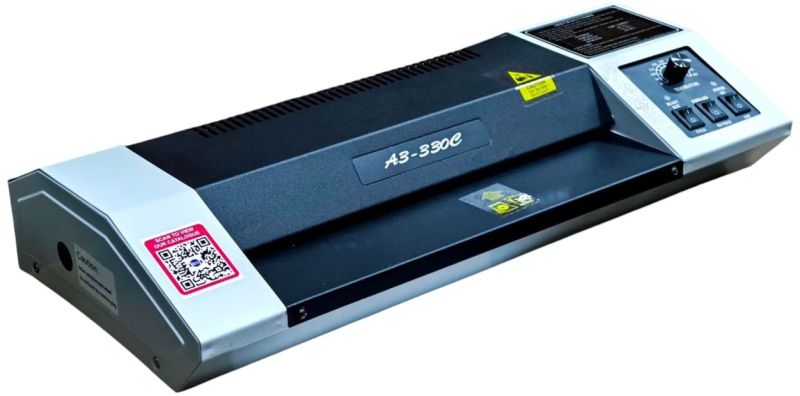

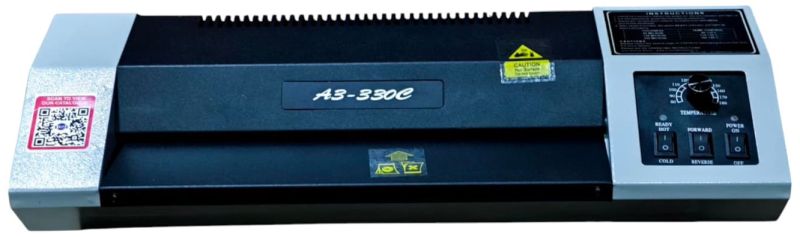

A3 LAMINATION MACHINE YOZ LM330e
Metal Cover (Dual Color)
Silicon Rollers
Metal Gears
Ready Light / Power Light / Power Switch
Forward / Reverse Switch
Heat / Cold Switch: Offers cold lamination function.
Electronic Circuit (PCB) & Gradual Temperature Control
Dual Heat System :infrared heating system , more efficient than plate
Additional Information:
Delivery Time : 10-15
40" Roll To Roll Lamination Machine
With the expertise of our skilled professionals, we are engaged in offering HLM Roll To Roll - Hot & Cold lamination machines. These are used for laminating plans, designs, blue prints, charts and mark sheets. The range is easy to operate and ensures smooth lamination of the desired products.
Features
Robust construction
Dimensional accuracy
Resistance against abrasion
Additional Information:
Delivery Time : 10-15
Model | YOZ-390DBL |
Max. Laminating width | 390mm |
Laminating speed | 0?6m/min |
Laminating temperature | 80?125? |
Heating | lamp |
Paper feed | Belt transmission |
Wattage | 180W |
Size | 760*580*1150mm |
Packing size | 650*530*600mm |
Weight | 75KG |
Packing with stand | 650*530*800mm |
Additional Information:
Delivery Time : 10-15

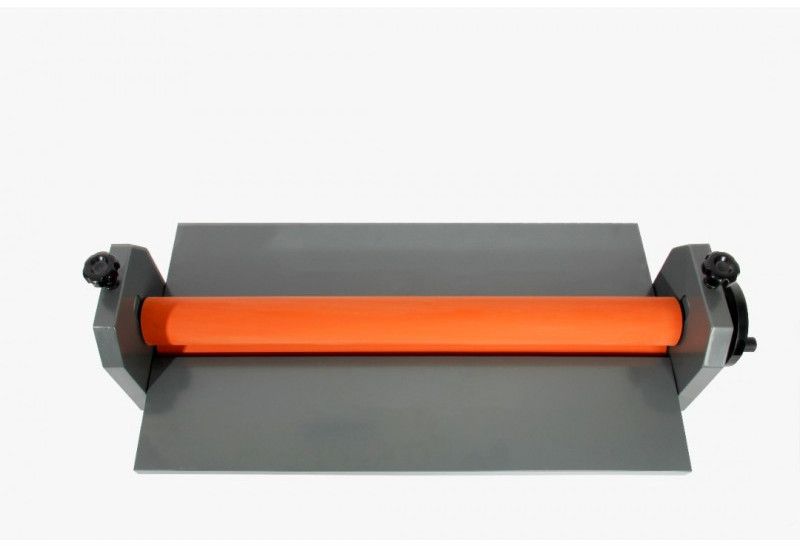

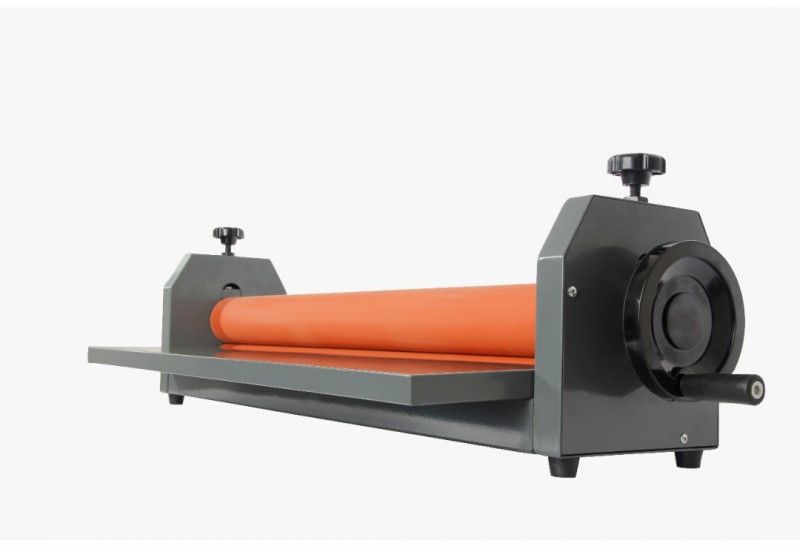

1600MM 63" COLD LAMINATION MACHINE
Products information:
Maximum Lamination width :1580mm
Maximum lamination thickness :15mm
Size :182*40*45cm
Weight :75
Upper roller diameter : 125mm
bottom rubber diameter110mm
Additional Information:
Delivery Time : 10-15
