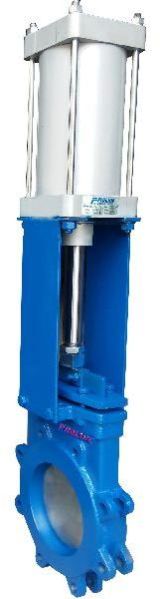

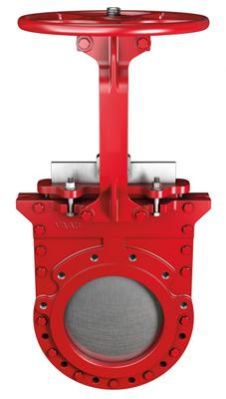

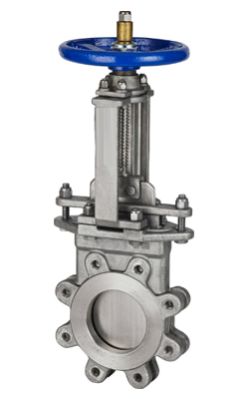

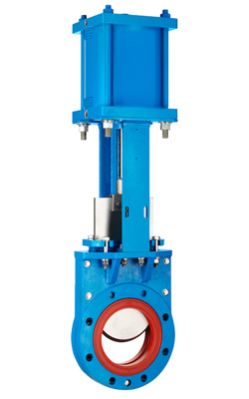

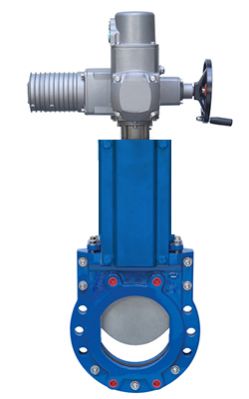

Bi direction knife Gate valve is a very unique type of valve that has various benefits. They play a great role in blocking the fluid from upstream as well as downstream direction. They possess a valve seat that seals the source of the pressure in a particular direction. Around the pipelines, this type of valve can be installed in any way.

FMC is one of the best valve manufacturing companies in Chennai. In the last 5 years, we have ruled over Chennai and we intend to continue doing so. Our clients are highly satisfied with the products we provide and have appreciated our Elite services.

Our products are manufactured using modern techniques as a result of which they turn out to be rich in quality. We mainly manufacture single-piece ball valves, knife Gate valves, butterfly valves, etc. It is important to know that our products can be used in the food industry, paper mill industries as well.

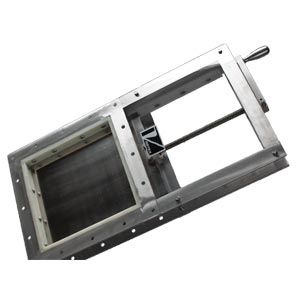

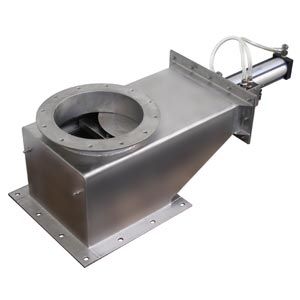

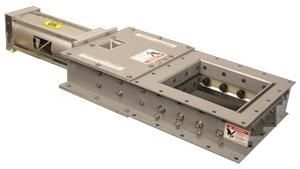

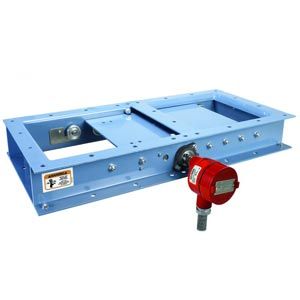

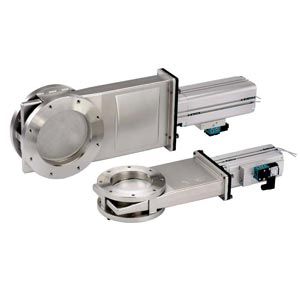

FMC’s Slide Gate Valves are designed to shutoff product flow from outlets of storage bins, silos, conveyors, and other discharge points handling dry bulk materials. Sizes : These rugged heavy duty slide gate valves are available in standard sizes ranging from 150mm to 1200 mm square.Rectangular, and special configurations including dual opposing blade and De-watering designs are available on a custom build basis

Body: Fabricated design. The valve frame is constructed from heavy duty Steel Channels  with a Guides for tighter shut off. Square or rectangular port design for higher flow capacity and minimal pressure drop. Internal design avoids any buildup of solids that would prevent valve from closing

Pressure Rating: hardened Blanchard ground blade which rides on cam rollers or solid guides. Gate is polished on both sides to avoid jamming and seat damage.

Packing: Long-life packing with several layers of braided fiber packing and gland ensuring a tight seal. Long-life braided packing is available in a wide range of materials.

Yoke or Super Structure: Made of EPOXY coated steel (stainless steel available on request). Compact design makes it extremely robust even under the most severe conditions.

Actuators: Actuation of Slide Gate Valves can be accomplished in many ways like Pneumatically for fast action, Hydraulically for power, Electrically for precise positioning, and Manually for maintenance and flow control.

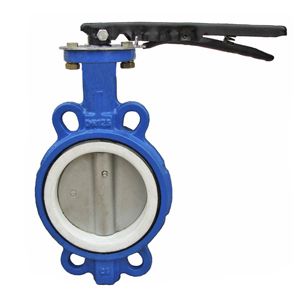

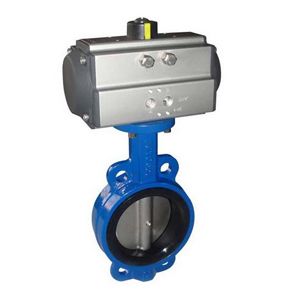

Resilient Seat Butterfly Valve in India is considered to be the most well-known valve and they have high market value as well. They play a role in isolating the flow of liquid or gasses. They have an elastomer-lined wedge. In general, they are brought to use for supplying drinking water, wastewater, etc.

Our name of FMC stands out as one of the most superior companies in terms of valve manufacturing. Having based in Chennai we have successfully paved the way for Greater development and our clients are quite happy with our high-quality products. Our versatility is one of the main reasons for people to give preference to us over any other valve manufacturing company.

We have experienced professionals who looked into several aspects with much dedication. Our services include manufacturing resilient seat butterfly valves, Double Flanged Butterfly Valves, Ball valves, etc. For further details please contact us on our official website.

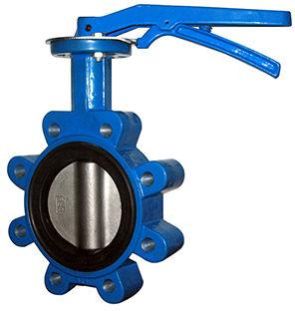

Butterfly Valve, sizes 2″ through 48″ ANSI 150, 2″-48″ ANSI 300, 3″-24″ Suitable for high temperature, high pressure, fire, corrosion and other harsh conditions of use and applied to use in petroleum, natural gas, chemical, refining, energy and power, ultra-low temperature for the process off site and the role of regulating valve.

Design Details

• Design, Mfg. Std. API 609
• Face To Face Dimension : API 609 (category B) / ANSI B16.10
• Testing Standard : API 598 / API 607 / BS 6755 Part I & Part II
• Top Flange ISO 5211.2 (Provided On Bracket)
• Size Range 80 NB To 600 NB
• Operating Temperature – 25° C — +200° C. (depending On MOC)
• Pressure Rating : ANSI Class 150 PN10/PN16
• Flange Standard ANSI 150 RF As Per ANSI B 16.5
• Body Type Wafer, Wafer Lugged (with Thru Or Tapped Holes)
• Disc Type : Double Eccentric
• Seat Type Soft Seat / Metal Seat
• Seat Leakage : Class VI (As Per ANSI / FCI 70-2)
• Flow Direction : Shaft Side To Down Stream
• Body Matl. : WCB / CF8 / CF8M / CF3 / CF3M / CK20
• Disc Matl. : WCB / CF8 / CF8M / CF3 / CF3M / CK20
• Seat Matl : PTFE, PEEK Others On Request
• Shaft Matl AISI 410 / SS 316 SH / 17-4PH
• Standard Pressed Hand Lever 80 NB To 200 NB
• Gear Boxes 250 NB To 600 NB (Optional On Smaller Sizes)
• Operation Actuator (Elect. / Pneumatic) available for entire range.

Features

• FMC- features removable Shaft/Disc for ease of repair, Spline Drive Shaft to Disc Connection
• One-Piece shaft design is Blow-Out Proof per ATEX.
• Patented Seat Retainer Ring attaches without bolts allowing complete uninterrupted seal face.
• Seats are available in PTFE, Graphite PTFE and Metal.
• GRTFE feature Hard Chrome Plated Disc Edge and Shaft for extraordinary service life.
• Standard material is A216 WCBA351 CF8A351 CF8M, Duplex and Super Duplex SS
• FMC- offers Bubble Tight Bi-Directional Seating.

Body

Precision cast bodies in virtually any alloy allow customers to utilize proper materials for virtually any application. Castings conform to all applicable ASME codes. Certified independent testing can be performed when requested or required such as RT and PT. Bodies are available in Wafer, Lug, Double Flanges .

Disc

FMC is designed to have minimal deflection and movement under pressure which reduces torque and improves cycle life. The discs tapered edge and offset shaft journal generates a “cram” motion allowing for a release from the seat within the first few degrees of opening.

Shaft

Our hardened 17-4 one piece design provides shaft strength and integrity under the most severe conditions. Other shaft materials are available depending upon application.

Seat

OUR seat is machined to lock between the body and retention ring but is allowed to move under pressure. This allows us to utilize solid seats giving maximum disc edge coverage, high cycle life and very low torque without the requirement for rubber O-ring energizers or metal back up support.

Gland

Our recessed gland packing eliminates the requirement for mounting kit and reduces overall package height. Our cup and cone design gland flange and packing compression guide allows an even compression of packing even if field adjustments are made incorrectly.

Extended Neck

Bonnet to flange clearance is a minimum of 2” allowing for piping insulation on all sizes of valves.

Seat Retention Ring

Our highly engineered retainer plate assures customer of proper seat stability and allows for full rated bi-directional, dead end service. The HP series seat retention ring conforms to the latest revisions of API 609 accommodating spiral wound gasket sealing elements to fall outside the bolting area.

Bonnet

Allows for direct mounting of all types of actuation. Standard drilling conforms to Kv industrial standards. ISO drilling is also available upon request.

Packing

Multi layered “cup and cone” PTFE packing allows for even compression against shaft and shaft journal area providing a positive seal even under high cycles. Multi layered graphite packing is available for metal seated and fire safe valves.

Blowout Proof Shaft Retention

Engineered to be one of the safest valves in the market our shaft retention system meets API requirements. Shaft retention system allows the gland flange and follower to slide up and down a machined recessed portion of the shaft. If a shaft were to shear our system prevents hydraulic force from projecting the shaft keeping it safely retained above the packing.

Bearing

• Full length upper and lower bearing materials are constructed of 316 S.S. impregnated with either PTFE or Graphite depending on Service conditions.
• Pressure Rating ANSI 150 – 285 PSI ANSI 300 – 740 PSI ANSI 600 – 1440 PSI
• Testing all valves are 100% tested per API 598 and documented. Standard Testing reports and MTR’s can be supplied at any time at no charge. Customized testing can also be performed based on customer’s requirements. Additional materials are available. Contact FMC.

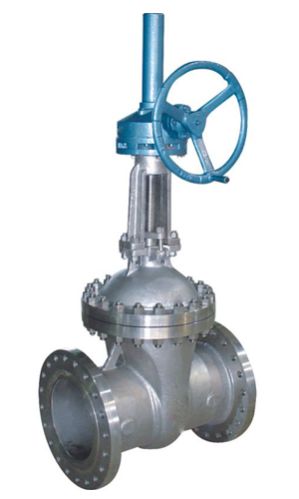

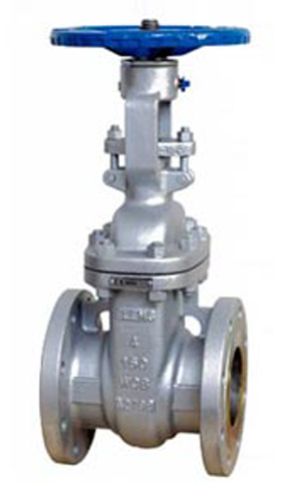

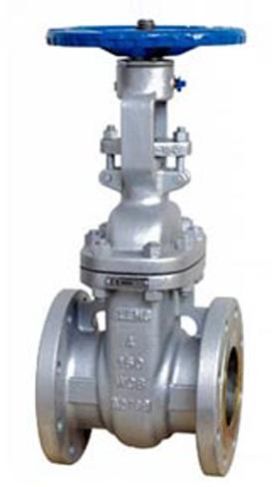

Features

Body: Body is cast to provide liberal strength to meet operating conditions and to permit unobstructed flow. Turbulence, erosion and pressure drop are minimized. Flanged End-FMC cast steel gate valves are available in flanged end and butt weld ends. All flanged and butt welding end valves are designed to conform to ASME B16.5 and ASME B16.34 standards.

Integral Yoke & Bonnet: Some designs incorporate a two-piece bonnet and yoke. All bonnet assemblies are cast and finished to the same exacting tolerances as the bodies for accurate alignment of stems and ease of sealing. Bonnet joint varies from flat face gasket-joint to ring-type bonnet joint, depending on class.

Seat Rings: Seat rings are seal welded to eliminate leak path behind rings and for long trouble-free service. The surfaces are precision ground to fit accurately with the disc.

Disc: One piece flexible disc provides accurate alignment of mating seating surfaces so the valve can absorb piping strains without leakage. Also, it avoids any tendency to stick in the seated position.

Stem: The tee-head disc-stem connection prevents lateral strain on the stem for smooth, easy operation. Accurately cut threads engage the yoke sleeve for positive control of disc position.

Packing : Packing contains corrosion inhibitor to avoid stem pitting. Stuffing box is deep, assuring long packing life.

Gland : Gland is a two-piece ball-type which exerts even pressure on the packing without binding the stem.

Handwheel: FMC gate valves can also be supplied with gear or motor operators.Hydraulic Grease Fitting: Hydraulic grease fitting provides for lubrication of yoke sleeve bearing surfaces (not shown). FMC gate valves offer the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims. NOTE: FMC recommends the use of gear assistance for certain multi-turn

Features

Body: Body is cast with heavy sections reinforced at points subjected to the greatest stress. Valves are available in both flanged and butt welding ends. All conform to ASME specifications.

Bonnet: All bonnet assemblies are cast and finished to the same exacting tolerances as the bodies for accurate alignment of stems and ease of sealing. Bonnet joint varies from flat face gasket-joint to ring-type bonnet joint, depending on class.

Seat Rings: Seat rings are seal welded to eliminate leak path behind rings and for long trouble-free service. The surfaces are precision ground to fit accurately with the disc.

Disc Stem Nut: Disc Stem Ring connects the disc to the stem, permitting the disc to swivel and aid in securing tight seating for trouble-free service.

Stem: Stem has long engagement with yoke bushing for accurate seating.

Packing: Packing contains corrosion inhibitor to avoid stem pitting. Stuffing box is deep, assuring long packing life.

Gland: Gland is a two-piece, ball-type which exerts even pressure on the packing without binding the stem.

Gland Eye Bolts : Eye bolts are securely fastened to the bonnet yet swing away to permit easy access to the stuffing box.

Bonnet Gasket : Bonnet gasket provides a positive seal against leakage. Class 150 and 300 valves have a male/female bonnet joint. A ring-type gasket is employed in Class 600.

Valve Design Details

• Design BS :1868 /ANSI B16.34 /API 6D
• Face to Face - ANSI B 16.10
• Flange - ANSI B 16.5 R.F
• Testing BS : 6755 PART -1 / BS:5146

Swing check valves are used to prevent reversal of flow in horizontal pipe lines.FMC does not recommend the use of swing check valves in vertical pipelines, however when using this style of valve in a vertical application the valve must be installed for upward flow only.

Recommended piping practice dictates that check valves be installed with a minimum of 10-15 pipe diameters distance between the check valve and any adjacent flange fitting or pump, otherwise flow fluctuation can result in damage to the valve or piping.

Features

• There is no tendency for the seating surfaces of swing check valves to gall or score, because the disc meets the flat seat squarely without rubbing contact upon closing.
• FMC cast steel swing check valves are internally hung design and cannot be supplied with outside lever and weight features. This eliminates additional possible leak paths
• Body and cover joint: Accurately machined, fully-enclosed gasket.

Valve Design Details

• Design BS :1868 /ANSI B16.34 /API 6D
• Face to Face ANSI B 16.10
• FLange ANSI B 16.5 R.F
• TestingBS : 6755 PART -1 / BS:5146

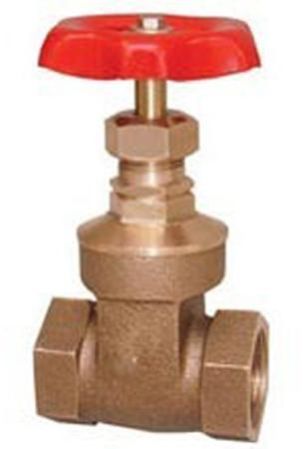

We offer an exotic range of Gun Metal Gate Valve that are used in different types of areas. Designed as per the industry standards, our range is manufactured using high grade material that assures its long service life & durability. We offer these ranges at market attractive selling price ranges.

Incorporated with modern facilities, we manufacture a wide range of Bronze Globe Valves. Manufactured as per industrial standards using supreme quality of raw materials and innovative technology, these valves are demanded due to their dimensional accuracy, easy usage and robust construction.

Wafer Type Check Valve is generally marked with the presence of an external spring. They have a slim design and do not clog often. They are designed in such a unique way that they turn out to be of great use for the debris. For almost all kinds of industrial applications, wafer-type check valves are used largely.

They ensure the proper flow of liquid and gases in a particular direction. Therefore it is important to make sure that a wafer type check valve is installed near a pump. FMC is a prestigious valve manufacturing company which aims at delivering quality goods to our esteemed clients.

We are a Chennai-based company and our work and efficiency have impressed a lot of people lately. In recent times we have developed a lot and our services have expanded. We are superior suppliers of resilient seat butterfly valves, Double Flanged Butterfly Valves, Ball valves, etc. Not only that you are also increased in the food industry, electronic industry, paper mills work, etc.

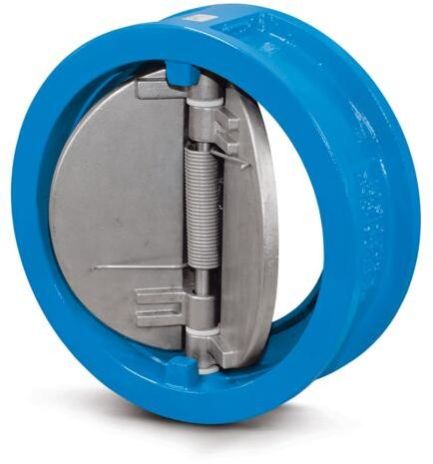

Incorporated in Chennai, Fluid Machine Control is an experienced and rising company as a Dual Plate Check Valve supplier in India across the country. Our company is engaged as manufacturer, exporter and supplier of comprehensive flow management products and services.

We are providing Dual Plate Check Valves in various materials like WCB, CF8, CF8M, CF3M, etc as per the request or demand of our clients at cost-effective rates. Our products are versatile, durable, structurally sound and user friendly. We offer Dual Plate Check Valves inefficient standard design and provide for trouble-free operation. Our company also offer 24/7 customer assistance in case of our product related queries.

Based in Chennai, we also offer various deals and discounts on instant and advanced orders of Dual Plate Check Valves. For more information on our Dual Plate Check Valves, you can write to us or call us on the number given on our website.
