There are various types of Self Actuating Type Pressure Reducing Va. upon the working Pressures, Flow Rates and Fluids.Self Acting, Pilot & Piston operated Reducing Valves are more Pressure Reduction of STEAM in all types of industries. The Valve Spring Balance principal. The Downstream Pressure is Sense Diaphragm Which is balanced by the Spring Tension. Increasing sp. Increases Outlet Pressure and Vice Versa.

Deluge Systems are intended to deliver large quantities of water over a large area in a relatively short period of time. TheFLOW TEK Deluge Valve is UL approvedto 175 psi (12 bar) in sizes 3", 4", 6", (80, 100, 150, MM ). The FLOW AGE deluge Valve is compact, lightweight, and is provided with a preassembled trim - all of which minimize the installation time and make it simple and easy. The FLOW TEK Valve opens fast, yet smoothly, preventing water hammer. The FLOW TEK Valve design prevents false tripping and it can be reset by a thumb-activated knob.

Local Resetting- Once the deluge valve operates, it is latched in an open position.

Remote Resetting- The FLOW TEK Deluge Valve can be remotely reset.

Hydraulic Actuation (WET PILOT TRIM)

Wet pipe systems are the most common fire sprinkler system. A wet pipe system is one in which water is constantly maintained within the sprinkler piping. When a sprinkler activates this water is immediately discharged onto the fire.

Advantages to using a wet pipe fire sprinkler system include:

• System simplicity and reliability - Wet pipe sprinkler systems have the least number of components and therefore, the lowest number of items to malfunction. This produces unexcelled reliability which is important since sprinklers may be asked to sit in waiting for many years before they are needed. This simplicity aspect also becomes important in facilities where system maintenance may not be performed with the desired frequency.
• Relative low installation and maintenance expense - Due to their overall simplicity, wet pipe sprinklers require the least amount of installation time and capital. Maintenance cost savings are also realized since less service time is generally required compared to other system types. These savings become important when maintenance budgets are shrinking.
• Ease of modification - Wet pipe fire sprinkler systems are advantageous since modifications involve shutting down the water supply, draining pipes and making alterations. Following the work, the system is pressure tested and restored. Additional work for detection and special control equipment is avoided which again saves time and expense.
• Short term down time following a fire - Wet pipe sprinkler systems require the least amount of effort to restore. In most instances, sprinkler protection is reinstated by replacing the fused sprinklers and turning the water supply back on. Pre-action and dry-pipe systems may require additional effort to reset control equipment.

Disadvantages to using a wet pipe fire sprinkler system include:

• Wet pipe systems are not suited for sub-freezing environments.
• There may also be a concern where piping is subject to severe impact damage and could consequently leak.

Pneumatic Actuation (DRY PILOT TRIM)

A dry pipe sprinkler system is one in which pipes are filled with pressurized air or nitrogen, rather than water. This air holds a remote valve, known as a dry pipe valve, in a closed position. Located in a heated space, the dry-pipe valve prevents water from entering the pipe until a fire causes one or more sprinklers to operate. Once this happens, the air escapes and the dry pipe valve releases. Water then enters the pipe, flowing through open sprinklers onto the fire.

Advantages of using dry pipe fire sprinkler systems include:

• Dry pipe sprinkler systems provide automatic protection in spaces where freezing is possible. Typical dry pipe installations include unheated warehouses and attics, outside exposed loading docks and within commercial freezers. Many people view dry pipe sprinklers as advantageous for protection of collections and other water sensitive areas. This perceived benefit is due to a fear that a physically damaged wet pipe system will leak while dry pipe systems will not. In these situations, however, dry pipe systems will generally not offer any advantage over wet pipe systems. Should impact damage happen, there will only be a mild discharge delay, i.e. 1 minute, while air in the piping is released before water flow.

Disadvantages of using dry pipe fire sprinkler systems include:

• Increased complexity- Dry pipe systems require additional control equipment and air pressure supply components which increases system complexity. Without proper maintenance this equipment may be less reliable than a comparable wet pipe system.

• Higher installation and maintenance costs- The added complexity impacts the overall dry-pipe installation cost. This complexity also increases maintenance expenditure, primarily due to added service labor costs.

• Lower design flexibility- There are strict requirements regarding the maximum permitted size (typically 750 gallons) of individual dry-pipe systems. These limitations may impact the ability of an owner to make system additions.

• Increased fire response time- Up to 60 seconds may pass from the time a sprinkler opens until water is discharged onto the fire. This will delay fire extinguishing actions, which may produce increased content damage.

• Increased corrosion potential- Following operation, dry-pipe sprinkler systems must be completely drained and dried. Otherwise remaining water may cause pipe corrosion and premature failure. This is not a problem with wet pipe systems where water is constantly maintained in piping. With the exception of unheated building spaces and freezer rooms, dry pipe systems do not offer any significant advantages over wet pipe systems.

Electric Actuation

VALVE WILL BE OPERATED BY SOLENOID VALVE, WHICH WILL BE OPERATED BY ANY POWER SUPPLY 220 V , 230 V , 24 V DC, ETC

Pneu-Electric Actuation

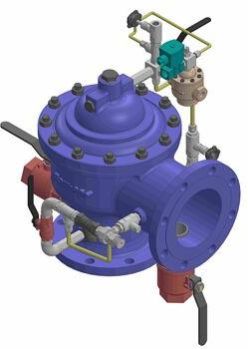

ALSO SOLENOID VALVE WILL BE CONNECTED IN PNUEMATIC CONNECTIONDeluge Valve Model FTV-ACV-200 (ANGLE TYPE) 90 Degree

• Fast application of water in spray, pre-action and foam system
• Size: 50, 80, 100, 150 & 200 mm (2", 3", 4", 6" & 8")
• Cast Iron , CAST STEEL , and Alloy Steel construction
• Maximum service pressure 12 bar (175 psi)
• Vertical inlet and Horizontal outlet
• SS 304 , SS 316, Bronze Seat
• Flanged connection dimensions to ANSI B 16.5
• No latch, no piston, no hinges
• Simple yet rugged
• Diaphragm operated with rubber to metal drip-tight positive sealing
• Reset without any tools
• Easily trimmed for actuation by manual, remote solenoid valve & with wet or dry pilot
• Internal and external surfaces epoxy coated for extra protection
• The Deluge Valves are also available as pre-assembled cabinet/skid mounted, upon request

With the exception of unheated building spaces and freezer rooms, dry pipe systems do not offer any significant advantages over wet pipe systems.

Gate Valves OS & Y Type, Rising Spindle, Construction are the most commonly used ON - OFF Valve in the Industries today. This Bi-Directional ON-OFF Gate Valves are widely used where the minimum Pressure Drop is required.Gate Valves are Tight Sealing easy Operation & Isolation Valve widely used for Steam, Liquid & Gaseous Fluid over a wide Range of Line Pressure & Temp.

Flow-TekACV Solenoid Control Valve with Hydraulic Check Feature is designed to open fully or close drip-tight as commanded by a 3-Way Solenoid Pilot, and close drip-tight when downstream pressure becomes greater than upstream pressure. The solenoid may be activated by a pressure switch, level probe, or any other electrical on-off device.
The valve also has provisions for manual operation in the event of power outage. Engaging the Solenoid Manual operator simulates power to the solenoid, manually controlling the main valve. Disengaging the Solenoid Manual operator returns the valve to electrical on-off service.

Flow-TekThe Float Valve is a non-modulating either fully open or fully closed valve which controls the level in a reservoir or tank. The valve closes drip tight at high liquid level point and opens fully when the liquid level reaches a low preset point.

Flow-TekSurge Anticipator Valve is indispensable for protecting pumps, pumping equipment and all applicable pipelines from dangerous pressure surges caused by rapid changes of flow velocity within a pipeline.
When using this valve, pumping systems are started and stopped gradually preventing harmful surges from occurring. Pressure Relief & Surge Anticipator Valve

Flow-TekThis is an electrically actuated, hydraulically operated multi-function control valve.
Used extensively in loading terminal automation systems in refineries and storage tanks of petroleum products for effective and accurate filling of tankers and railway wagons. It has two solenoid valves, receiving signal from batch controllers to position the valve for low flow/medium flow / high flow conditions as programmed.

"Flow-Tek" FT-LPRV- Gas Back Pressure Regulator is the ideal valve for low-pressure gas regulation. The Mark 508 works in conjugation with the in a low-pressure tank blanketing valve system.LPRV can be used to vent gas from the tank to prevent the blanketing pressure from rising to a level that could damage the tank while maintaining a small, constant flow to keep the blanket fresh. During filling, It opens to allow gas to escape as the vapor space in the tank grows smaller. To size properly, find the rate of fill so that a regulator can be chosen based on it's ability to relieve the required amount of gas while sustaining desired blanketing pressure. The Mark 508 will also work well in any other type of low back-pressure gas application.

APPLICABLE STANDARD

• Design Standard: MFG. STANDARD
• Face to Face: MFG .STANDARD
• End Connection: Flanged End to suit ANSI / DIN / BS / JIS / IS etc.
• Testing Standard: API 598 / CONTROL VALVE ANSI-FCI-70-2-2006 STD

Our Automatic Control Valves regulates the flow or pressure of different fluids, efficiently. These Automatic Valves are preferred owing to their high strength, reliability and smooth functioning.

Flow-Tek Valves & Controls A leading Manufacturer of Specialized Control Valves offers a self Actuating Pilot Operated Automatic Control Valve specially design for Liquid Service, Also called as a 'Multifunction' Control Valve. These type of Valves are designed to provide different combination of Pilot Arrangements that can be used for various types of functions like : OnOff, Pressure Reducing, Pressure Relief, Flow Control, Pump Bypass, Non Return & many more. Flow-Tek Liquid Controls Valves confirms the seat leakage in Class VI of ANSI B 16.104 & available up to size of 16" in the flanged end to ANSI Class 150 & 300 with temperature range up to 220' C maximum.

There are various types of Self Actuating Type Pressure Reducing Va. upon the working Pressures, Flow Rates and Fluids. PRV- 1001 : Self Acting, Pilot & Piston operated Reducing Valves are more Pressure Reduction of STEAM in all types of industries. The Valve Spring Balance principal. The Downstream Pressure is Sense Diaphragm Which is balanced by the Spring Tension. Increasing sp. Increases Outlet Pressure and Vice Versa.

Flow-Tek Gate Valves OS & Y Type, Rising Spindle, Construction are the most commonly used ON - OFF Valve in the Industries today. This Bi-Directional ON-OFF Gate Valves are widely used where the minimum Pressure Drop is required. Our Gate Valves are Tight Sealing easy Operation & Isolation Valve widely used for Steam, Liquid & Gaseous Fluid over a wide Range of Line Pressure & Temp. These valves are normally hand operated but are also provided with Gear Unit & Electrical Actuator (Motorized) operated for Remote Operation. We offer Gate valve with special packing suitable for thermic fluid temperature up to 425 C.

Safety Valves are designed and manufactured to meet the requirement of all a variety of applications as per API 526 and API 520. They also conforms to Standard VIII and the design requirement of Indian Boiler Regulations, they are of Full Lift type direct spring loaded, with a top guide, The full nozzle has the eliminating distortion of the seating surface, as body strain is not transmitted The Nozzle is made from a corrosion resistance stainless Steel material, When closed position, the fluid does not come in contact with the valve Body an therefore only subject to the outlet pressure which is very much lower pressure.

Flow-TekPressure Relief/Sustaining Valve is a hydraulically operated, diaphragm actuated control valve that can fulfill either of two separate functions.
When installed in-line, it sustains minimum pre-set, upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. When installed as a circulation valve, it relieves excessive line pressure when above maximum pre-set.
