Excella Electronis

Ghatkopar, Mumbai, Maharashtra

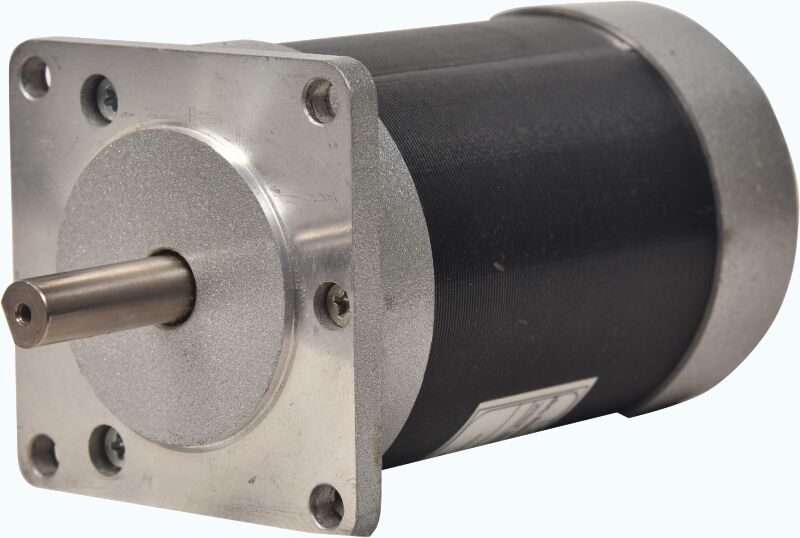

BLDC Motors are superior over brushed DC motors in many ways, such as ability to operate High speeds, High Efficiency, and better heat dissipation. We have constructed robust & rugged designed for OEM to end user application. We have range up to 2 K Watt.

• Power : 25Watt to 2KW.
• Voltage : 12 - 110VDC.
• RPM : up to 6000 rpm.

A rotary Encoder, Also called a shaft Encoder, is an Electro mechanical device that converts the angular position or motion of a Shaft or Axle to an Analogue or Digital Code. The output of incremental encoders provides specific pulses for the encoder rotation and these pulses may be one or two line pulses, Those lines are typically designated A & B channels and the offset phasing of the channels, which is also known as the quadratue, helps determine rotation. Incremental Encoders are designed for accurately measuring speed & position of rotating shaft in automation, distance detection, Machine tools, Packaging, pharmaceuticals, Textile inds etc.

A hollow shaft encoder is one of the most common shaft designs because of its versatility. Instead of having a solid bar that has to match the motor, a hollow shaft encoder fits over the motor shaft and is then clamped in place. It's held in position by a flexible tether. This means that a hollow shaft encoder does not have to be perfectly sized to fit the motor and it does not require any external components which increase its size. A hollow shaft encoder also has a more forgiving installation; the clamp and the tether can be used to adjust the position and to absorb shocks and vibration that could cause misalignment.

Description:

Stepper Motor is a kind of electrical pulses into angular displacment of the implementing agencies, when stepper driver receives a pulse signal, it drives stepper motor rotate in the direction set by fix point of view (and the step angle) the number of pulses to control the angular displacement through the control, to achieve the purpose of accurate positioning, Also can control the pulse frequency to control motor rotation speed & acceleration, so as to achieve the purpose of speed.

Application:

• Plastic Bag Making & labeling machines
• Orientation For Tube Filling & Sealing Machine
• Robotic Pick And Place Applications
• Rotary / Linear Indexer, Cut To Length Applications
• X-Y Table
• Engraving machines, Embroidery Machines
• Print Registration For Label Printing Machine
• Hot Foil Stamping, Machine Tools, Special Purpose Machines
• Horizontal Form Fill Seal Packing Machine

• Landing call buzzer output for attendant mode.
• Fireman operation.
• ARD possible.
• 110VAC interlocking safety circuit.
• Slow L/S, Terminal(direction) L/S & Final L/S facility.

• Very Simple Interface and easy and quick to Install.
• Microprocessor Based Sinewave Output.
• Use Sealed Maintainance free(SMF) Battery as per Motor Capacity.
• ARD Facility V3F Controller, Gearless Motor & Most of Renowned Controller.
• Cooling System-Naturakl Air Cooling.
• Suitable for Auto Door & Manual Door Lift.
• Speeds During Rescue Run 4 to 8Hz.
• Max. Rescue runs per Day- Approx 7 time.
• Rescue Operation for Total Power Failure or Single Phasing.
• Protection & Setting for Under voltage & Over voltage.
• Automatic Shut down after Complete Rescue Journey & to prevent unnecessary battery usage.
• Automatic Battery Charging with Float Charger.
• MCB Protection on DC Path.
