The GPS L1 Active Magnetic Antenna is designed for optimal reception of GPS signals at 1575.42 MHz. This antenna is equipped with a 3-meter RG174 cable and an SMA male straight connector, making it suitable for a variety of applications.

Key Features:

• Frequency: Operates at 1575.42 MHz, specifically tuned for GPS L1 signals.
• Antenna Type: Active magnetic antenna, providing enhanced signal amplification and improved reception capabilities.
• Cable: Comes with a 3-meter RG174 cable, offering flexibility in installation while minimizing signal loss.
• Connector: Features an SMA (M) straight connector, ensuring a secure and reliable connection to compatible devices.
• Mounting: Magnetic base allows for easy installation on metal surfaces, providing stability and convenience.
• Applications: Ideal for GPS tracking, navigation systems, automotive applications, and any project requiring precise location data.

This antenna is designed to deliver reliable performance in diverse environments, making it an excellent choice for both professional and hobbyist applications.

The SMB (M) Straight PCB Mount Connector is a type of coaxial connector designed for use in printed circuit board (PCB) applications. Heres a detailed description of its features and functionality:

• Connector Type: This is an SMB (SubMiniature version B) connector with a male (M) straight configuration. SMB connectors are widely used in RF (Radio Frequency) applications for both low and medium-frequency ranges. The male connector refers to the pin that is inserted into the corresponding female connector.

• PCB Mount: The connector is designed for PCB mounting, meaning it is intended to be soldered onto the surface of a PCB. This makes it ideal for integrating with circuit boards in devices such as communication equipment, RF systems, and other electronic systems that require a compact connection.

• Straight Orientation: The straight configuration refers to the alignment of the connector pins, which extends perpendicularly from the board, as opposed to right-angle connectors. This configuration is commonly used in applications where space permits a direct, unobstructed connection.

• Size and Compactness: The SMB connector is known for its small size, making it suitable for applications where space is limited. It offers a reliable connection while maintaining a minimal footprint on the circuit board.

• Frequency Range: SMB connectors are typically used in systems operating at frequencies from 0 to 4 GHz, depending on the specific design and application. They are commonly used in RF communication systems, including wireless devices, GPS, and other radio systems.

• Durability and Reliability: The connector is built to be robust, offering good durability and long-term performance in a variety of environments. It is designed to withstand moderate mechanical stresses and environmental factors while maintaining a reliable electrical connection.

• Applications: The SMB (M) Straight PCB Mount Connector is often used in applications such as:

  • Wireless communication systems
  • GPS devices
  • Cellular systems
  • Networking equipment
  • RF testing equipment
  • Medical devices with wireless communication

In summary, the SMB (M) Straight PCB Mount Connector is a compact, reliable, and efficient connector used for connecting RF components to circuit boards in a variety of electronic systems. Its small form factor and ease of integration make it an excellent choice for high-frequency applications where space and performance are crucial.

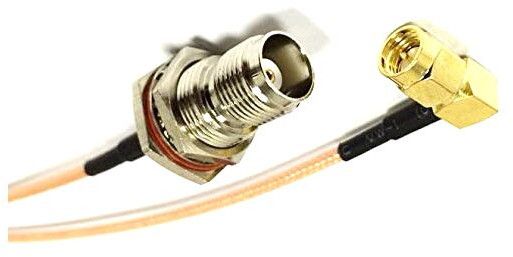

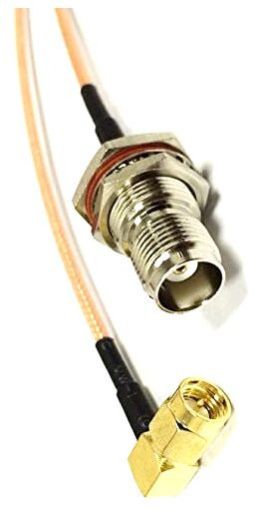

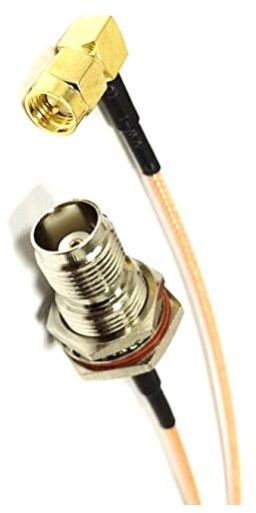

TNC (F) St. B/H Connector With RG316 Cable ( L-1Mtr ) + SMA (M) R/A Connector:

This configuration includes:

• TNC (F) St. B/H Connector: A female TNC connector with a straight bulkhead (panel mount) configuration. TNC connectors are commonly used in RF applications requiring a threaded coupling mechanism for secure connections.

• RG316 Cable (L-1Mtr): A 1-meter length of RG316 coaxial cable. RG316 is a type of flexible coaxial cable suitable for high-frequency applications.

• SMA (M) R/A Connector: A male SMA connector with a right-angle (R/A) orientation. SMA connectors are widely used in RF and microwave applications for their durability and performance.

This assembly is typically used to establish a reliable RF connection over a distance of 1 meter, with the TNC connector providing a secure bulkhead mount and the SMA connector offering a right-angle option for space-constrained installations.

The SMA(F) to SMA(M) RF Adapter is a high-quality connector designed to provide a secure and reliable connection between two devices with different SMA connectors. Here's a detailed description:

• Connector Type: The adapter features a SMA female (F) connector on one end and a SMA male (M) connector on the other.

  • The SMA female end has a threaded outer connection with a hole in the center for the male pin to fit into.
  • The SMA male end has a threaded outer connection with a central pin for a secure connection with the female end.

• Usage: This adapter is used to connect two RF devices with different SMA connectors, such as antennas, routers, or communication equipment. It ensures proper signal transmission and minimal interference.

• Material and Build: Typically made of brass with gold or nickel plating to ensure excellent conductivity and durability. It may also feature a PTFE insulator for optimal performance, particularly in high-frequency applications.

• Frequency Range: The adapter is designed to support RF signals over a wide frequency range, typically from DC to 18 GHz, depending on the specific design.

• Application: Commonly used in RF applications such as:

  • Antenna connections
  • Testing equipment
  • Communication devices
  • Laboratory setups
  • Networking and signal transmission devices

• Size and Mounting: Compact and lightweight, making it easy to use in tight spaces. Its threaded design allows for a secure connection without worrying about accidental disconnections.

This SMA(F) to SMA(M) RF Adapter is an essential tool for anyone working with RF systems, offering an easy solution for connecting devices with differing SMA connectors.

The MMCX (F) Solder Wire PCB Mount Connector is a type of miniature coaxial connector designed for use with printed circuit boards (PCBs) and ideal for applications requiring compact, reliable, and efficient connections in RF (Radio Frequency) systems. Here's a detailed description of its features:

• Connector Type: This is an MMCX (Micro-Miniature Coaxial) connector with a female (F) configuration. MMCX connectors are small-sized coaxial connectors commonly used in RF applications, including wireless communications, antennas, and other electronics. The female connector design means it has a receptacle that accepts the male MMCX plug.

• Solder Wire Mount: This connector features a solder wire configuration, meaning that it is designed to be soldered directly onto a printed circuit board (PCB) by the user. The solder terminals allow for a secure electrical connection between the connector and the PCB, ensuring durability and reliability.

• PCB Mount: The connector is specifically made for PCB mounting, allowing it to be easily integrated into the design of a circuit board. It is mounted directly onto the board, making it suitable for compact and space-constrained applications.

• Compact Design: As an MMCX connector, this connector is notably smaller than many other RF connectors (such as SMA or SMB), making it ideal for applications where space is limited. Its small size and light weight make it particularly useful in portable devices and systems with high-density circuit boards.

• Frequency Range: MMCX connectors are generally used in high-frequency applications, and they typically support frequencies from up to 6 GHz, depending on the specific connector design. This makes them well-suited for wireless communication systems, GPS devices, and other RF-based technologies.

• Durability and Mechanical Reliability: MMCX connectors are known for their robust design, offering good mechanical reliability and durability. The connectors are often designed to handle up to several thousand mating cycles, making them suitable for repeated connections and disconnections in portable or test equipment.

• Applications: The MMCX (F) Solder Wire PCB Mount Connector is ideal for use in various electronic applications, such as:

  • Wireless communication devices (Wi-Fi, Bluetooth)
  • GPS and antenna systems
  • Portable electronics
  • Medical devices (e.g., wearable devices)
  • RF testing and instrumentation
  • Aerospace and automotive systems

• Assembly: The connector is designed for easy assembly on the PCB. Users typically solder the connector's terminals onto the PCB's pads, ensuring a secure and stable connection for RF signals.

In summary, the MMCX (F) Solder Wire PCB Mount Connector is a miniature, high-frequency coaxial connector that is ideal for compact, space-constrained applications. Its solder wire mount design makes it easy to integrate with PCBs, and its reliable performance at high frequencies makes it suitable for a wide range of RF and wireless communication systems.

The MMCX (M) R/A to UFL Connector with 1.13mm RF Coaxial Black Cable (L-10 CM) is a versatile and compact solution for connecting RF devices. This high-quality cable assembly is perfect for applications where space is limited, providing reliable signal transmission in various settings.

• Connector Type: MMCX (M) Right Angle to UFL connector, allowing for flexible positioning in tight spaces.
• Cable Diameter: 1.13mm RF coaxial cable, ensuring minimal loss while maintaining flexibility.
• Length: 10 cm, ideal for short-distance connections.
• Durable Construction: The black cable is designed for robustness, making it suitable for both indoor and outdoor use.
• Versatile Applications: Compatible with various RF modules, antennas, and devices.

• Wireless communication systems
• IoT devices
• Antenna connections
• RF testing and measurement

This MMCX to UFL cable assembly is an excellent choice for enhancing your RF connectivity while saving space in your projects.

The SMA (Female) Bulkhead Connector for 1.13mm RF Cable is a high-performance connector designed for use in RF (Radio Frequency) applications. This connector allows for a secure and reliable connection to RF cables, specifically those with a 1.13mm diameter, commonly used for high-frequency signal transmission in various electronic systems.

• Connector Type: SMA Female Bulkhead
• Application: Designed for use with 1.13mm diameter coaxial RF cables.
• Gender: Female (receptacle)
• Mounting Type: Bulkhead (panel-mounted)
• Polarity: Standard (Non-Reverse Polarity)

1. Connector Design:

   • The SMA Female Bulkhead connector is designed to provide a reliable connection and can be mounted on a panel or chassis. This makes it ideal for applications where the cable needs to be accessed from outside a housing or enclosure.

2. Compatible Cable Size:

   • This connector is specifically designed to work with 1.13mm RF cables (typically a small, flexible coaxial cable used for high-frequency applications). The precise fit ensures minimal signal loss and optimal performance.

3. Material and Construction:

   • Body Material: Typically brass, which ensures durability and reliable signal transmission.
   • Plating: Gold plating for enhanced conductivity, corrosion resistance, and long-term reliability.

4. Mounting Type:

   • Bulkhead Mount: The connector is designed for easy integration into panels or enclosures. The bulkhead mount allows for a secure, stable connection while also providing a clean, flush appearance on the exterior.

5. Applications:

   • RF Equipment: Commonly used in wireless communication systems, RF test equipment, GPS systems, and antennas.
   • Enclosures & Panels: Ideal for situations where a cable must pass through a panel or other housing and be securely fastened.

6. Frequency Range:

   • This connector is designed to perform optimally at high frequencies (up to several GHz), making it suitable for advanced RF communication systems and precise applications that require low signal loss and high fidelity.

The SMA Female Bulkhead Connector for 1.13mm RF Cable is a compact, reliable, and highly efficient connector designed for use in RF systems, offering ease of integration and high performance. Whether used for panel-mounted RF systems or precise communication applications, this connector ensures a stable and durable connection, making it ideal for both prototyping and long-term use in professional applications.

The 866 MHz 5 dBi rubber duck antenna you described is very similar to the 868 MHz antenna. Both operate in the same frequency band, have a 5 dBi gain, and feature a rubber duck design with a movable connector.

Here's a breakdown of the key features:

• Frequency: 866 MHz
• Gain: 5 dBi
• Type: Rubber duck antenna
• Connector: SMA male (movable)

Key differences:

• Frequency: While 868 MHz is more common, 866 MHz is still used in some regions or applications.
• Connector: The SMA male connector is a standard type used in many wireless devices. The movable feature allows for flexibility in positioning and installation.

Applications:

Both 866 MHz and 868 MHz antennas are suitable for a wide range of applications, including:

• IoT devices
• Wireless sensors
• Remote controls
• Amateur radio
• Wireless security systems

Considerations:

• Antenna orientation: Proper orientation is crucial for optimal performance. Experiment with different angles to find the best position for your application.
• Environmental factors: Be aware of factors that may affect antenna performance, such as obstructions, interference, and weather conditions.
• Regulatory compliance: Ensure that the antenna complies with relevant regulatory standards for wireless devices in the 866 MHz band.

The BNC (Bayonet Neill-Concelman) male connector for RG58 cable is a type of coaxial cable connector commonly used for connecting coaxial cables in various RF (radio frequency) applications. Here's a detailed description:

**1. Purpose:

• Used to connect RG58 coaxial cables to other equipment or cables, typically in RF communication systems, networking, and video applications.

**2. Connector Type:

• BNC Male: Features a pin (center conductor) that fits into a corresponding BNC female connector.

**3. Cable Compatibility:

• Specifically designed for use with RG58 coaxial cables, which are characterized by their 50-ohm impedance and are commonly used in networking and communication applications.

**4. Design and Construction:

• Pin: The center conductor is a pin that makes contact with the center conductor of the RG58 cable.
• Body: Made from metal, often brass or stainless steel, which provides durability and ensures good signal integrity.
• Insulation: The connector usually includes an insulating material to ensure proper alignment and signal isolation.
• Shielding: Often incorporates a metal shield to protect against electromagnetic interference (EMI) and ensure signal integrity.

**5. Mounting Type:

• Bayonet Lock: Features a bayonet mount mechanism that ensures a secure connection through a simple twist-and-lock action. This design helps prevent accidental disconnections and provides a reliable and stable connection.

**6. Frequency Range:

• Typically supports a frequency range up to several GHz, making it suitable for various RF and high-frequency applications.

**7. Applications:

• Networking: Used in Ethernet over coaxial cables in older network setups.
• Video: Common in analog video applications, such as CCTV systems.
• Communication: Utilized in radio and other communication equipment.

Eteily have a wide range of best quality gold plated SMA Connectors for all youre applications. The connectors have a threaded outer coupling interface. It finds many applications for providing connectivity for RF assemblies within equipment where coaxial connections are required. It is often used for providing RF connectivity between boards, and many microwave components including filters, attenuators, mixers and oscillators, use SMA connectors.

The MCX (F) R/A Connector for RG316 Cable is a type of coaxial connector specifically designed for use with RG316 coaxial cables. Here's a detailed description of the component:

1. MCX (F) Connector:

   • MCX (F) refers to the Female MCX connector, where the "F" indicates the female gender of the connector (with a socket for receiving the male pin). The MCX (Micro Coaxial) connector is a small and compact type of RF connector that is widely used in various communication applications, including wireless systems, GPS, and mobile devices.
   • The MCX connector is commonly used for applications that require small-size connectors for higher-frequency signals. The small design makes it ideal for compact and portable electronic devices.

2. Right-Angle (R/A) Design:

   • The R/A (Right-Angle) design of the connector means the connector body is angled at 90 degrees, allowing for a more compact and flexible connection in tight spaces. This type of connector is often used when there is limited space for a straight connector, such as in compact circuit boards or devices where the cable needs to be routed around corners or confined areas.

3. Compatibility with RG316 Cable:

   • The RG316 cable is a type of coaxial cable commonly used in RF (radio frequency) applications. It is known for its flexibility and ability to handle high-frequency signals (up to 2.5 GHz). The RG316 cable is often used in wireless communication, GPS systems, and antenna connections.
   • This MCX (F) R/A connector is designed to fit RG316 cable, which typically has a 0.8mm inner conductor and an outer diameter of around 2.5mm. The connector is fitted onto the cable using a soldering process to ensure a secure and reliable connection.

4. Application:

   • The MCX (F) R/A connector is ideal for use in compact RF systems where space is limited. It can be used in:
     • Wireless communication devices (such as handheld radios, GPS systems, or IoT modules).
     • Embedded systems, mobile devices, and telecommunication equipment.
     • Antenna connections in devices like routers, modems, or other wireless communication modules.

• Space-saving design: The right-angle shape is perfect for confined spaces.
• Compact and lightweight: The MCX connector is small and light, making it ideal for portable and small electronic devices.
• Reliable connection: When paired with RG316 cable, the connector ensures a stable RF signal for reliable communication.

This MCX (F) R/A Connector for RG316 Cable is a robust and compact solution for connecting small wireless systems, GPS modules, antennas, and other RF-based components that require high-frequency signal transmission in a space-efficient manner.

The BNC (F) 4 Hole Panel Mount Connector is designed for secure and reliable connections in RF applications, specifically optimized for RG174 cable.

Key Features:

• Type: BNC (F) connector, providing a secure, push-and-twist coupling mechanism for quick connect/disconnect.
• Panel Mount Design: Features a 4-hole mounting configuration, allowing for easy installation and stable mounting on panels, enclosures, or equipment.
• Compatibility: Specifically designed for RG174 cable, ensuring optimal signal integrity and performance.
• Material: Constructed from durable materials to withstand environmental conditions and mechanical stress.
• Applications: Ideal for use in telecommunications, video, and data applications, making it suitable for both commercial and industrial environments.

This connector is perfect for applications requiring a compact and reliable RF connection, ensuring minimal signal loss and excellent durability.

The TNC (F) 4 Hole Panel Mount Connector for RG174 Cable is designed for secure, high-performance connections in a variety of RF applications. Its panel mount feature allows for easy installation on enclosures, panels, or chassis, making it ideal for both professional and DIY projects.

Key Features:

• Compatibility: Specifically designed for RG174 coaxial cable, ensuring excellent signal integrity and performance.
• Panel Mount Design: The 4-hole configuration allows for secure mounting on panels, providing stability and reducing strain on the cable.
• Durable Construction: Built with high-quality materials to withstand environmental factors and provide reliable connectivity.
• Impedance: Typically 50 ohms, suitable for a range of RF applications, including wireless communication and networking.
• Easy Installation: Features a straightforward mounting process with standard hardware, making it user-friendly.

Applications:

• Communication devices
• Antenna systems
• Test equipment
• Networking solutions

This TNC (F) panel mount connector is an essential component for achieving reliable and efficient RF connections in various setups.

The SMA (F) B/H Connector for 1.13mm RF Cable is designed for reliable and efficient RF signal transmission. Here are its key features:

1. Connector Type: SMA (F) connector is female, designed for use with SMA male connectors, ensuring a secure connection.

2. Compatibility: Specifically designed for 1.13mm RF coaxial cables, providing a snug fit and optimal performance.

3. High Frequency Performance: Suitable for applications operating up to 18 GHz, making it ideal for various RF communication tasks.

4. Robust Construction: Made from high-quality materials, offering durability and resistance to environmental factors, ensuring long-term reliability.

5. Easy Installation: Compact design allows for straightforward installation in various setups, whether for testing, prototyping, or permanent installations.

6. Versatile Applications: Commonly used in telecommunications, antenna systems, and RF testing equipment, supporting a wide range of electronic applications.

This SMA (F) B/H Connector is essential for anyone working with RF systems requiring a dependable connection for 1.13mm cables.

The SMA (F) BH St. connector for RG58 cable is a widely used RF connector designed for high-frequency applications. Heres a detailed description:

• Connector Type: SMA (F) (female) with a bulkhead mount (BH) configuration.
• Compatible Cable: Specifically designed for RG58 coaxial cable, which is commonly used in RF applications.
• Material: Typically made of brass with a nickel or gold plating for better conductivity and corrosion resistance.
• Impedance: 50 ohms, suitable for RF applications.

• Compact Design: The SMA connector is small and lightweight, making it ideal for space-constrained applications.
• Secure Connection: The bulkhead mount allows for a secure and stable connection, often used in panel or enclosure applications.
• Frequency Range: Suitable for frequencies up to 18 GHz, making it versatile for various RF systems.

• Telecommunications: Used in mobile and wireless communication systems.
• Antenna Connections: Commonly utilized for connecting antennas to transmitters and receivers.
• Test Equipment: Ideal for RF test and measurement equipment due to its reliable performance.

The SMA (Female) Bulkhead Connector is a high-quality, reliable connector designed for use with 1.13mm diameter RF cables. Its bulkhead design allows it to be mounted through a panel or enclosure, making it ideal for applications where a secure, externally accessible connection is needed.

Key Features:

• Connector Type: SMA (Female) - This connector type is known for its durability and precision in high-frequency applications, making it suitable for a wide range of RF and microwave communications.

• Bulkhead Design: The bulkhead (B/H) design allows for the connector to be mounted securely through a panel or enclosure. This is particularly useful in situations where the connector needs to be externally accessible while keeping the cable routed internally.

• Compatibility: Specifically designed to interface with 1.13mm diameter coaxial RF cables. The connector provides a reliable and stable connection for high-frequency signals.

• Material and Build: Constructed from high-quality materials, often including brass with gold plating or stainless steel, to ensure durability, conductivity, and resistance to corrosion.

Specifications:

• Connector Type: SMA (Female) Bulkhead
• Cable Type: Compatible with 1.13mm diameter RF coaxial cables
• Frequency Range: Suitable for high-frequency applications (typically up to several GHz)
• Impedance: 50 ohms
• Mounting Style: Bulkhead (B/H) - for mounting through panels or enclosures
• Body Material: Brass, stainless steel, or similar with gold plating or nickel finish
• Temperature Range: Typically -55C to +165C (check specific product datasheet for exact range)
• VSWR: Typically 1.3:1 across the operating frequency range



Benefits:

• Reliable Connection: Ensures a secure and stable connection for high-frequency signals, reducing signal loss and interference.
• Panel Mounting: The bulkhead design allows for easy mounting through a panel or enclosure, making it ideal for equipment where external connections are required.
• Durability: Made from robust materials to withstand harsh environments and extended use.
