Ercon Composites

Basni, Jodhpur, Rajasthan

ERCON FIBRE GLASS LADDERS & CAGE LADDERS - - SAFE - STRONG - NON CORROSIVE

FRP/ GRP Cage Ladders are used for climbing up/ Down theColumns and Towers in Chemical Plants, Cooling towers, DM water plants , Refineries, Petrochemical Plants, Power plants .SewagesEscape ladders

FEATURES
ERCON GRP Cage Ladders are made from all composite parts minimising metals thus minimising Corrosion. It is easy to assemble at site , the ladder is supplied in 3 type of components Ladder, Cage and stringers which are easily assembled at site using SS clamps and Hardware. The ladders can be supplied for any height requirement with intermediate extension couplers. The cage spaced approximately 1m to 1.5m, the clamps are to be put every 1.5m to 2m. Inside clear width 350mm Rung Spacing : 300mm Walk Through Tops made to order
ADVANTAGES
NON- CORROSIVE hence more safe than metal ladders STRONG suitable for 500Kg load at any rung ACID RESISTANCE good resistance to acids and corrosive chemicals available ( passes 100 days 10% Sulfuric Acid Resistance test) Easy to assemble quick assembly components for ease of assembly at site UV resistant Meets ASTM and IS tests for accelerated weathering, special coating available for 25 year UV life Fire Retardant special fire resistance grade Meets ASTM -E84, and UL 94 V0 Flammability test

ERCON Fibre Glass Ladders are very safe for High Tension Electrical maintenance. ERCON CLIMB SAFE LADDERS are manufactured from high strength Pultruded FRP Side Channels produced on a fully automatic plant. These channels have high insulating properties 25KVinch, high mechanical strength. The ladders have serrated antiskid fiberglass RungsSteps; hence ERCON ladders are 100% electrically safe and better than ladders using Aluminum rungs.

MEET SPECIFICATIONS ANSI-A14.5-92, Cl-7.10.1AND Cl-7.10.2 MEETS LOADS AS PER EN-131--140Kg IS4571-1977-Load test and sway test LIGHT WEIGHT AND SAFE FIBRE GLASS LADDERS ERCON Fibre Glass Ladders are very safe for High Tension Electrical maintenance. ERCON CLIMB SAFE LADDERS are manufactured from high strength Pultruded FRP Side Channels produced on a fully automatic plant. These channels have high insulating properties 25KV/inch, high mechanical strength. The ladders have serrated antiskid fiberglass Rungs/Steps; hence ERCON ladders are 100% electrically safe and better than ladders using Aluminum rungs.

TYPES OF FRP / GRP FIBERGLASS LADDERS

Wall support type single section FRP / GRP fiberglass ladder : 2m to 6m Wall support Type Extension FRP / GRP fiberglass Ladder : up to 12m Self Supporting A- Type FRP / GRP Ladder : 5ft to 18ft.

ERCON FIBRE GLASS STEP LADDERS

Complete Fibre Glass Ladders including 3 Steps Strong, Safe & LightWeight High Insulation & Corrosion ResistantHeavy Duty Industrial & Household.Meets ANSI-A14.5-CL-7.10.1 & 7.10.2 for Electrical insulation of Fibre Glass LaddersEN-131 treads duty Rating 150kg. Moulded Tool Tray Non-slip Rubber feet

CLIMB SAFE FIBRE GLASS WALL SUPPORT LADDERS

Complete Fibre Glass Ladders including Serrated RungsStrong, Safe & Light WeightHigh Insulation and Corrosion ResistantHeavy Duty Industrial-EN131 classification max. permissible load 150kg.Meets ANSI-A14.5 CL-7.10.1 & 7.10.2 for Electrical insulation of Fibre Glass Ladders

Our FRP Cage Ladder is safe, strong, non-corrosive, used for climbing up/ down the columns and towers in chemical plants, cooling towers, DM water plants, refineries, petrochemical plants, power plants and so on. FRP Cage Ladder is made from high strength and corrosion resistant metals. We offer FRP Cage Ladder in different specifications, sizes, and heights.

Other Details :

• The ladder is supplied in 3 types of components ladder, cage and stringers that can easily at site using SS clamps and Hardware.
• The cage spaced approximately 1m to 1.5m, the clamps are to be put every 1.5m to 2m. Inside clear width 350mm, Rung Spacing: 300mm
• Walk through tops made to order

Advantages :

• Non- Corrosive
• Strong, suitable for 500Kg load at any rung
• Acid resistance good resistance to acids and corrosive chemicals available ( passes 100 days 10% sulfuric acid resistance test)
• Easy to assemble quick assembly components for ease of assembly at site
• UV resistant Meets ASTM and IS tests for accelerated weathering, special coating available for 25 year UV life
• Fire retardant special fire resistance grade Meets ASTM -E84, and UL 94 V0 flammability test

We are offering our valued clients GRP Cable Ladder. GRP Cable Ladder is made of premium quality metal, which ensures high tensile strength and load bearing ability. Along with this, our GRP Cable Ladder is fire retardant. GRP Cable Ladder is available in different specifications and lengths, catering diverse demands of the clients. Further, GRP Cable Ladder is marketed at economical price.

Accessories for Cable Ladders :

• 90^o Horizontal bend
• 45^o Horizontal bend
• Straight Reducer
• Equal cross
• 45^o Vertical external bend
• 90^o Tee
• 90^o Vertical external bend
• Horizontal hinges
• Vertical hinges
• GRP coupler
• Hold down clamp
• Horizontal variable angle
• Articulated riser
• Divider Strip
• GRP cover with standard-S self tapping screws
• End Cap
• Optional heavy duty camp

ERCON FRP Sections such as Rods, Flats, Angles, Channels, Beams, H-Sections, I-sections, Square and rectangular hollow tube sections, Round Tubes, Studs and Nuts are used in making Non -Corrosive Industrial structures such as Walkway Platforms, Staircase, Crossover Bridge , Support etc. A range of FRP GRP fiberglass Sections are available in Polyester and Vinylester Resins for various structural applications such as

ERCON FIBRE GLASS CROSS ARMS, MADE FROM HIGH STRENGTH PULTRUDED PROFILES, NO BIRD FAULTS & NO CORROSION, U.V. RESISTANT, IDEAL for Coastal and HILLY Locations, Item 1 and 2 Type tested as per REC SPECIFICATIONS no. 401985 Rev 1997 and 421985, CROSS ARMS of other dimensions and as per other countries specifications can also be supplied

ERCON FIBRE GLASS CROSS ARMSERCON FIBRE GLASS CROSS ARMSMADE FROM HIGH STRENGTH PULTRUDED PROFILESNO BIRD FAULTS & NO CORROSIONU.V. RESISTANTLIGHT WEIGHTIDEAL for Coastal and HILLY Locations

CROSS ARM SPECIFICATIONS

All dimensions above are in mmItem 1 and 2 Type tested as per REC SPECIFICATIONS no. 40/1985 Rev 1997 and 42/1985Items 3 and 4 above meets NIPP SPECIFICATIONS of NigeriaCROSS ARMS of other dimensions and as per other countries specifications can also be suppliedLT and higher voltage cross arms can also be supplied

ERCON FRP Sections such as Rods, Flats, Angles, Channels, Beams, H-Sections, I-sections, Square and rectangular hollow tube sections, Round Tubes, Studs and Nuts are used in making Non -Corrosive Industrial structures such as Walkway Platforms, Staircase, Crossover Bridge , Support etc. A range of FRP / GRP fiberglass Sections are available in Polyester and Vinylester Resins for various structural applications such as

ERCON Fiberglass Ladders are very safe for high-tension electrical maintenance. Fiberglass Ladders are manufactured from high strength Pultruded FRP Side Channels produced on a fully automatic plant. These channels have high insulating properties 25KV/inch and high mechanical strength. Our Fiberglass Ladders have serrated antiskid fiberglass Rungs/Steps and hence, ERCON Fiberglass Ladders are 100% electrically safe and better than ladders using Aluminum rungs.

Our Fiberglass Ladders meet following specifications :

• ANSI-A14.5-92, Cl-7.10.1AND Cl-7.10.2
• MEETS LOADS AS PER EN-131--140Kg
• IS4571-1977-Load test and sway test

Types of FRP/GRP FIBERGLASS LADDERS :

• Wall support type single section FRP/GRP fiberglass ladder : 2m to 6m
• Wall support Type Extension FRP/GRP fiberglass ladder : up to 12m
• Self-supporting A- Type FRP/GRP ladder : 5ft to 18ft

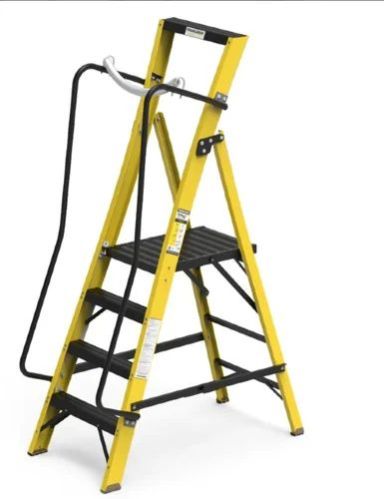

ERCON Fibre Glass Step Ladders :

• Complete Fibre Glass Ladders including 3” Steps Strong, Safe & Light
• Weight high insulation & corrosion resistant
• Heavy duty industrial & household
• Meets ANSI-A14.5-CL-7.10.1 & 7.10.2 for Electrical insulation of Fibre Glass Ladders
• EN-131 treads duty Rating 150kg
• Moulded tool tray non-slip rubber feet


Climb Safe Fiberglass Wall Support Ladders :

• Complete Fibre Glass Ladders including Serrated Rungs
• Strong, Safe & Light Weight
• High Insulation and Corrosion Resistant
• Heavy Duty Industrial-EN131 classification max. permissible load 150kg
• Meets ANSI-A14.5 CL-7.10.1 & 7.10.2 for electrical insulation of Fibre Glass Ladders

Fiber Glass Heavy Duty Single Ladders :

• Up to 6 m
• Rung Spacing 300 mm
• Fibre Glass Box or Channel Section Rails
• Fibre glass or Aluminum Rungs
• Swivel Shoes with Rubber Pads
• Anti Skid V-Rung (Optional)
• Aluminum Rungs (Optional)


Heavy Duty Extension Ladders :

• Up to 12 m (6 m + 6 m)
• Rung Spacing 300 mm
• Side Runners of Fibreglass Box or Channel Section
• Fibre glass or Aluminum Round Rungs
• D-Shaped Rungs (optional)
• Swivel Shoes with Rubber Pads
• Nylon Pulley & P
• P Rope
• Heavy duty guides
• Aluminum Lock Mechanism
• 900 mm to 1.5m Overlap
• Anti Skid V-Rung (optional)

ERCON Fibre Glass Ladders are very safe for High Tension Electrical maintenance. ERCON CLIMB SAFE LADDERS are manufactured from high strength Pultruded FRP Side Channels produced on a fully automatic plant.These channels have high insulating properties 25KVinch, high mechanical strength. The ladders have serrated antiskid fiberglass RungsSteps; hence ERCON ladders are 100% electrically safe and better than ladders using Aluminum rungs.
