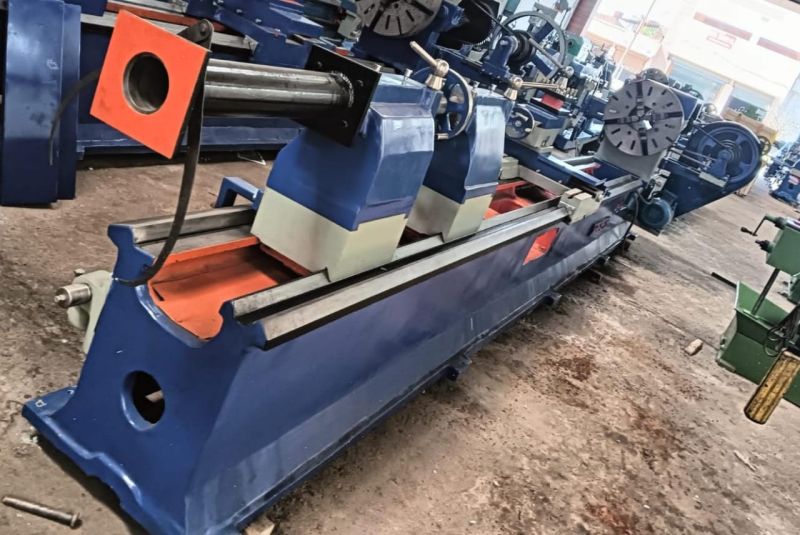

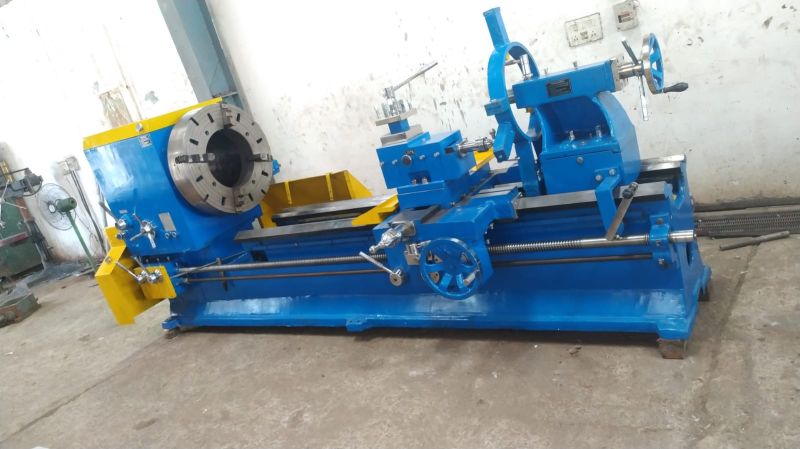

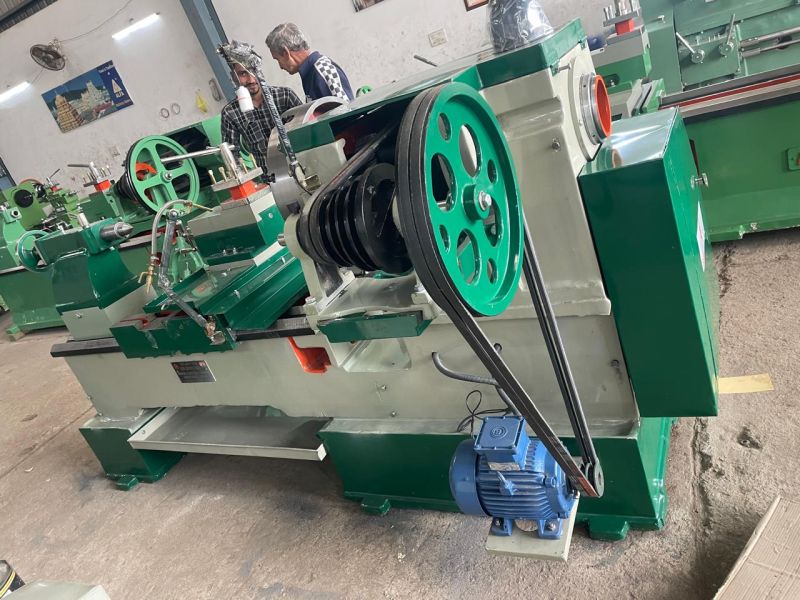

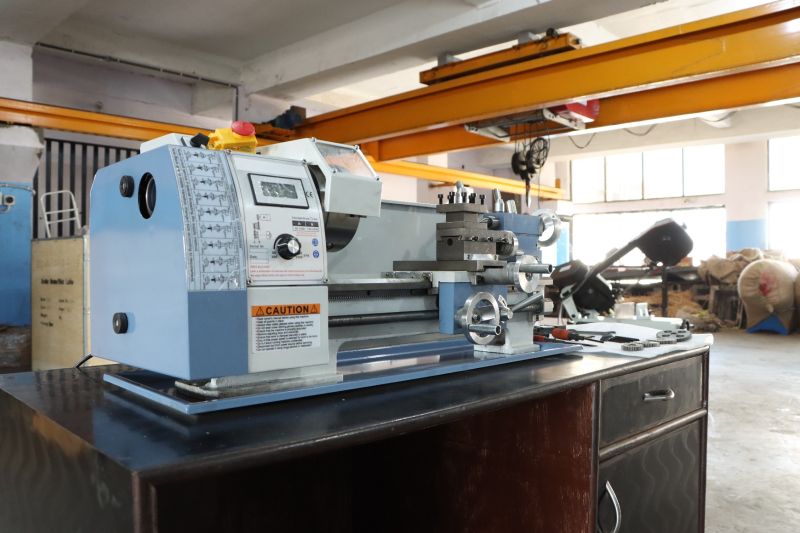

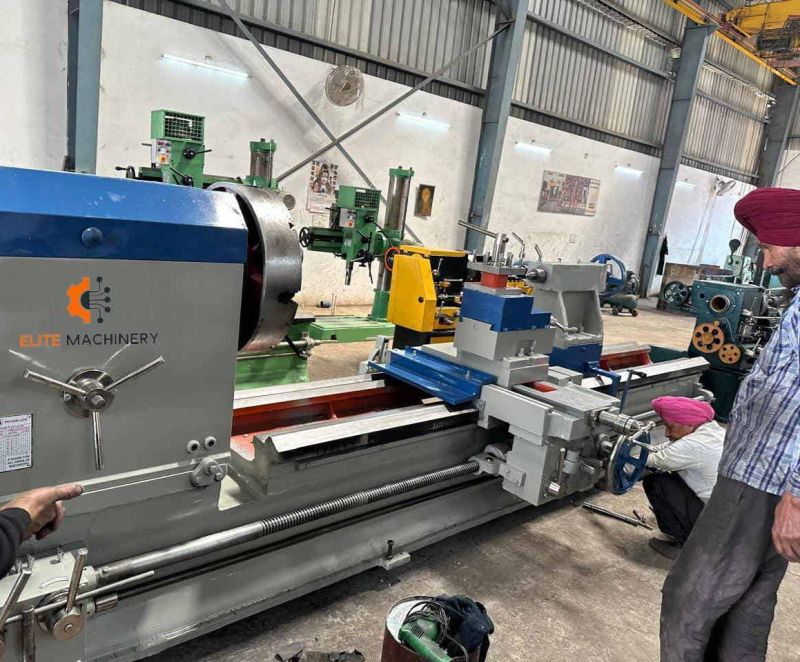

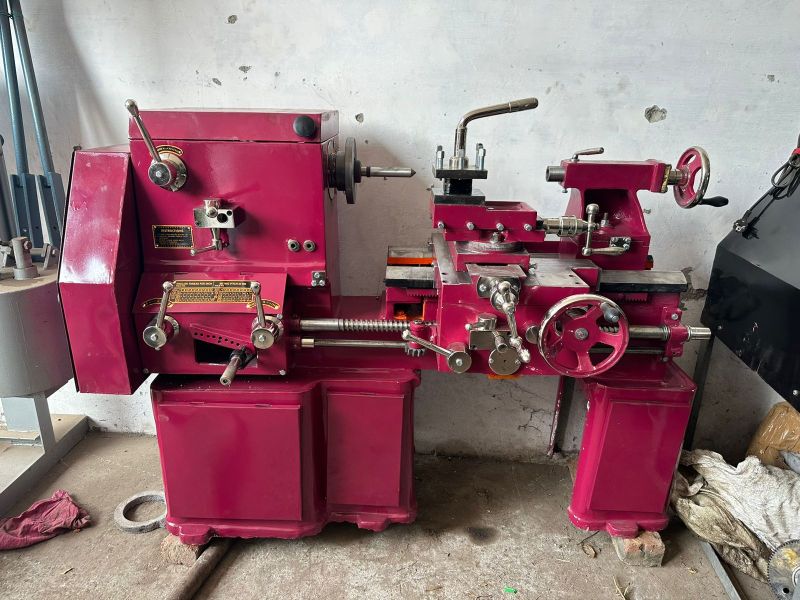

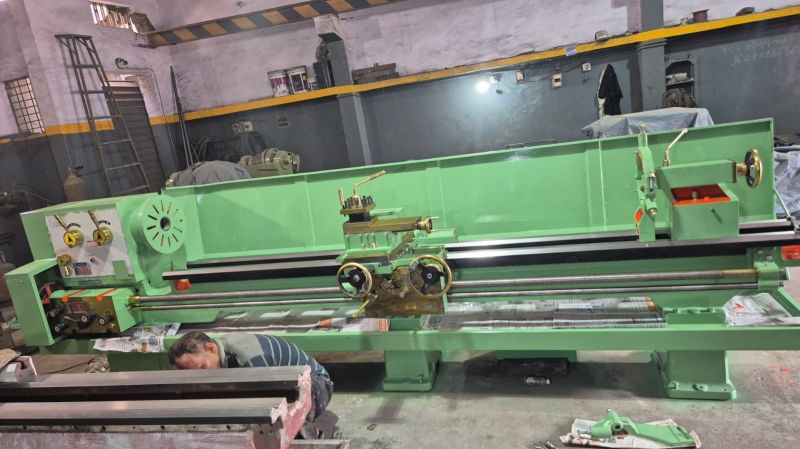

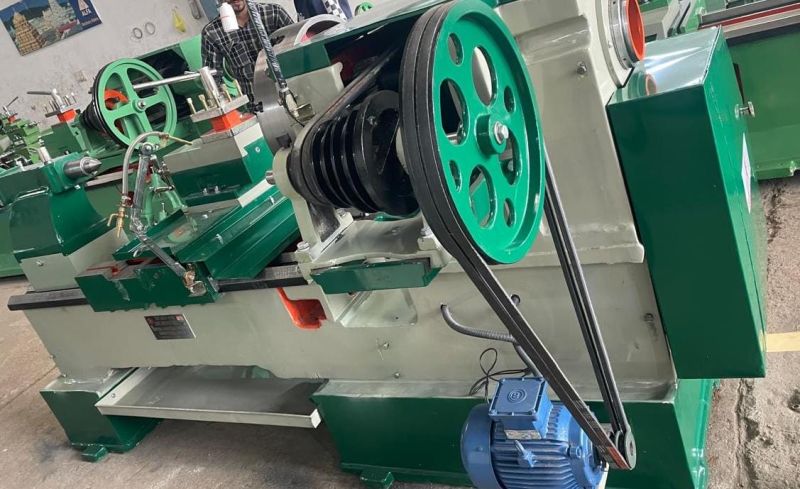

2 Products availableWe offer a complete product range of 12 Feet Heavy Duty Lathe Machine, 20 Feet Heavy Duty Lathe Machine, Mini Bench Lathe Machine, Roll Turning Lathe Machine and 14 inch Spindle Bore Lathe Machine
Technical Specification
LENGTH OF BED | 4′-6″ | 6′-0″ | 8′-0″ | 10′-0″ | 12′-0″ | 16′-0″ | 20′-0″ |
---|---|---|---|---|---|---|---|
WIDTH OF BED | 12” | 14” | 16” | 18” | 20” | 22” | 22” |
CENTRE FROM BED | 10″ | 12″ | 14″ | 16″ | 19″ | 20″ | 20″ |
WIDTH OF GAP | 5″ | 9″ | 12″ | 14″ | 19″ | 19″ | 19″ |
SWING OVER SADDLE (dia) | 10″ | 16″ | 21″ | 24″ | 26″ | 30″ | 30″ |
SWING IN GAP (dia) | 28″ | 36″ | 41″ | 47″ | 54″ | 60″ | 60″ |
ADMIT BETWEEN CENTRES | 2′-3″ | 3′-0″ | 4′-6″ | 5′-8″ | 7′-6″ | 11′-0″ | 11′-0″ |
HOLLOW SPINDLE | 1.3/4″ | 2.1/8″ | 3.1/8″ | 3.5/8″ | 4.1/8″ | 4.1/8″ | 4.1/8″ |
NO. OF SPINDLE SPEEDS | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dia. OF LEADSCREW | 1.3/8″ | 1.5/8 | 1.5/8 | 1.1/2″ | 1.3/8″ | 1.3/4″ | 1.3/4″ |
Dia. OF FEEDSHAFT | 1″ | 1.1/8″ | 1.1/8″ | 1.3/8″ | 1.3/8″ | 1.3/8″ | 1.1/2″ |
POWER REQUIRED | 1 H.P | 2 H.P | 3H.P | 3H.P | 5H.P | 5H.P | 7.5H.P |
R.P.M OF MOTOR (APPROX) | 1440 | 1440 | 960 | 1440 | 1440 | 1440 | 960 |
NETT WEIGHT (APPROX) | 800 Kgs | 1200 Kgs | 1800 Kgs | 2300 Kgs | 2800 Kgs | 4200 Kgs | 5200 Kgs |
Features :
Applications :
Standard Accessories
Optional Accessories
Applications
Specifications
Model | PRTL-12 | PRTL-16 | PRTL-20 | PRTL-24 |
---|---|---|---|---|
Length of Bed (With Head Stock) | 12" | 16" | 20" | 24" |
Width of Bed | 26" | 26" | 28" | 28" |
Height of center | 24" | 24" | 25" | 26" |
Swing over Bed dia. | 47" | 47" | 51" | 51" |
Swing in Gap dia. | 72" | 72" | 76" | 76" |
Width of gap intent of face plate | 14" | 14" | 15" | 15" |
Swing over saddle dia. | 37" | 37" | 41" | 41" |
Admit between centre | 70" | 70" | 155" | 213" |
Spindle hollow | 41/8" | 41/8" | 41/8" | 41/8" |
No. of Spindle speed | 6 | 6 | 6 | 6 |
Size of Morse taper | MT5 | MT5 | MT5 | MT5 |
Lead screw pitch | 2PTI | 2PTI | 2PTI | 2PTI |
Power required in H.P. | 7.5 | 10 | 15 | 20 |
R.P.M. motor approx. | 960 | 960 | 960 | 960 |
Approx. weight in Kgs. | 5000 | 6000 | 7200 | 8000 |
WE ALSO MANUFACTURER THE ABOVE MODELS WITH DIFFERENT BED WIDTHS AND CENTRE HEIGHT'S
Optional Accessories :
Specifications
Model | ST-4 | ST-6 | SMT-8 | DK-10 | SMT-12 | SMT-16 | SMT-20 |
---|---|---|---|---|---|---|---|
Length of bed wih Head stock) | 4'-6" | 6-0" | 8-0" | 10-0" | 12'-0" | 16-0" | 20-0" |
‘Width of bed | 12" | 14" | 16" | 18" | 20" | 22" | 22" |
Centre From BED | 10" | 12" | 14" | 16" | 8" | 20" | 20" |
‘Width of Gap | 5" | 9" | 12" | 14" | 19" | 19" | 19" |
Swing Over Saddle (dia) | 10" | 12" | 14" | 16" | 20" | 24" | 24" |
Swing In gap (dia) | 28" | 38" | 41" | 47" | 54" | 60" | 60" |
Admit Between Centres | 2"-3" | 3"-0" | 4"-6" | 5"-8" | 7"-6" | 11"-0" | 14"-0" |
Hollow Spindle | 1.3/4" | 2/8" | 3/8" | 3.5/8" | 4.1/8" | 41/8" | 4.1/8" |
No. Of Spindle Speeds | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dia. Of Leadscrew | 1.3/8" | 15/8" | 1.5/8" | 15/5" | 1.3/4" | 1.3/4" | 1.3/4" |
Dia. Of Feedshaft | 1" | 1/8" | 1.1/8" | 1.3/8" | 13/8” | 1.3/8" | 1.1/2" |
Power Required | 1 HP | 2HP | 3HP | 3HP | 5HP | 7.5 HP | 10 HP |
R.P.M Of Motor (Aprox.) | 1440 | 1440 | 960 | 960 | 9260 | 960 | 960 |
NETT Weight (Aprox.) | 800 Kgs | 1200 Kgs | 1800 Kgs | 2300 Kgs | 2800 Kgs | 4200 Kgs | 5200 Kgs |

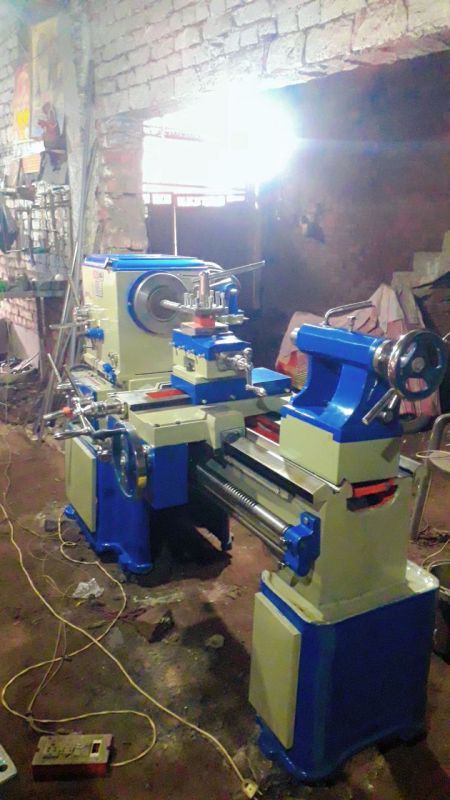

Technical Specification
LENGTH OF BED | 4′-6″ | 6′-0″ | 8′-0″ | 10′-0″ | 12′-0″ | 16′-0″ | 20′-0″ |
---|---|---|---|---|---|---|---|
WIDTH OF BED | 12” | 14” | 16” | 18” | 20” | 22” | 22” |
CENTRE FROM BED | 10″ | 12″ | 14″ | 16″ | 19″ | 20″ | 20″ |
WIDTH OF GAP | 5″ | 9″ | 12″ | 14″ | 19″ | 19″ | 19″ |
SWING OVER SADDLE (dia) | 10″ | 16″ | 21″ | 24″ | 26″ | 30″ | 30″ |
SWING IN GAP (dia) | 28″ | 36″ | 41″ | 47″ | 54″ | 60″ | 60″ |
ADMIT BETWEEN CENTRES | 2′-3″ | 3′-0″ | 4′-6″ | 5′-8″ | 7′-6″ | 11′-0″ | 11′-0″ |
HOLLOW SPINDLE | 1.3/4″ | 2.1/8″ | 3.1/8″ | 3.5/8″ | 4.1/8″ | 4.1/8″ | 4.1/8″ |
NO. OF SPINDLE SPEEDS | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dia. OF LEADSCREW | 1.3/8″ | 1.5/8 | 1.5/8 | 1.1/2″ | 1.3/8″ | 1.3/4″ | 1.3/4″ |
Dia. OF FEEDSHAFT | 1″ | 1.1/8″ | 1.1/8″ | 1.3/8″ | 1.3/8″ | 1.3/8″ | 1.1/2″ |
POWER REQUIRED | 1 H.P | 2 H.P | 3H.P | 3H.P | 5H.P | 5H.P | 7.5H.P |
R.P.M OF MOTOR (APPROX) | 1440 | 1440 | 960 | 1440 | 1440 | 1440 | 960 |
NETT WEIGHT (APPROX) | 800 Kgs | 1200 Kgs | 1800 Kgs | 2300 Kgs | 2800 Kgs | 4200 Kgs | 5200 Kgs |

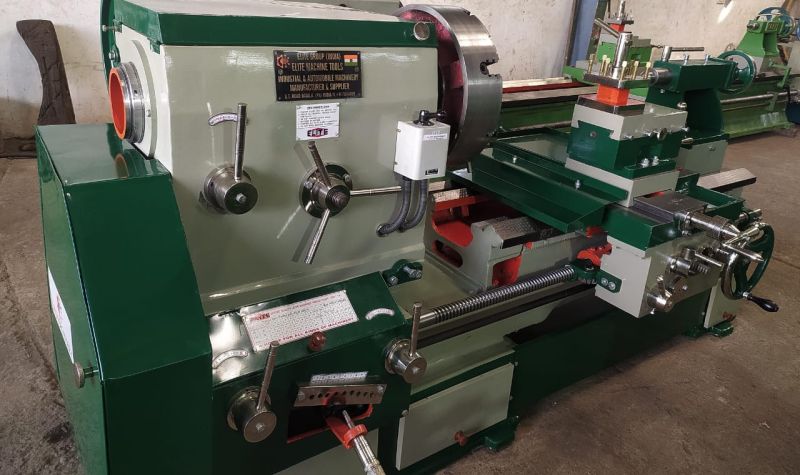

Technical Specification
LENGTH OF BED | 4′-6″ | 6′-0″ | 8′-0″ | 10′-0″ | 12′-0″ | 16′-0″ | 20′-0″ |
---|---|---|---|---|---|---|---|
WIDTH OF BED | 12” | 14” | 16” | 18” | 20” | 22” | 22” |
CENTRE FROM BED | 10″ | 12″ | 14″ | 16″ | 19″ | 20″ | 20″ |
WIDTH OF GAP | 5″ | 9″ | 12″ | 14″ | 19″ | 19″ | 19″ |
SWING OVER SADDLE (dia) | 10″ | 16″ | 21″ | 24″ | 26″ | 30″ | 30″ |
SWING IN GAP (dia) | 28″ | 36″ | 41″ | 47″ | 54″ | 60″ | 60″ |
ADMIT BETWEEN CENTRES | 2′-3″ | 3′-0″ | 4′-6″ | 5′-8″ | 7′-6″ | 11′-0″ | 11′-0″ |
HOLLOW SPINDLE | 1.3/4″ | 2.1/8″ | 3.1/8″ | 3.5/8″ | 4.1/8″ | 4.1/8″ | 4.1/8″ |
NO. OF SPINDLE SPEEDS | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dia. OF LEADSCREW | 1.3/8″ | 1.5/8 | 1.5/8 | 1.1/2″ | 1.3/8″ | 1.3/4″ | 1.3/4″ |
Dia. OF FEEDSHAFT | 1″ | 1.1/8″ | 1.1/8″ | 1.3/8″ | 1.3/8″ | 1.3/8″ | 1.1/2″ |
POWER REQUIRED | 1 H.P | 2 H.P | 3H.P | 3H.P | 5H.P | 5H.P | 7.5H.P |
R.P.M OF MOTOR (APPROX) | 1440 | 1440 | 960 | 1440 | 1440 | 1440 | 960 |
NETT WEIGHT (APPROX) | 800 Kgs | 1200 Kgs | 1800 Kgs | 2300 Kgs | 2800 Kgs | 4200 Kgs | 5200 Kgs |
Technical Specification
LENGTH OF BED | 4′-6″ | 6′-0″ | 8′-0″ | 10′-0″ | 12′-0″ | 16′-0″ | 20′-0″ |
---|---|---|---|---|---|---|---|
WIDTH OF BED | 12” | 14” | 16” | 18” | 20” | 22” | 22” |
CENTRE FROM BED | 10″ | 12″ | 14″ | 16″ | 19″ | 20″ | 20″ |
WIDTH OF GAP | 5″ | 9″ | 12″ | 14″ | 19″ | 19″ | 19″ |
SWING OVER SADDLE (dia) | 10″ | 16″ | 21″ | 24″ | 26″ | 30″ | 30″ |
SWING IN GAP (dia) | 28″ | 36″ | 41″ | 47″ | 54″ | 60″ | 60″ |
ADMIT BETWEEN CENTRES | 2′-3″ | 3′-0″ | 4′-6″ | 5′-8″ | 7′-6″ | 11′-0″ | 11′-0″ |
HOLLOW SPINDLE | 1.3/4″ | 2.1/8″ | 3.1/8″ | 3.5/8″ | 4.1/8″ | 4.1/8″ | 4.1/8″ |
NO. OF SPINDLE SPEEDS | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dia. OF LEADSCREW | 1.3/8″ | 1.5/8 | 1.5/8 | 1.1/2″ | 1.3/8″ | 1.3/4″ | 1.3/4″ |
Dia. OF FEEDSHAFT | 1″ | 1.1/8″ | 1.1/8″ | 1.3/8″ | 1.3/8″ | 1.3/8″ | 1.1/2″ |
POWER REQUIRED | 1 H.P | 2 H.P | 3H.P | 3H.P | 5H.P | 5H.P | 7.5H.P |
R.P.M OF MOTOR (APPROX) | 1440 | 1440 | 960 | 1440 | 1440 | 1440 | 960 |
NETT WEIGHT (APPROX) | 800 Kgs | 1200 Kgs | 1800 Kgs | 2300 Kgs | 2800 Kgs | 4200 Kgs | 5200 Kgs |

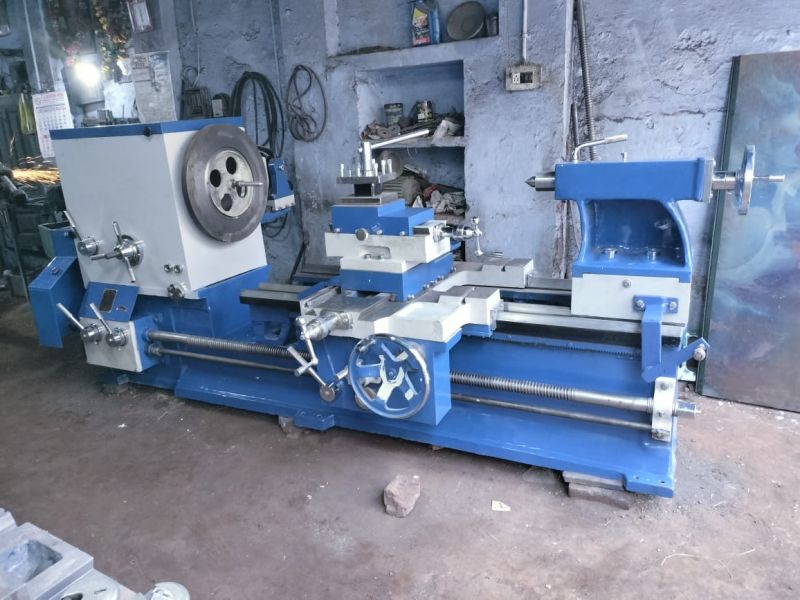

Specifications
Model | ST-4 | ST-6 | SMT-8 | DK-10 | SMT-12 | SMT-16 | SMT-20 |
---|---|---|---|---|---|---|---|
Length of bed wih Head stock) | 4'-6" | 6-0" | 8-0" | 10-0" | 12'-0" | 16-0" | 20-0" |
‘Width of bed | 12" | 14" | 16" | 18" | 20" | 22" | 22" |
Centre From BED | 10" | 12" | 14" | 16" | 8" | 20" | 20" |
‘Width of Gap | 5" | 9" | 12" | 14" | 19" | 19" | 19" |
Swing Over Saddle (dia) | 10" | 12" | 14" | 16" | 20" | 24" | 24" |
Swing In gap (dia) | 28" | 38" | 41" | 47" | 54" | 60" | 60" |
Admit Between Centres | 2"-3" | 3"-0" | 4"-6" | 5"-8" | 7"-6" | 11"-0" | 14"-0" |
Hollow Spindle | 1.3/4" | 2/8" | 3/8" | 3.5/8" | 4.1/8" | 41/8" | 4.1/8" |
No. Of Spindle Speeds | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Dia. Of Leadscrew | 1.3/8" | 15/8" | 1.5/8" | 15/5" | 1.3/4" | 1.3/4" | 1.3/4" |
Dia. Of Feedshaft | 1" | 1/8" | 1.1/8" | 1.3/8" | 13/8” | 1.3/8" | 1.1/2" |
Power Required | 1 HP | 2HP | 3HP | 3HP | 5HP | 7.5 HP | 10 HP |
R.P.M Of Motor (Aprox.) | 1440 | 1440 | 960 | 960 | 9260 | 960 | 960 |
NETT Weight (Aprox.) | 800 Kgs | 1200 Kgs | 1800 Kgs | 2300 Kgs | 2800 Kgs | 4200 Kgs | 5200 Kgs |
