Our Products
Paper Cutting Machine
2 Products availableBoring Machine

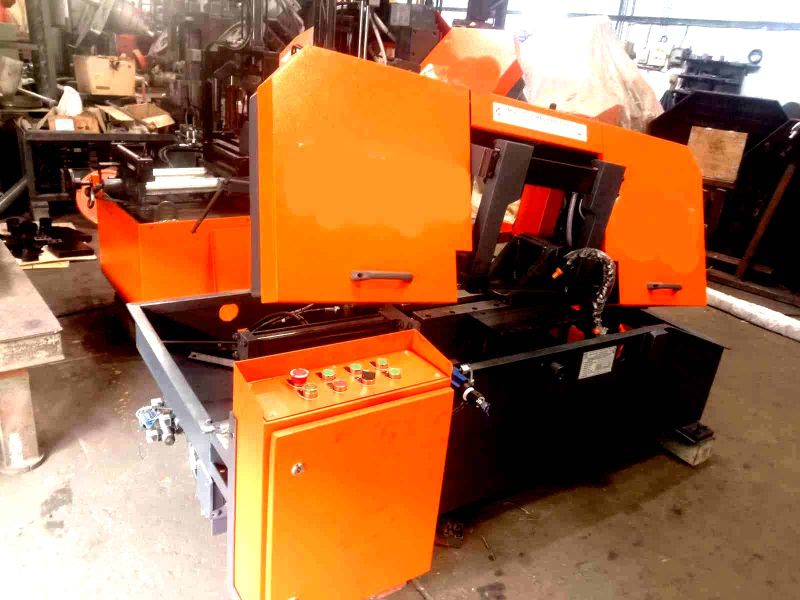

2 Products availableWe offer a complete product range of Double Column Band Saw Machine, Extra Heavy Duty Lathe Machine, 7 Feet All Geared Lathe Machine, 12 Feet All Geared Lathe Machine and Woodworking Cnc Router Machine
Technical Specification
| Cutting Capacity Round Bar(mm) | 250 | 250 |
|---|---|---|
| Square(mm) | 220x220 | 220x220 |
| Blade Size(mm) | 27x0.9x3200 | 27x0.9x3200 |
| Motor power | 0.85 H.P./960 RPM | 0.85 H.P./960 RPM |
| Coolant Pump Power | 0.15 H.P./2800 RPM | 0.15 H.P./2800 RPM |
| Hydraulic Drive Motor | 0.25 H.P./1500 RPM | 0.25 H.P./1500 RPM |
| Cutting Speed Control | Power Hydraulic | Power Hydraulic |
| Blade Speed Min/Mtr | 32/44/56 | 32/44/56 |
| Net Weight | 352 kg | 385 kg |
| Overall Dimension | 1500x825x1600(LxWxH) | 1500x825x1600(LxWxH) |
Technical Specification
| Length of Bed | 12” | 16” | 20” | 24” |
|---|---|---|---|---|
| Width of Bed | 26” | 26” | 28” | 28” |
| Height of center | 24” | 24” | 25” | 26” |
| Swing over Bed dia. | 47” | 47” | 51” | 51” |
| Swing in Gap dia. | 72” | 72” | 76” | 76” |
| Width of gap intent of face plate | 14” | 14” | 15” | 16” |
| Swing over saddle dia. | 37” | 37” | 41” | 41” |
| Admin between centre | 70 * | 120* | 155* | 213* |
| Spindle hollow | 4 ¼ ” | 4 ¼ ” | 4 ¼ ” | 4 ¼ ” |
| No. of Spindle speed | 5 | 5 | 6 | 6 |
| Size of Morse taper | 5MT | 5MT | 5MT | 5MT |
| Lead screw pitch | 2PTI | 2PTI | 2PTI | 2PTI |
| Power required in H.P. | 7.5 | 10 | 15 | 20 |
| R.P.M. motor approx. | 960 | 960 | 960 | 960 |
| Approx. weight in Kgs. | 5000 | 6000 | 7200 | 8000 |
Technical Specification
| Length of bed | 61/2 Ft. | 81/2 Ft. | 101/2 Ft. | 12 Ft. | 14 Ft. |
|---|---|---|---|---|---|
| Width of bed | 375 MM | 375 MM | 450 MM | 500 MM | 550 MM |
| Height of Center | 300 MM | 300 MM | 400 MM | 450 MM | 550 MM |
| Swing Over Bed | 600 MM | 600 MM | 800 MM | 900 MM | 1000 MM |
| Swing Over Cross Slide | 325 MM | 325 MM | 530 MM | 600 MM | 630 MM |
| Swing In gap | 865 MM | 865 MM | 12000 MM | 1300 MM | 1400 MM |
| Admit Between Center | 100 MM | 1500 MM | 200 MM | 2500 MM | 3000 MM |
| NO’s of Spindle Speeds | 8 | 8 | 9 | 9 | 8 |
| RPM Range | 30-720 | 30-720 | 30-720 | 15-450 | 30-720 |
| Spindle Hollow | 65 MM | 65 MM | 90 MM | 103 MM | 103 MM |
| Metric Threads | 1-14 | 44940 | 44940 | 44940 | 44940 |
| With Worth Threads TPI | 2-30 | 10990 | 10990 | 10990 | 10990 |
| No of Feeds | 30 | 30 | 30 | 30 | 30 |
| Electic Motor RPM | 3*1440 | 3*1440 | 5*1440 | 5*1440 | 7.5*1440 |
Specifications
| Option | Length of Bed | Height of Centre | Diameter of Spindle | Widht of Bed |
|---|---|---|---|---|
| Hydraulic Heavy Duty Spinning Rolling Machine with Double Slide | 1828mm | 406 | 98mm | 305mm |
| Manual Heavy Duty Spinning Rolling Machine with Single Slide Attachment | 1828mm | 406mm | 98mm | 305mm |
| Hydraulic Heavy Duty Spinning Rolling Machine with Double Slide attachment | 1600mm | 330mm | 76.02mm | 280mm |
| Hydraulic Heavy Duty Spinning Rolling Machine with Double Slide | 1828 mm | 406 | 98mm | 305mm |
| Manual Heavy Duty Spinning Rolling Machine with Single Slide attachment | 1828mm | 406mm | 98mm | 305mm |
| Hydraulic Heavy Duty Spinning Rolling Machine with Double Slide attachment | 1600mm | 330mm | 76.02mm | 280mm |
Technical Specification
| ADMIT BETWEEN CENTRES | LENGTH OF BED | Floor Space Occupied (m.m.) |
Approx.Weight in Kgs. | Approx. Case Dimensions (m.m.) |
|
|---|---|---|---|---|---|
| Nett. | Gross | ||||
| 450 m.m. | 1370 m.m.(4′-6″) | 1650×970 | 775 | 825 | 2000x1000x1500 |
| 725 m.m. | 1600 m.m.(5′-3″) | 1950×970 | 850 | 900 | 2200x1000x1500 |
| 950 m.m. | 1830 m.m.(6′) | 2100×970 | 875 | 925 | 2500x1000x1500 |
Technical Specification
| RANGE | A.B.C | WEIGHT (Approx) | Floor-L | Space-W | Occupied | |
|---|---|---|---|---|---|---|
| 5.5 FEET | 1675 MM | 550 MM | 1100 KG | 1980 (78″) | 1250 (49″) | 1370 (54″) |
| 7 FEET | 2130 MM | 1000 MM | 1300 KG | 2425 (95″) | 1250 (49″) | 1370 (54″) |
| 9 FEET | 2740 MM | 1560 MM | 1500 KG | 3050 (120″) | 1250 (49″) | 1370 (54″) |
| 10 FEET | 3048 MM | 1860 MM | 1700 KG | 3350 (132″) | 1250 (49″) | 1370 (54″) |
| 12 FEET | 3658 MM | 2450 MM | 1925 KG | 3950 (156″) | 1250 (49″) | 1370 (54″) |
