1 Products availableWe offer a complete product range of Cast Iron Earthing Pipe, Centrifugally Cast Iron Socket and Spigot Pipe, ductile iron double flanged pipe and Cast Iron Double Flanged Pipe
we are manufacturing cast iron earthing pipe, which is saving 90-95% electricity losses and providing proper earthing. surprisingly that fact of majority of people does not know about it. we have initiated in factory, society, door to door services for domestic purposes. we are going to dedicate a team for awareness. we will give provide turnkey services to them along with material and accessories and earthing compounds to build to your home or building.
special attachments
single flange
hot dip galvanized clamp
cast iron funnel (with casted mesh)
alternate hole & taper cut (along with accessories like back fill compound & earth pit covers manhole covers with frame).
benefits
higher surface area of contacts
durable and reliable
uniform current dissipation
excellent connectivity and conductivity
corrosion resistance
easy installation
environment eco-friendly
cost effective.
applications
power generation plants
wind & solar energy plant
transmission & distribution
mines industries
telecommunication towers
building sites
medical establishments
commercial & domestic, standby & other private generating plants
generators installation etc.

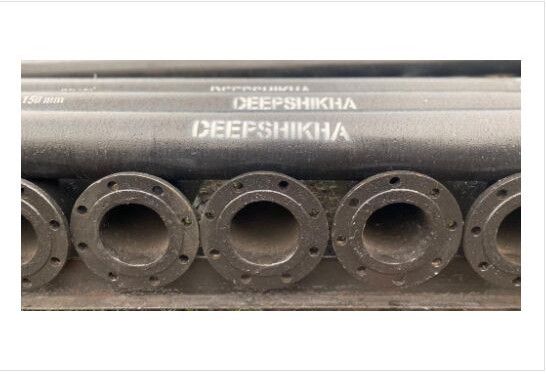

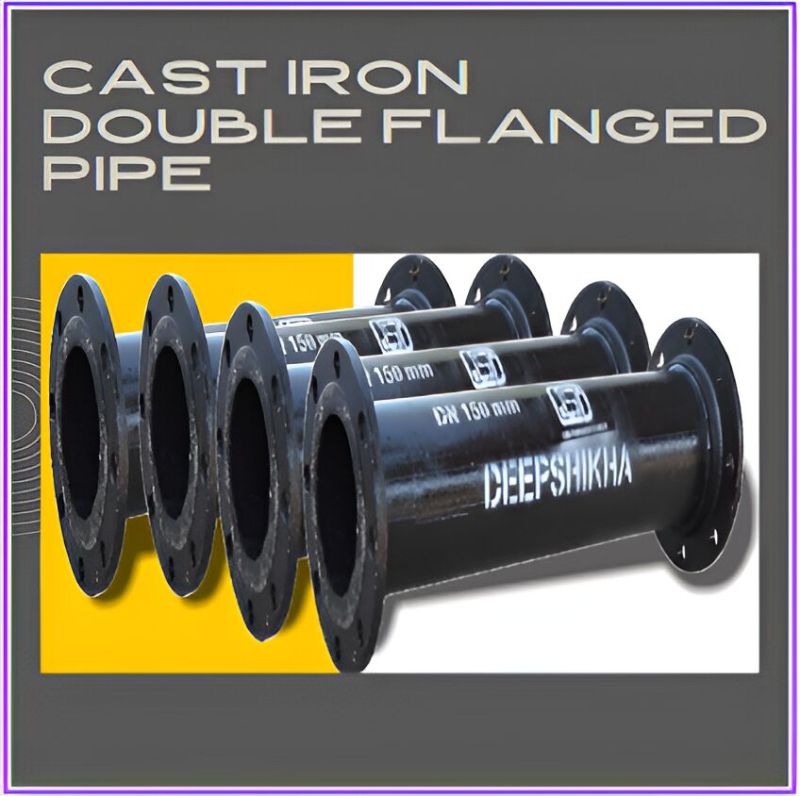

CIDF (Cast Iron Double Flanged) Pipes we manufacture, export and supply are widely in demand amongst buyers. Made using the finest quality raw material and advanced technology, our CIDF Pipes are appreciated for their excellent finish, optimum strength, high corrosion resistance and durability. We make available bulk quantities of CIDF Pipes at the most competitive rates. Furthermore, we ensure timely delivery of the orders. Highlights
Additional Information:
Payment Terms :
Packaging Details : As per customer requirements.
Delivery Time : 1-2 days

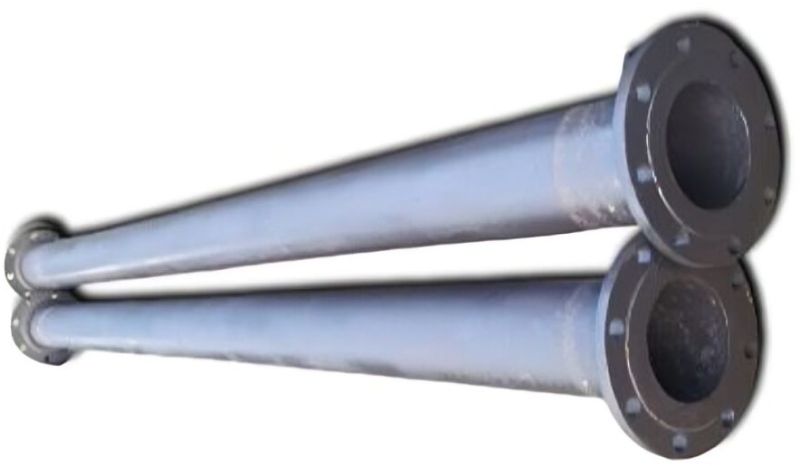

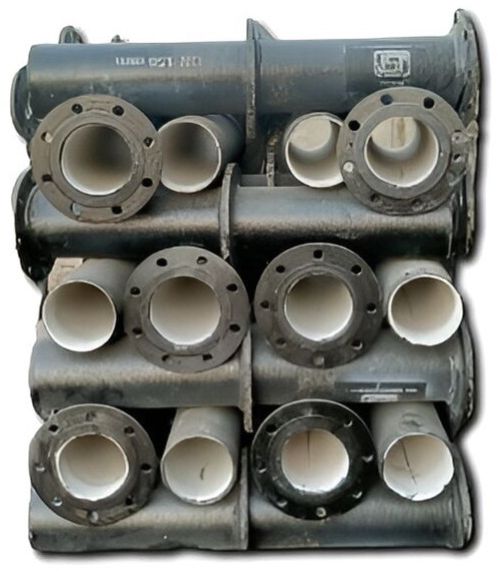

Centrifugally Cast (SPUN) Ductile Iron Double Flanged PIPES" as per is 8329;2000; For water , Gas and Sewage of Sizes from DN 80 upto and including DN 600 mm Pressure rating PN10 and PN 16, Class K9, Flanged Joint type.
Coatings : Pipes are generally supplied with inside Cement mortar lining and outside zinc coating followed by bitumen coat.
Applications of CI/D I Pipe and Fittings:
Dimensions and Tolerances : As per IS 8329:2000
Standard Flange Drilling PN-10 and PN-16 : -
Additional Information:
Payment Terms :
Packaging Details : As per customer requirements.
Delivery Time : 1-2 days
Technical Details Of Pipe As Per IS 8329:2000.
DI Flange Pipe Range : | |
---|---|
Size | DN 80 mm to 600 mm |
Length | Available in Mix and standard length up to 5.5 Mtr. |
Pressure Rating | PN 10 |
Class of Pipe | K9 |
Joint | Flanged Joint |
Flanging Technology | Screwing |
Mechanical Parameters As Per IS 8329
Size (DN)(mm) | Tensile Strength (Min) | Elongation at break (Min) | Hardness (Max) |
---|---|---|---|
Pipe 80-600mm | 420 MPa | 0.1 | 230HB |
Flange | 420 MPa | 0.05 | 250HB |
DI Flanged Pipe Hydrostatic Test Pressure At Works (Mpa)
Size (DN)(mm) | PN10 | PN16 | PN25 | PN40 |
---|---|---|---|---|
80-600 | 1.6 | 2.5 | 3.2 | 4 |
centrifugally cast (spun) iron socket & spigot (push-on joint) pressure pipes for transporting water, storm drains, waste sewage as per is 1536:2001 from dn 80mm to 200 mm.
applications of s & s pipe and fittings:
drinking-water, gas and savage
chemical plant and industrial purposes
ash handling and plumbing
water for irrigation purposes
pumping stations and underground mains
river crossing, sandy area, etc
dimensions and tolerances:as per is 1536:2001
ci pipe range size: dn 80-200 (mm)
length: available in mix & standard length up to 4.0 mtr.
class of pipe: la, a, b
joint: push-on-joint
