Creative Engineers

Vatva, Ahmedabad, Gujarat

• MODEL :- RHB CI-1
• Outer Diameter :- 40 mm,
• Solid cast Iron Construction,
• 2 way operation,
• 1” / 1 ½” pump Inlet,
• Suitable 50-210 Liter,
• Useful for transferring oil , diesel , kerosene & other Non-Corrosive Media.
• Pipe Tube Length 990 mm
• Capacity 5 liter / 20 turns,
• Weight
• In Built Filter
• M.S.  Pipe tube, SS Impeller Measurement :- 145 x 33 x 22 cm

APPLICATION

All clear liquids without solid suspensions

like diesel, petrol, LPG, oil, solvents, syrup,

dm water, chemicals, steam boiler feeding,

evacuation of condensate water, boosting

of pressure, as a drum/barrel pump.

FEATURES

All wetted parts of pumps are made from lost wax process

(investment casting), so surface finish is excellent. Smooth flow

path/ hydraulic passage and no casting defects like blow holes,

cracks etc. are present.

Centripetal / regenerative impeller for better suction.

Pumps will be normally available in CF-8m /CF-8 (Gun metal,

Alloy-20) and also in other material as per customer's requirements.

Single /multistage pumps to handle crystal clear liquids for high

pressure duties.

Very quick priming & no need of foot valves.

Very high suction capacity up to 8 meters without much noise

Various types of sealing arrangements as per customer's liquid's characteristics.

Normally fitted with carbon/ceramic seal faces with teflon cup and viton rubber.

Pumps are available in monoblock and in bare type also with flameproof motor.

All motors are of "TEFC" type

Pump can be offered with electro polishing for some special requirements.

Can handle temperature up to 80Co

Trolley mount available.

Also available with 120 Volt / 60 Hz.

Custom built pumps are available.

SP-2/3

SP-1

SP-5/6

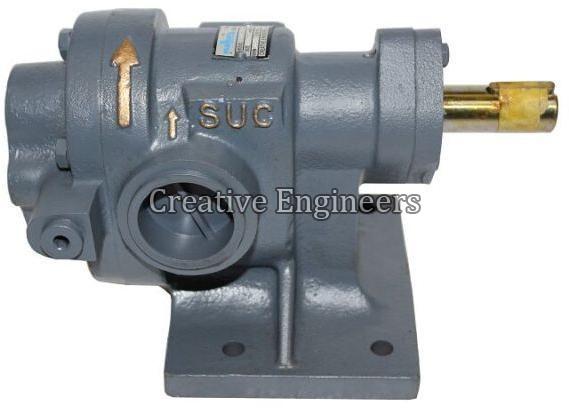

Features :

• All Positive displacement rotary gear pumps are self priming pumps with suction lift of 5 meters at mean viscosity and speed 1440 rpm
• The SEG series of MALHAR pump has a modified profile of teeth to give accurate discharge within the pressure range .
• The helical gear design delivers constant volume without any pulsation. It also reduces internal slippage and gives high volumetric efficiency.
• Compact in size and highly economical
• All these are self lubricated pumps recommended for use where the liquid to be transferred has lubrication properties hence the bearing is lubricated by the pumping fluid and do not need any external lubrication.
• Easy maintenance due to availability and interchangeability of spares.
• All MALHAR gear pumps are designed and assembled with close tolerances to reduce the mechanical losses, thus it consumes lesser power and operates at higher efficiency.

Applications :

• Rotary gear pumps are useful for handling following viscous and semi viscous liquid.
• Clean lube oil, Castor oil, Coconut oil, Ground nut oil, Cotton seed oil and Hydraulic oil.
• All kind of vegetable oils.
• Paints & Varnish, Viscous Chemical, Printing Ink.
• All Kind of fish and animal oils.
• Soap Solutions, Glycerin, Glycol and Glue
• Sugar molasses and syrups.
• Rotary gear pumps are widely used in paper mills, refineries, Steel mills and textile Industries.

ADVANTAGES OF SIG PUMPS :

• Single shaft – well supported at both ends
• High suction lift and low noise level as well as vibrations
• High volumetric and overall efficiency
• Continuous, pulsation free flow due to axial entry in pumping element
• Compact and light – weight design
• Ease of assembling and dismantling without disturbing the pipeline.
• Choice of oil seal / Mechanical seal / gland pack.
• Parts / Pumps interchangeable with well known brands.

Applications

• INTERNAL GEAR/LOBE PUMP
• Transfer from tank to tank
• Emptying of barrels
• Lubricating and cooling of bearings , gears, mechanical seals and machine tools
• Fuel oil booster

SPECIAL EXECUTIONS :

• Specially coated internals for pumping of non –lubricating liquids.
• Engineering plastics rotor set for chemicals & low viscosity fluids
• Specially designed pumps for vacuum duty applications
• Uni-directional
• LIQUID HANDLED
• Fuel oil
• Lube Oil
• Neutral liquids with lubricating properties

APPLICATION

MALHAR Rotary gear pumps are useful for handling following

viscous and semi viscous liquid.

Clean lube oil, Castor oil, Coconut oil, Ground nut oil, Cotton

seed oil and Hydraulic oil.

All kind of vegetable oils.

Paints & Varnish , Viscous Chemical , Printing Ink.

A ll Kind of fish and animal oils.

Soap Solutions , Glycerin , Glycol and Glue

Sugar molasses and syrups.

Rotary gear pumps are widely used in paper mills, refineries,

Steel mills and textile Industries.

FEATURES

A ll Positive displacement rotary gear pumps are self priming pumps with

suction lift of 5 meters at mean viscosity and speed 1440 rpm

T he SEG series of MALHAR pump has a modified profile of teeth

to give accurate discharge within the pressure range .

T he helical gear design delivers constant volume without any pulsation.

It also reduces internal slippage and gives high volumetric efficiency.

Compact in size and highly economical

All these are self lubricated pumps recommended for use where the liquid

to be transferred has lubrication properties hence the bearing is lubricated

by the pumping fluid and do not need any external lubrication.

Easy maintenance due to availability and interchangeability of spares.

All MALHAR gear pumps are designed and assembled with close

tolerances to reduce the mechanical losses, thus it consumes lesser power

and operates at higher efficiency.

applications

milk, cream, butter milk, condensed milk

fruit juice, beer, wine, sugar syrup

vitamin solutions, sugar & confectionery.

ro water, dm water, pure water. water for injection (wfi)

vegetable oil, mineral oil, lub oil etc.

pharmaceutical formulations, syrup etc.

alkaline solution / alcoholic drinks.

acids, fine chemicals

bottling plants, soft drinks & distillery

food processing / liquid food stuffs

colour dyes and pigments / paints

descaling applications, paper & cement industries

water treatment plants

detergent, soaps, paste & shampoo

textile sizing, dyeing & finishing systems

natural cellulose fiber / synthetic fiber system

hot & cold water pumping.

features

as all pumps are made from rolled stainless steel, mechanical

properties are far superior than cast material.

pore free, non-pitting and non-adhering smoother surface,

so lesser friction losses, and lesser service corrosion.

super finished surface also ensures no ingress or emission of

germs or impurities during pumping or idling which is a basic

requirement of sterile / hygienic application.

pump can handle liquids having viscosities

up to 1500 centipoises.

pumps are highly energy efficient and requires lesser npsh to

function without cavitation.

the pumps can work under a vacuum of 720 mm of hg,

suitable for vacuum evaporators.

pumps are available with cosed/semi open impellers.

the best elastomers are used in the pumps to provide optimum

resistance for high temperatures and chemicals.

minimum working / rotating parts.

safe and quiet operation levels.

gentle product handling with lower maintenance and

downtime cost.

dynamic combinations of seal faces as per customer's

requirement (single seal / double seal, seal external cooling ).

suitable for standard motor or flange type or foot cum flange

type motor or engine

monoblock or bare pumps or with trolley.

also with flame proof motors.

various types of connection like - tri'clove joints sms, flanges

or threaded nipple/coupling.

pumps with adjustable legs, available on request.

special bearing for hot water application available on request.

ADVANTAGES OF AODD PUMP

• No Seal, No Leakage
• Self Priming, No need of foot valve
• Variable flow with pump.
• Can be submerged.
• Less stock of spare to be maintain.
• No Skilled person is needed to operate and repair pump.
• Light weight, handy in use.
• No rotation, no wear & tear, hence low maintenance.
• No Charging.
• Pump can run dry.
• Stops automaticlly on closing of discharge valve.
• Can handle 2 to 10 mm sized solid particles.
• Also can be used upto accuracy 3 to 5%
• No Motor, No fire.

Applications :

• ABRASIVES : Clay slip, Titanium dioxide, frit, Mill scale.
• ALCOHOLS ACIDS: All mineral and organic acids.
• CEMENT : Cement, Mortar.
• COSMETICS : Creams, Emuksions, Detergents.
• CERAMICS : Slip glazes, Clay.
• DRILLING : Mud, grout, Lubricants.
• DRINKS : Soft drinks, spirits, beer, wine milk.
• EXPLOSIVES : Suspensions of Gun powder explosive, etc.
• INKS & DYES : Printing inks, driers, dyes, sixes and solvents.
• FOODS : Liquid and semi-solid foods, Flavourings.
• OILS : Petrol, Diesel, Hydraulic and cutting oils, lube oils, animal and vegetables oils and greases.
• PULPS : Paper, wood sizes bleaches
• RESINS : Natural and synthetics, water and solvent based, Monomeric and polymeric plastics.
• SLUDGE & WASTE : Sewage, effluents, coal and lime slurry.
• SOLVENTS : Aromatic and allphatics, ketones, aldehydes, esters and chlorinated  hydrocarbons, de-icing fluids.
• WATER : All types.
• TIMBER PRESERVATIVES   : Creosote, turpentine, copper, napthenate.
• PAINT : Emulsions, Latexes, Pigments, solvent, resins, thinners,
• PHARMACEUTICALS : Liquids, Creams and Compounds.
• PLATING : Aggressive acids, salts, sludge and effluents.
• RUBBER : Natural and synthetic.

These models are quite versatile and find their applications RANGE :

• in Pharmaceutical & Chemical Industries for Distillation,
• Capacity Free Air Displacement : 100 2000 lpm, Evacuation & Filtration, Paper feeding in Printing Machines
• Ultimate Vacuum MM OF Hg : 650-700 and is suitable for host of other general Vacuum

Applications : Like Holding, Conveying, Glass Blowing, Labelling, Vacuum Forming, Blister Packing, Bottle Filling, Vacuum Sealing, Food Processing & Milking Machines etc.

APPLICATION

• Water Distribution Network industrial Commercial water supply
• Hot water meters (<90°c)
• Pulse output water meters.
• Water meter with EEC Mark
• Water meter suitable for ETP/Dirty water.
• Dirt Box (50 mm to 500 mm)

Features :

• Leak proof and sealed totaliser.
• Magnetic drive.
• Repairable without interrupting water supply.
• Removable mechanism ensures easy maintenance.
• Totaliser protected by metallic cover.
• Reliable sensitive metrology and low pressure loss.

Features :

• Oil free air and maintenance free operation as no lubrication is required. Practically Noiseless operation.
• Available with 24 v / 48 v DC or 110 v / 230 V AC Supply voltage.
• Available with Chemical resistant parts made from PP / PVC / SS.
• Available as Single Stage / Double stage / Double stage Parallel Operation pumps.
• Standard Models are with Aluminum contact parts.

Applications :

• Energy storage
• Pulsation Damper/dampener
• Volume Compensator
• Pressure Compensator
• Emergency Energy Reserve
• Counter Balance
• Hydraulic line shock Damper
• Shock Absorbe
• Hydraulic Spring
• Fluid Separator

Benefits :

• Minimum Maintenance
• Very Easy to Operate
• Energy & Water Saving

Standard Accessories

• Overflow Control Valve
• Pump Stand
• Motor-Pump Pulley, Pipe T
• Piston Ring Set
• Nozzle Set, Pipe Nipple, Pipe Bend

ELECTROMAGNETIC FLOW METER MAGFLOW 6410 & 6420 (FULL BORE TYPE)

“TORQUE” make series 6400 (Full Bore Type) are new range of Bipolar Pulsed DC Full Bore type Electromagnetic flow meters. It is suitable for pipes with nominal diameters of DN 10 to DN 600. They are based on faraday’s law of Electromagnetic Induction. The series 6400 meters features flanged construction and is available with choice of liner and electrode materials. Series 6400 has excellent accuracy and flow range ability. The meter is suitable for use on wide range of corrosive and aggressive range of conductive liquids.

Available for pipe sizes Range : DN 10 to 3000

APPLICATION

• Water Supply Networks, Chemical, Petrochemical and Process Industries (Only Conductive Liquids)
• Pharmaceutical Industries / Paper and pulp Industries / Fertilizer Industries / Beverage Industries
• Waste - Water management , Sugar, Food, Drug and Beverages Industries
• Effluent Treatment Plants, Aluminum, Steel, Mining and Dredging Industries

Media Temperature (PTFE)

• 0"-180c with Remote Transmitter
• 0"-120c with integral transmitter
• 0"-90c max for other Liners

LED Display : 4 Digit Indication for flow rate and 8 digit indication for Totaliser programming from keyboard for engineering unit.

We are making DC pumps for various application as per customer’s requirement :

• Idle for pressure booster application
• Very useful for small RO/SODA plant (Replacement of rotary vane pump)
• Excellent for drinking water application as all parts are of brass ( 100 % hygiene)
• Curing at constriction site
• Max suction lift 8 mtr
• Very silent, no need of foot valve
• Doubled 'Z' sealed precision ball bearings
• TEFC motor

Salient Features :

• These Pumps are meant for high Mechanical Efficiency means less energy Consumption, Lower Cost Smaller Motors, Lower Drive Costs.
• Easy-clean pump of head which is ideal for in place cleaning, or can be rapidly stripped for manual cleaning, without disconnecting the pipe work.
• Positive, Uninterrupted Displacement by specially designed rotors creates a steady, gentle pumping action which does not shear, agitate or aerate the product.
• Pumping chambers are without pockets or crevices to harbor bacteria or contaminants. No Contact between moving parts and no internal bearings in the pump head.
• Solid stainless steel, ASI 316 quality, pump head, rotors and shafts. Food quality rubber covered and plastic rotors are also available.
• Robust, Cast Iron gear case enclosing oil Lubricated rolling bearings are precision timing gears.
• Generous distance separating the pump head from the gear case.
• End Connection / Port Flanged / Threaded – Customized.

Typical Applications for Positive Displacement

• Dairy : Cream, Milk, Cheese, Curd & Whey, Cottage, Cheese, Yogurt, Margarine, Butter
• Bakery : - Batters, Flavorings, Frostings, Fruit Fillings, Fat & Oils , Sweeteners , Yeast Slurry Dough.
• Meat Packing : Meat-Emulsions, Ground Meat, Pet Foods, Extracts , Minced Meat , Sausage Meat.
• Beverage : Beer , Wort , Yeast , Alcohols & Wines soft Drinks , Fruit Concentrates , Fruit Drinks , Essences.
• Pharmaceutical : Pill Pastes , Syrup , Slurries , Extracts , Latex Emulsion.
• Canning :- Tomato Paste , Fruit Paste , Cream Style , Vegetables , slurries , Puddings , Jams , Jellies , Salads Dressings , Mayonnaise , Baby Foods , Soups , Stews.
• Confectionery : Syrups , Cream Fillings , Chocolates , Coffee Caramel.
• Cosmetics : Heand & Face Creams , Lotion Shampoos , Dyes , Alcohols , Essential Oils.

Options :

• Manual Control By-pass Relief Valve
• Jacked Rotor case
• Electric Heating Tapes
• Trolley

We ensure our entire range of products is per domestic as well as transnational quality standards, optimum grade and worth the price paid by purchaser. According to your convenience, to pay for an order, our company can settle on a method of payment. We are familiar with online and offline payment methods. We only want to make payment safe and secure for you.

Features :

• Highly Efficient Hydraulics Design
• Fabricated Components
• Less Friction in system (Pressed Components)
• No Expensive Foundation Required
• Easy Installations
• Small Floor Space.

Applications  :

• Vertical multistage centrifugal pumps type MC are designed for a wide range of applications.
• Water supply systems.
• Water Circulation /Water Treatment Plant
• Hydro Pneumatic Systems / Condensate transfer.
• Agriculture /Industrial Washing
• Coolant Circulation.
• Boiler Feeding / Fire Fighting / Booster Applications.
• Ship Building / RO-DM Plants.
• Sprinkle Irrigation.

Features :

• Electric Motorised driven system
• Totally Enclosed drive Mechanism
• Heavy duty precision gear box
• Large Air Chamber
• Self Oiling system & quick action Relief valve
• Totally Dependable , Reliable and Efficient performance.

Applications :

• Boilers, Pressure Vessels, C.I. Mains, Castings, Gas Cylinders
• Parts Subjected to Hydraulic Pressure Standard Accessories
• M.S. Fabricted Pail, Brass Foot Valve
• G.M / S.S Check Valve
• Brass Pressure Release Cock
• Pressure Hose With Attachments
• Pressure Gauge
• For Testing Up to 705 Kg/Cm2 (10, 000 PS.I.).

Applications :

• Airport & Ship Yards.
• Railway Workshop & Cleaning Yards.
• State Transport & Workshop.
• Industrial & Agriculture Purpose.
• Auto Two & Four Wheel Workshop for washing /cleaning application.
• RO water and sea water high pressure application

DC Motor Specifications:-

12 Volt DCPM DC Motor suitable for above pump, Take approximately 3am per e current.

Features :

• Supplied Pump Connected with Flexible
• Shaft OF 5.5 Meters.
• Pump Design for max head to 40 meters. Max discharge 1200 LPM.
• Pump available with Motor or Engine. Suction Size 3" and Delivery Size 2.5"

Features :

• Can withstand wide voltage fluctuation – from 300-440 volts.
• Suction lift up to 7.5 meters.
• Top flat efficiency curve : minimum efficiency variation in the entire operating range
• Efficiency at par with internationally available pumps – higher upto 10 points than minimum required by Indian standards specification
• Models are with IP – 44 protection. Models with IP – 55 protection are also available on request
• Class of insulation 'B' ( 'F' Class for 9.3 kw and 11.0 Kw ratings).
• Designed to prevent overloading and motor burning
• Dynamically balanced rotating parts ensure minimum vibrations
• Replaceable wearing parts results in longer life
• Designed for automatic air release during priming
• Continuous rated motor
• Inside and outside of pump covered by anticorrosive paint

Applications :

• Irrigation.
• Industries for clear water handling
• Water supply for domestic use in apartments, Buildings and hotels.
• MMP Series Three Phase Pumps : Single stage, High speed horizontal, Centrifugal , Monoblock with volute type delivery casing

Applications

• “TEP” WATER METER
• DOMESTIC WATER METER SINGLE JET CALSS 15 MM (1/2" 3/4")
• Complies with class A & B of IS-770/94 also ISO & EEC

CONSTRUCTION

• Highly sensitive to low flow rates and very accurate over its entire flow range.
• Having low loss of head which allows water to reach upper floors.
• Sealed against tampering.
• Totaliser leakproof, totally dry.
• Self lubricating gears and bearings.
• An inferential, single jet, super dry straight reading type, hermetically sealed water meter with magnetic drive.

Applications :

• Effluent with slurry and solids
• Dewatering man-hole sewers
• De - silting
• Strom/Flood water transfer
• Drainage of sewage from the building basements, hotel industry, wastes water from factories
• Drainage of sewage from industrial process factories.emptying of septic tanks, cesspits and sewage pump stations.
• Pumping surface and drainage water from garages and sprinkler systems
• Quick out installation
• Cooling Jacket Arrangement,
• Single phase pumps are provide with auto water level control & Thermal Protection.

Material of Construction :

• Motor Body : CI/SS,
• Cooling Jacket : MS/ SS,
• Casing : CI/MS,
• Impeller : Cast Iron / SS,
• Shaft : SS,
• Hardware : SS ,
• Oil Chamber : CI Quick Out
• Coupling : CI / SS
• Strainer : SS with 6 or 10 mm round holes

Mechanical seal :

• TC/TC or Silicon Carbide , Bi Directional
• Twin Mechanical seal with various face combination Looking to the

Application :

Cable :

PVC Insulated Double Sheathed

Copper Conductor flexible Cable
