Boost Electronics

Nashik, Maharashtra

• Min. Order (MOQ) 1 Number
• Country of Origin India
• Driven Type Eelectric
• Color Green
• Condition New
• Application Industrial
• Certification CE Certified, ISO 9001:2008
• Voltage 24VDC, 24VDC
• Type Single Channel Relay Board
• Warranty 1yrs
• No of Relay Channel 01 Channel
• Rating of Contacts 8 A at 30V DC and 250V AC for resistive load
• Coil Resistance 1, 440 Ohms + 10%.
• Relay Socket 5A, 250 V AC
• Input Current/ Channel 17 mA per channel
• Contact Type : 2 Change Over 2 CO

Additional Information:

• Brand Name Bost
• Design Standard
• Application Industrial
• Type Relay Modules
• Warranty 1Year
• Country of Origin India
• Number of Poles 2

• Color Green
• Design Standard
• Voltage 22 V
• Type Relay Modules
• Warranty 1Year
• Country of Origin India
• Number of Poles 8

• Min. Order (MOQ) 1 Piece
• Driven Type Eelectric
• Color Green
• Condition New
• Application Industrial
• Certification CE Certified, ISO 9001:2008

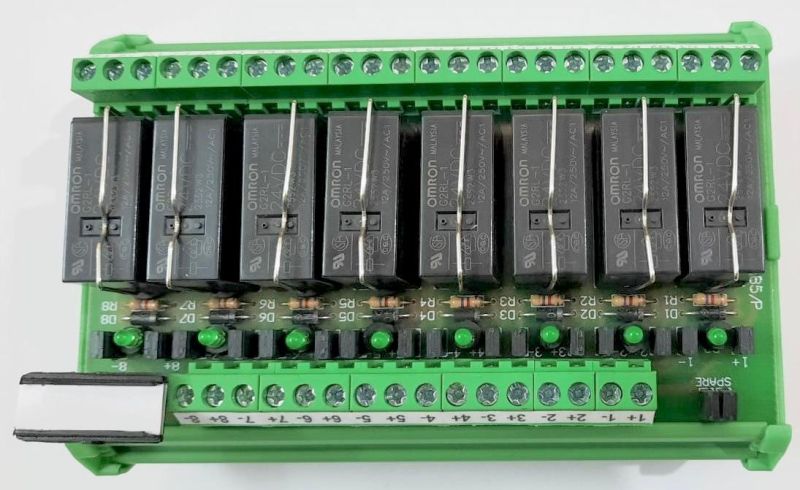

• Voltage 230 VAC
• Type Eight Channel Relay Module
• Warranty 1yrs
• Country of Origin India
• Relay Type Electro-Mechanical, G2R-1
• No of Relay Channel 08
• Coil Resistance 4660 Ohms.
• Change Over 1 CO
• Input Current/Channel 11 mA @230V AC
• Terminal Screw Type
• Relay Make Omron

Additional Information:

• Color Green
• Design Standard
• Application Industrial
• Voltage 0-12 VDC
• Type Relay Modules
• Warranty 1Year
• Country of Origin India

• Min. Order (MOQ) 1 Number
• Brand Name Boost
• Color Green
• Design Standard
• Condition New
• Application Industrial
• Size 115 mm X 90 mm X 66 mm, 115 mm X 90 mm X 66 mm
• Certification CE Certified, ISI Certified
• Voltage 24 VDC, 24 V DC
• Type Relay Modules
• Theory RP24D04-2CO-M/P
• Warranty 1Year
• Country of Origin India
• Current 17 mA
• Number of Poles 2
• No of Relay Channel 04
• Coil Resistance 1, 440 ohms +/- 10 %.
• Input Current/ Channel 16 mA per channel
• Terminals Screw Type
• Conductor size 0.25 -2.5 sq.mm flexible
• Relay Make / Manufacturer OMRON
• Relay Type G2RL-2, Electro-mechanical.
• Contact Type 2 CO

Additional Information:

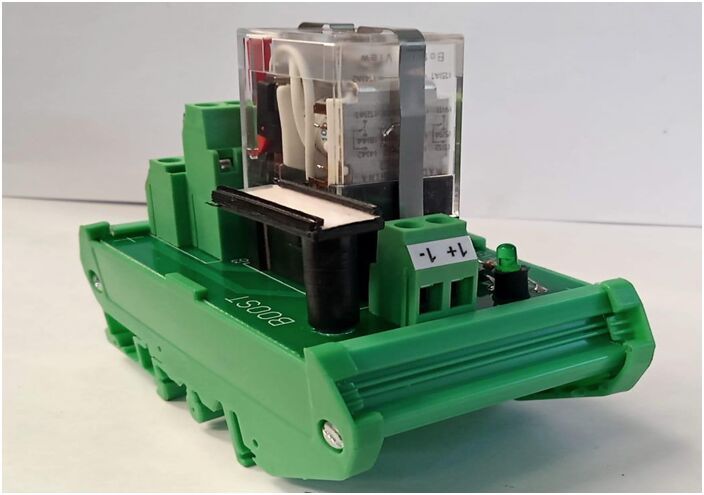

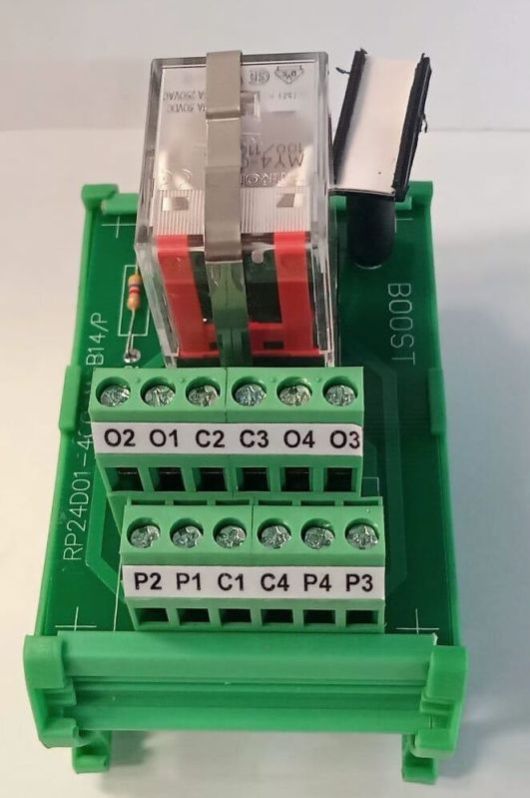

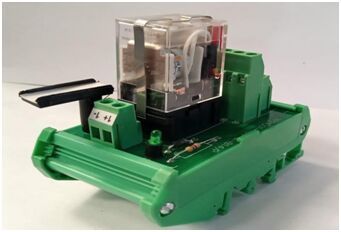

• Min. Order (MOQ) 1 Number
• Brand Name Boost
• Color Green
• Design Standard
• Condition New
• Application Industrial
• Size 54 mm X 90 mm X 80 mm
• Certification CE Certified, ISI Certified
• Voltage 24 VDC, 24 V DC
• Type Relay Modules
• Theory RP24D01-4CO-M-B14/P
• Warranty 1Year
• Country of Origin India
• Current 38 mA
• Number of Poles 4
• No of Relay Channel 01
• Rating of Contacts 3 A at 30V DC and 250V AC
• Coil Resistance 636 Ohms + 10%.
• Relay Socket 5 A, 250 V AC
• Input Current/ Channel Input Current/ Channel
• Terminals Screw type
• Conductor size 0.25 -2.5 sq.mm flexible
• Relay Make / Manufacturer OMRON
• Relay Type MY4, Electro-mechanical
• Contact Type 4 Change Over

Additional Information:
