Our Products

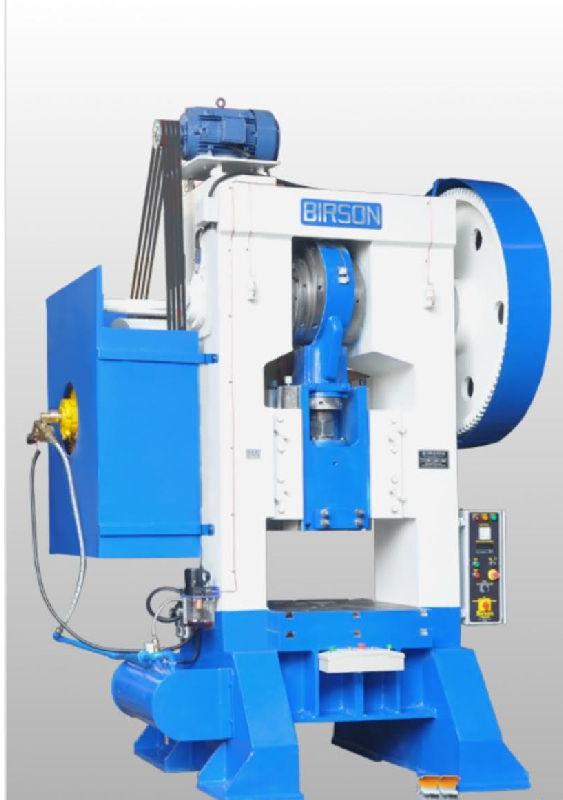

Pneumatic Power press machine
Specifications
Capacity in Tons | PP-30 | PP-50 | PP-75 | PP-100 | PP-150 | PP-200 | PP-250 | PP-300 |
Bed Size in mm | 435x460 | 460x500 | 525x600 | 575x625 | 650x690 | 800x850 | 850x900 | 925x950 |
Dist. Bed to Ram | 300 | 340 | 375 | 400 | 450 | 500 | 550 | 600 |
Punch Bore | 32 | 40 | 45 | 50 | 55 | 63 | 65 | 70 |
Stroke Length | 80 | 100 | 110 | 125 | 125 | 150 | 150 | 175 |
Ram Adjustment | 25 | 35 | 35 | 35 | 50 | 50 | 50 | 50 |
Shut Height | 185 | 210 | 250 | 275 | 300 | 300 | 350 | 400 |
Stroke Per Minute | 60 | 60 | 50 | 45 | 40 | 35 | 35 | 35 |
Bore in Table | 120 | 150 | 175 | 200 | 225 | 250 | 250 | 300 |
Power Required | 3HP | 5HP | 7.5HP | 10HP | 15HP | 20HP | 25HP | 30HP |
RPM | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
Pulley Size | 150 | 150 | 150 | 150 | 175 | 200 | 200 | 225 |
Air pressure for pneumatic clutch(Kgs/Cm2) | 5.5 to 6 | 5.5 to 6 | 5.5 to 6 | 5.5 to 6 | 5.5 to 6 | 5.5 to 6 | 5.5 to 6 | 5.5 to 6 |
Our Power press Machines are capable of performing a wide range of pressing and shaping operations, allowing the user to choose the equipment that best suits his needs. The best press for the job may be determined by taking into account the purpose, the size of the produced items, the material to be used, and the needed output.
Additional Information:
Delivery Time : 2-3 weeks

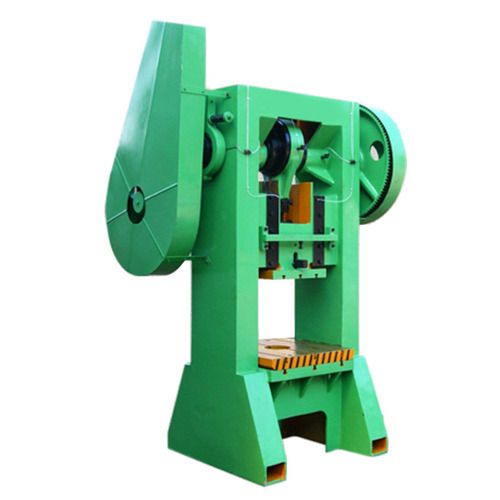

Specifications
Capacity in Tons | PP-10 | PP-20 | PP-30 | PP-50 | PP-75 | PP-100 | PP-150 | PP-200 | PP-250 |
Bed Size in mm | 350X425 | 375X500 | 450X600 | 500X700 | 550X800 | 600X900 | 720X1000 | 800X1100 | 850x1200 |
Dist. Bed to Ram | 250 | 275 | 315 | 340 | 400 | 455 | 550 | 600 | 625 |
Punch Bore size | 25 | 28 | 32 | 35 | 40 | 50 | 55 | 63 | 65 |
Stroke Length | 50 | 63 | 83 | 95 | 105 | 125 | 125 | 140 | 150 |
Ram Adjustment | 25 | 28 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
Shut Height | 175 | 200 | 200 | 210 | 250 | 275 | 325 | 350 | 325 |
Stroke Per Minute | 70 | 65 | 60 | 55 | 45 | 45 | 35 | 35 | 30 |
Bore in Bed | 100 | 110 | 125 | 150 | 175 | 200 | 225 | 250 | 275 |
Power Required | 2HP | 2HP | 3HP | 5HP | 7.5HP | 10HP | 15HP | 20HP | 25HP |
RPM | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
Pulley Size | 125 | 125 | 150 | 150 | 150 | 150 | 175 | 200 | 200 |

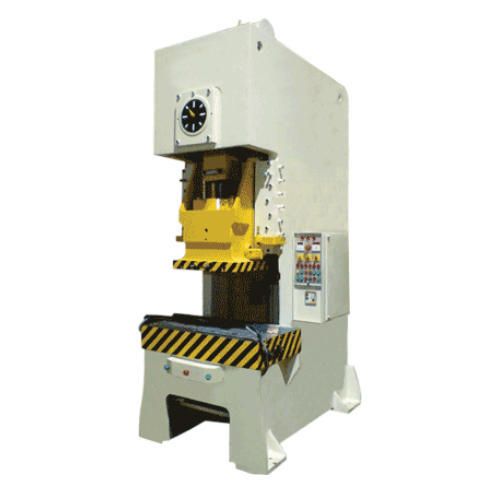

Specifications
Model | GCSP | GCSP | GCSP | GCSP | GCSP | GCSP | GCSP | GCSP | |
Capacity | Tons | 32 | 40 | 63 | 80 | 100 | 160 | 200 | 250 |
Strokes | SPM | 50 | 50 | 50 | 45 | 45 | 40 | 40 | 35 |
Stroke Length | mm | 70 | 80 | 100 | 100 | 125 | 160 | 200 | 200 |
Shut height | mm | 250 | 275 | 300 | 310 | 325 | 400 | 450 | 475 |
Slide adjustment | mm | 50 | 55 | 60 | 70 | 80 | 100 | 110 | 125 |
Slide area (L-R x F-B) | mm | 350x250 | 400x350 | 500x400 | 550x415 | 625x450 | 700x600 | 900x800 | 915x815 |
Bed area (L-R x F-B) | mm | 640x400 | 800x450 | 850x500 | 950x575 | 1000x625 | 1125x750 | 1250x800 | 1300x815 |
Bed thickness | mm | 63 | 70 | 80 | 90 | 100 | 125 | 140 | 150 |
Power Required | Hp/Rpm | 03/01/40 | 05/01/40 | 7.5/1440 | 7.5/1440 | 10/01/40 | 15/1440 | 20/1440 | 25/1440 |
Required air pressure | Kg/cm2 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Die cushion cap. | Tons | 2.5 | 4.5 | 4.5 | 6.3 | 8 | 10 | 14 | 14 |
Stroke | mm | 50 | 50 | 50 | 50 | 75 | 100 | 100 | 125 |
Pad area | mm | 290x200 | 335x230 | 380x260 | 425x300 | 475x325 | 535x425 | 600x425 | 600x475 |
Air pressure | Kg/cm2 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |

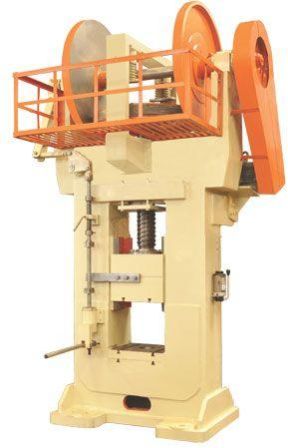

Specifications
Type | Nominal Capacity | Dia of Screw | Stroke of Ram | Number of strokes | Size of Table | Max.Distance B/W Table & Ram | Min.Distance B/W Table & Ram | Bore in the table | Bore in the Ram | Pulley Size | Power Required |
Tons | mm/inch | mm/inch | Per mintue | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | H.P./R.P.M | |
FSP | 30 | 90/3½ | 150/6 | 40 | 325x350/13x14 | 300/12 | 175/7 | 75/3 | 38/1½ | 100/4B | 03/01/40 |
FSP | 50 | 115/4½ | 200/8 | 30 | 325x400/13x16½ | 325/13 | 175/7 | 80/3¼ | 38/1½ | 100/4B | 05/01/40 |
FSP | 100 | 140/5½ | 275/11 | 25 | 430x470/17x18½ | 450/18 | 200/8 | 100/4 | 50/2 | 125/5C | 10/01/40 |
FSP | 150 | 160/6¼ | 300/12 | 20 | 450x525/18x21 | 475/19 | 225/9 | 118/4½ | 64/2½ | 125/5C | 15/1440 |
FSP | 200 | 180/7 | 355/14 | 18 | 500x540/20x21½ | 500/20 | 250/10 | 125/5 | 64/2½ | 175/7C | 20/960 |
FSP | 300 | 200/8 | 380/15 | 16 | 600x600/24x24 | 580/23 | 280/11 | 140/5½ | 64/2½ | 175/7C | 25/960 |
FSP | 400 | 240/9½ | 405/16 | 14 | 700x700/28x28 | 600/24 | 300/12 | 150/6 | 90/3½ | 175/7C | 30/960 |
FSP | 500 | 280/11 | 430/17 | 12 | 760x760/30x30 | 625/25 | 330/13 | 150/6 | 115/4½ | 200/8C | 40/960 |
FSP | 630 | 290/11½ | 458/18 | 10 | 810x810/32x32 | 660/26 | 355/14 | 150/6 | 115/4½ | 200/8C | 50/960 |
FSP | 800 | 305/12 | 480/19 | 8 | 865x865/34x34 | 710/28 | 380/15 | 165/6½ | 125/5 | 200/8C | 60/960 |
FSP | 1000 | 330/13 | 530/21 | 6 | 915x915/36x36 | 760/30 | 405/16 | 190/7½ | 125/5 | 200/8C | 75/960 |

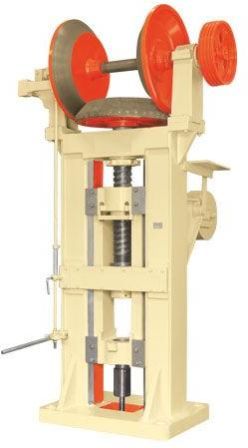

Specifications
Type | Nominal Capacity | Dia of Screw | Stroke | Slide Table | Pieces/Hour | Max.Dia of Bolt Capable Forging | Max.length of bolt Capable Forging | Base of M/C | Pulley size | Power Required |
Tons | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | H.P./R.P.M | ||
VFP | 50 | 85/3¼ | 300/12 | 200/8 | 800-1200 | 12/½ | 250/10 | 840x585 | 100/4B | 03/01/40 |
VFP | 100 | 110/4¼ | 400/16 | 225/9 | 600-1000 | 20/¾ | 300/12 | 930x610 | 100/4B | 7.5/1440 |
VFP | 125 | 115/4½ | 450/18 | 225/9 | 500-900 | 22/⅞ | 400/16 | 940x710 | 100/4B | 10/01/40 |
VFP | 150 | 130/5⅛ | 500/20 | 250/10 | 400-700 | 32/1¼ | 450/18 | 1080x750 | 125/5C | 15/1440 |
VFP | 200 | 135/5⅜ | 550/22 | 275/11 | 300-600 | 38/1½ | 500/20 | 1115x790 | 125/5C | 20/1440 |
VFP | 300 | 155/6⅛ | 600/24 | 275/11 | 200-500 | 50/2 | 600/24 | 1200x860 | 200/8C | 25/960 |
VFP | 400 | 175/7 | 650/26 | 300/12 | 150-300 | 63/2½ | 650/26 | 1320x1000 | 200/8C | 30/960 |
VFP | 500 | 200/8 | 700/28 | 335/13 | 80-250 | 75/3 | 700/28 | 1470x1050 | 200/8C | 40/960 |
VFP | 630 | 225/9 | 760/30 | 355/14 | 70-225 | 90/3½ | 760/30 | 1525x1100 | 200/8C | 50/960 |
VFP | 800 | 250/10 | 810/32 | 380/15 | 60-200 | 100/4 | 810/32 | 1600x1150 | 200/8C | 60/960 |
VFP | 1000 | 275/11 | 865/34 | 405/16 | 50-150 | 115/4½ | 860/34 | 1750x1250 | 200/8C | 75/960 |
Our Power press Machines are capable of performing a wide range of pressing and shaping operations, allowing the user to choose the equipment that best suits his needs. The best press for the job may be determined by taking into account the purpose, the size of the produced items, the material to be used, and the needed output.
Additional Information:
Delivery Time : 2 weeks
Specifications
Capacity in Tons | PP-10 | PP-20 | PP-30 | PP-50 | PP-75 | PP-100 | PP-150 | PP-200 | PP-250 |
Bed Size in mm | 350X425 | 375X500 | 450X600 | 500X700 | 550X800 | 600X900 | 720X1000 | 800X1100 | 850x1200 |
Dist. Bed to Ram | 250 | 275 | 315 | 340 | 400 | 455 | 550 | 600 | 625 |
Punch Bore size | 25 | 28 | 32 | 35 | 40 | 50 | 55 | 63 | 65 |
Stroke Length | 50 | 63 | 83 | 95 | 105 | 125 | 125 | 140 | 150 |
Ram Adjustment | 25 | 28 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
Shut Height | 175 | 200 | 200 | 210 | 250 | 275 | 325 | 350 | 325 |
Stroke Per Minute | 70 | 65 | 60 | 55 | 45 | 45 | 35 | 35 | 30 |
Bore in Bed | 100 | 110 | 125 | 150 | 175 | 200 | 225 | 250 | 275 |
Power Required | 2HP | 2HP | 3HP | 5HP | 7.5HP | 10HP | 15HP | 20HP | 25HP |
RPM | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
Pulley Size | 125 | 125 | 150 | 150 | 150 | 150 | 175 | 200 | 200 |
Specifications
Type | Nominal Capacity | Dia of Screw | Stroke of Ram | Number of strokes | Size of Table | Max.Distance B/W Table & Ram | Min.Distance B/W Table & Ram | Bore in the table | Bore in the Ram | Pulley Size | Power Required |
Tons | mm/inch | mm/inch | Per mintue | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | H.P./R.P.M | |
FSP | 30 | 90/3½ | 150/6 | 40 | 325x350/13x14 | 300/12 | 175/7 | 75/3 | 38/1½ | 100/4B | 03/01/40 |
FSP | 50 | 115/4½ | 200/8 | 30 | 325x400/13x16½ | 325/13 | 175/7 | 80/3¼ | 38/1½ | 100/4B | 05/01/40 |
FSP | 100 | 140/5½ | 275/11 | 25 | 430x470/17x18½ | 450/18 | 200/8 | 100/4 | 50/2 | 125/5C | 10/01/40 |
FSP | 150 | 160/6¼ | 300/12 | 20 | 450x525/18x21 | 475/19 | 225/9 | 118/4½ | 64/2½ | 125/5C | 15/1440 |
FSP | 200 | 180/7 | 355/14 | 18 | 500x540/20x21½ | 500/20 | 250/10 | 125/5 | 64/2½ | 175/7C | 20/960 |
FSP | 300 | 200/8 | 380/15 | 16 | 600x600/24x24 | 580/23 | 280/11 | 140/5½ | 64/2½ | 175/7C | 25/960 |
FSP | 400 | 240/9½ | 405/16 | 14 | 700x700/28x28 | 600/24 | 300/12 | 150/6 | 90/3½ | 175/7C | 30/960 |
FSP | 500 | 280/11 | 430/17 | 12 | 760x760/30x30 | 625/25 | 330/13 | 150/6 | 115/4½ | 200/8C | 40/960 |
FSP | 630 | 290/11½ | 458/18 | 10 | 810x810/32x32 | 660/26 | 355/14 | 150/6 | 115/4½ | 200/8C | 50/960 |
FSP | 800 | 305/12 | 480/19 | 8 | 865x865/34x34 | 710/28 | 380/15 | 165/6½ | 125/5 | 200/8C | 60/960 |
FSP | 1000 | 330/13 | 530/21 | 6 | 915x915/36x36 | 760/30 | 405/16 | 190/7½ | 125/5 | 200/8C | 75/960 |
Additional Information:
Delivery Time : 30-45 days
Specifications
Model | GKJP | GKJP | GKJP | GKJP | |
Capacity | Tons | 250 | 400 | 600 | 1000 |
Ram Stroke | mm | 120 | 150 | 160 | 170 |
Strokes | s.p.m | 60 | 50 | 40 | 35 |
Shut Height (SDAU) | mm | 350 | 375 | 425 | 500 |
Bed Dimension (LR-FB) | mm | 500x570 | 575x650 | 650x700 | 800x825 |
Bed Thickness | mm | 85 | 100 | 150 | 160 |
Ram Adjustment | mm | 12 | 15 | 16 | 17 |
Bottom Knock Out Stroke | mm | 70 | 80 | 110 | 120 |
Bottom Knock Out capacity | Tons | 10 | 15 | 20 | 30 |
Ram Knock Out Stroke | mm | 10 | 12 | 14 | 16 |
Ram Knock Out capacity | Tons | 5 | 7.5 | 7.5 | 10 |
Power Required | H.P. | 20x6p | 30x6p | 40x6p | 50x6p |
Ram Adjustment Motor | H.P. | 1 | 1 | 1 | 1 |
Lubrication Motor | H.P. | 0.75 | 0.75 | 0.75 | 0.75 |
Req. Air Pressure | KGS | 5.5 | 5.5 | 5.5 | 6 |
