Our Products
Our offered Product range includes TRAY DRYER CHAMBER, Cytogenetic Drying Chamber, Air Shower Tunnel, WET PROCESS STATION and Down Flow Booth.

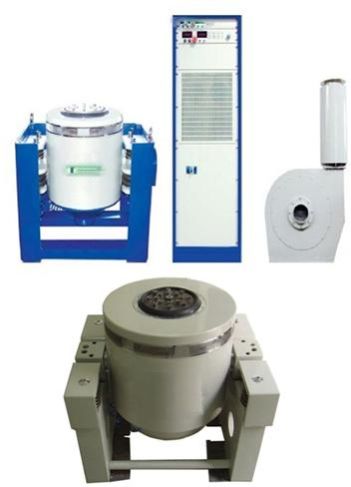

WEIBER has designed customized Vibration test system to meet the generalized testing requirements of various segments of industry and research institutions like Automobile, Electronics, Telecom, Lighting, Aerospace, Packaging, DRDO and Atomic research centre.
We are manufacturer of electrical vibration series products, adopted the 'double-magnetic circuit can be completed in X, Y, Z three axis sinusoidal vibrationtest and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test.
TheTray Drier, Tray Drying Chambers, Industrial Tray Drierfrom Weiber are conventional heating units that are commonly employed for drying fruits, vegetables, herbs, roots, meat, seafood, pasta and other food and non-food items. They are used for both domestic as well as industrial applications and find widespread usage in food processing industries, bakeries, pharmaceutical industries, powder drying and processing units, plastic drying units and drug production and processing units. These drying chambers are available in various standard sizes and can also be customized to suit specific requirements.
The WeiberTray Drying Chambermanufacturers have made these chambers easy to operate, low maintenance equipments that are designed for highly safe, reliable and economical operation. They consist of an insulated cabinet, fitted with trays for holding the sample to be dried. The drying chambers are double walled units that feature high grade SS 304 stainless steel interiors and external walls made up of powder coated, rust proofed thick PCRC sheets. The internal walls feature fully welded surfaces, ensuring smooth, easy to clean and leakage proof surfaces. The gap between the walls is filled with high quality mineral glass wool fibrous insulation or PUF cellular insulation for maximum thermal efficiency. The equipment uses sheathed air heaters for indirect heating of the chamber and efficient fans and motor for maintaining a continuous air circulation for uniform distribution of heat. The fans and motor are designed for minimum vibration and low noise operation.
WORKING SIZES
900 x 600 x 600 mm | 6.0KW | 12 |
900 x 900 x 900 mm | 7.0KW | 18 |
1200 x 900 x 900 mm | 7.0KW | 24 |
1500 x 900 x 900 mm | 10.0KW | 30 |
15800 x 900 x 600 mm | 10.0KW | 36 |
1800 x 900 x 900 mm | 18.0KW | 48 |
2400 x 900 x 900 mm | 24.0KW | 60 |
2400 x 1200 x 900 mm | 30.0KW | 96 |
Customizable sizes are also available
Temperature Range | 5 deg. C above ambient to 350 deg. C |
Control Accuracy | ±0.5% |
Display | LCD |
Temperature Sensor | PT-100 |
Controller | Nano technology based ergonomic controller |
Interior Construction | Stainless Steel |
Nominal Power | 1250 -2500 W |
Nominal Voltage | 230 V |
Frequency | 50/ 60 Hz |
Quality of samples preparations for chromosome analysis depends largely on the environmental conditions in which the final evaporation of the methyl acetate or ethyl acetate fixative takes place. The combined effects of temperature and relative humidity have a noticeable effect on the quality of the metaphase.
Given that temperature and humidity are in constant variation, not only from season to season, but also throughout each day, it is easy to understand the requirement for a system that enables cytogenetists to work always under standardised conditions.
WEIBERCytogenetic Drying Chamberhas been specifically designed to minimize all problems related to those critical parameters, temperature and humidity, which are very unstable. It allows the technician to set and control both temperature and humidity, thus defining the ideal working conditions for chromosomes. WEIBERCytogenetic Test Chamberprovides the optimum controlled temperature and humidity environment for achieving ideal chromosome spreading results.
Specification | values |
Power Requirements | 220/230V, 50/60Hz |
Electricity | 1 phase or 3 phase as requested |
External Dimension (WXDXH) | 1090mm x 710mm x 1410mm (can be adjusted onrequest) |
Internal Dimension (WXDXH) | 710mm x 460mm x 480mm (can be adjusted onrequest) |
Viewing Area (WXH) | 810mm x 580mm (can be adjusted onrequest) |
Workspace Volume | 156 Lts.(approx..) |
Temperature Range | +20° C to +40° C |
Temperature Uniformity | ±0.7° C) |
Humidity Range | 25%-75%RH(limited by 5° C dewpoint) |
Humidity Uniformity | ±3%RH |
Dewpoint Range | 5° C to 23° C |
Weight | 204kg |
Display | LCD |
Adjustable alarm limits for temperature | Optional |
Safety thermostats | |
Automatic temperature setting | Yes |
Adjustable limits | Yes |
TheAir Shower Tunnelfrom WEIBER is a protected passageway that allows the user to pass into controlled environment free from surface contaminants. these are designed to provide sterile air streams for the removal of dust and contaminating particles from the clothes and skin surfaces of the user as he/she stands in the tunnel or walks through it.They provide the maximum decontamination solutions for particle sensitive processes and other research applications requiring highly sterile working conditions.
OurTunnel Air Showerare easy to operate and are quite economical. OurAir Shower Tunneluses a combination of basic floor plan styles with individual air shower units coupled together side by side or end to end to create a tunnel configuration for the passage of large groups of personnel. They are designed to meet all the industrial specifications, making them perfect for use in pharmaceutical industries, microelectronics and semiconductor industries, aerospace industry, high precision manufacturing units and various other industrial applications.
AVAILABLE IN 3 BASIC CONFIGURATIONS
One side flow: The unit allows one-way operation, with the clean side door locked and the grey side door unlocked at the idle state. This mode of operation helps in controlling the flow of traffic in and out of the clean room for maintaining maximum sterility in the working area.
Two side flow:The unit allows both side flows, allowing the air showers to be activated in both the directions. The user can exit through the clean room door or the grey side door, without compromising the sanctity of the clean air environment.
Tower flow:the flow is from the upper roof of the shower.
Constructions | Stainless Steel |
Operation Time (Adjustable) | 0-9,990 seconds |
Pre Filter | Washable pre-filter unit (Non-WovenSynthetic Polyester) |
HEPA Filters | Glass pleated non-woven fabric filter having 99.99% efficiency 0.3 micron particle size. |
Air Flow | One side/two side/tower flow/multidirectional |
Face velocity | 6000 ft./min + 20 feet |
Air Flow Control | Solid State Control Unit |
Illumination | Fluorescent light illumination greater than 800 lux on work table |
Blower Assembly | Centrifugal lubricated bearing type ISI marked assembly |
Noise level | Noise level less than 60 dB |
Nominal voltage | 220-230 Volts, 50 Hz Single Phase |
Power Requirements | 500 watts – 950 watts (Model specific) |
Frequency | 50/60 Hz |
WEIBER free-standing, hard wall, modular, prefabricated Clean Room system that is designed to provide superior Clean Room performance and aesthetic appeal. Its modular, prefabricated design combines functionality with flexibility to create systems that will meet your cleanroom needs of today and into the future. It is known as Modular Clean Room.
TheseClean Roomare available from Class 100, 000 to Class 10. The Clean Room are available with open free spans from 6 to 34 feet and interior room heights of 8 to 16 feet. Multiple rooms can be combined to form larger cleanroom systems. The system allows for additional sections to be added to existing rooms to expand the cleanroom at a future date. Cleanroom has high visual appeal and is often used as a showcase cleanroom system. The large clear walls offer good visibility into and out of the room. Clear anodized aluminum panels cover the filter light area above the drop ceiling, so the exterior has a clean appearance. These Room also known asHard Wall Clean RoomandSoft Wall Clean Room.
Clean Room construction | Stainless Steel/Mild Steel |
Interior height | 8 - 14 feet Height |
Adjustable pressure | 0.06W.C. |
Modular width | 6 ~34 feet |
Rom Size (L X B X H) | 4 X 7 X 14 feet |
Sliding Door width | 36, 48 and 60 inch |
Entrance Door Size | 45 X 93 inch |
Filter | HEPA Filter 99.97% efficient |
Types | Class 100,000 to Class 10 |
Wiring | Reloc Wiring System |
Current Required | 20 amp |
WEIBER cleanroom tents provide outstanding performance as well as aesthetic appeal. Cleanroom tents are composed of walls of heavy plastic sheeting supported by a strong metal frame. This superior construction provides the flexibility to easily assemble, reconfigure and move cleanroom tents. Cleanroom tents are available in both vertical and horizontal air flow configurations. All cleanroom tents from Clean Air Products are equipped with HEPA OR ULPA filtration systems to provide either positive or negative air pressure. Softwall cleanroom tents are available from Class 100, 000 to Class 10. Cleanroom tents are a low-cost option for industries seeking high-performance particulate controlled environments. The Clean Room Tent is a designed and constructed room in which the air supply, air distribution, filtration of air supply, materials of construction, and operating procedures, are regulated to control airborne particle concentrations to meet appropriate cleanliness levels.
Clean Room construction | Stainless Steel/Mild Steel |
Interior height | 8 - 14 feet Height |
Adjustable pressure | 0.06W.C. |
Outer Room Size | L-4 XW- 7 X H-14 ft. |
Filter | Filter |
Types | Class 100,000 to Class 10 |
Wiring | Reloc Wiring System |
Current Required | 20 amp |
PVC Curtain | 200 x 3 mm |
WEIBER free-standing, hard wall, modular, prefabricated cleanroom system that is designed to provide superior Cleanroom performance and aesthetic appeal. Its modular, prefabricated design combines functionality with flexibility to create systems that will meet your cleanroom needs of today and into the future.
These rooms are available from Class 100, 000 to Class 10. The rooms are available with open free spans from 6 to 34 feet and interior room heights of 8 to 16 feet. Multiple rooms can be combined to form largerModular Clean Roomsystems. The system allows for additional sections to be added to existing rooms to expand theclean roomat a future date. Cleanroom has high visual appeal and is often used as a showcase cleanroom system. The large clear walls offer good visibility into and out of the room. Clear anodized aluminum panels cover the filter light area above the drop ceiling, so the exterior has a clean appearance. These Room also known asHard Wall Clean RoomandSoft Wall Clean Room.
Clean Room construction | Stainless Steel/Mild Steel |
Interior height | 8 - 14 feet Height |
Adjustable pressure | 0.06W.C. |
Modular width | 6 ~34 feet |
Rom Size (L X B X H) | 4 X 7 X 14 feet |
Sliding Door width | 36, 48 and 60 inch |
Entrance Door Size | 45 X 93 inch |
Filter | HEPA Filter 99.97% efficient |
Types | Class 100,000 to Class 10 |
Wiring | Reloc Wiring System |
Current Required | 20 amp |
If you are concerned about duct corrosion, hazardous stack emissions or other environmental factors associated with a fume hood you may want to consider a scrubber. WEIBER Fume Hood Scrubber provides excellent air pollution control for water soluble chemicals present in the laboratory fume hood exhaust fumes. These Scrubber Fume Hood are designed to save space and provide effective air pollution control and operator safety protection for fume hoods. This is especially important for per chloric acid fume hoods, so as to prevent a build-up of potentially explosive perchlorate salts on the exhaust fan, as well as, on the exhaust ducting system.
Constructions | thick PCRC, pre coated corrosion resistant GI sheet |
Table | Stainless steel sheet table of ss-304 grade/ fortified acid proof glazed tiles |
Sink | Stainless steel sink with tap |
Coating | Epoxy coating/ FRP lined |
Air flow | Unidirectional |
Air flow control | Three step air flow speed controller |
Blower assembly | Centrifugal lubricated bearing type ISI marked assembly |
Illumination | Fluorescent light illumination greater than 800 lux on work table. |
Noise level | Noise level less than 60 db |
Power requirements | 500 watts -750 watts( model specific) |
Nominal voltage | 220- 230 volts, 50Hz single phase |
Frequency | 50 |
Fume hood wet process are specially designed for the use in semiconductor research and manufacturing where tanks, rinsers, heated baths require control modules. These equipments work with a lower exhaust blower to provide a means of removal of toxic fumes and odors. These equipments have a wide range of applications in several research and development organizations, medical laboratories, or for industrial applications. These equipments also known asSemi Conductor Wet Bench.
These self-contained Wet Processing Cabinets provide the perfect turnkey solution for a wide range of cleaning and processing requirements. This Cabinets also known asWet Bench.
Available in polypropylene/SS-304Wet Process Stationfrom WEIBER manufactures both standard and customized microprocessor based Floor standing equipments. The fume hoods with PP construction are FRP lined and epoxy coated.
Dimension (length x depth x height) |
4’ x 2’ x 2’ |
5’ x 21/2 x 21/2 |
6’ x 3’ x 3’ |
Customizable sizes are also available
Construction: | All stress-relieved white polypropylene, 0.5" (13 mm) thick or all 304 stainless steel. Standard plumbing is PVC (specify 304 stainless steel or other desired material). |
Exhaust: | Ducted through a standard 10" (254 mm)-diameter flange positioned at the top rear of the cabinet (see airflow illustration). Specify other desired flange diameter or location. |
Drain: | 2" NPT female, located at bottom of sub-deck plenum. |
Power: | 120VAC, 60Hz or 220VAC, 50Hz, depending on component selection. Power outlets available for process equipment. |
Illuminator: | 800 lux |
Controls: | Instrument panel provides power switch, power indicating light, light switch, static pressure exhaust meter, and power fuse. Provisions are made for audible and visible pressure alarm, visible alarm silence, and for control of optional processing baths. |
Noise factor | 50 dBA |
Filter type | 99.99% efficient HEPA |
Air flow | Unidirectional |
Air flow control | Three step air flow speed controller |
Blower assembly | Centrifugal lubricated bearing type ISI marked assembly |
Power requirements | 500 watts -750 watts( model specific) |
Nominal voltage | 220- 230 volts, 50Hz single phase |
Frequency | 50 |
Laboratory Fume Extractorare widely used for removing smoke, fumes, mist, and fine powder. Mobile fume hood extractor is primarily designed for various pharmaceutical laboratories, various research and development industries and light duty industry. These CE marked equipments are extremely durable, reliable and easy to operate.
it uses an activated carbon filter and fan to remove the smoke, and noxious fumes, created from soldering and other chemical processes.
Fume Extractorincludes a flame-retardant, self-supportive flex arm for easy and varied placement. Other benefits include small footprint, portability handle, heavy-duty casters for easy maneuverability, quick change pre-filter, and a variable speed controller. The product also known asPortable Fume Extractor.
it comes equipped with patented filtration media that is customized specifically for welding fume control. In most cases, HEPA filtration is utilized and is up to 99.97% efficient on particles 0.3 microns and larger. Other options include ASHRAE [up to 95% efficient on particles 0.5 microns and larger] and ULPA filtration media [up to 99.9995% efficient on particles 0.12 microns and larger].
Cabinet Construction | 16 Ga. welded CRS steel |
Casters | Two large 8" diameter semi-pneumatic (front) wheels and two heavy duty swivel casters (back) |
Controls | All models include control circuitry and thermal protection. |
Filter Access | Hinged side door |
Filter Cleaning | Self-Cleaning Reverse Pulse Jet System which utilizes a one inch diaphragm valve. Requires 80-120 psi of shop supplied compressed air. 1/4" NPT female fitting is provided to accept field installed quickly connect.. |
Filter Gage | Dirty filter gage indicates pressure up to 10" H 2O |
Filtration | Two high efficiency cartridge filters: 12 3/4" diameter x 22" 382 sq. ft. total, 99.8% efficient at .5 micron |
Finish | Durable powder coat paint |
Noise Level | 73 dBa at 6' |
Power | 120V/60 hz/14 amp running or 208-240V/60 hz/8 amp running.Ten-foot power cord with molded plug standard on single phase models, 3 phases models available at no extra charge. |
Emergency Showerare equipments that are designed to remove contamination from personnel prior to entering a clean room and are available in both standard and customized models. These provides on-the-spot decontamination.Laboratory Emergency Showerare a combination of stainless steel that will be accord with the lustration grade, firm and resistant chemical. These are suitable for cleaning eyes, face, hands, and spray head can be used for washing the whole body. Eye wash and spray shower can be used at the same time or they can be used separately. Switch of the spray shower is placed at the top of the handle and the flow is steady and simple.
Accidental chemical exposures can still occur even with good engineering controls and safety precautions. As a result, it is essential to look beyond the use of goggles, face shields, and procedures for using personal protective equipment. Emergency showers and eyewash stations are a necessary backup to minimize the effects of accident exposure to chemicals.
Emergency Showerscan also be used effectively in extinguishing clothing fires or for flushing contaminants off clothing.
Application:Free standing emergency shower.
Shower Head:10" diameter plastic.
Valve:1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
Pipe And Fittings:Schedule 40 galvanized steel. Furnished with orange polyethylene covers on vertical piping for high visibility and corrosion resistance.
Supply:1-1/4" NPT female top or side inlet.
AVAILABLE OPTIONS
TheMedical Laminar Air Flow Systemprovides a safe and clean environment for compounding of hazardous and sterile drug preparations. The special design of our versatile laminar flow cabinet allows safe manipulation of sterile products with an inward air barrier that increases operator safety.
The mild steel constructedHospital Laminar Air Flow Systembench can be used for a wide variety of applications including sterility testing, cell culture, molecular biology, veterinary science, drug preparation, operation theatres, PCR (in active mode with UV light and timer option), food industry and assembly of optical and electronic components.
Air supplied to thisMedical Laminar Air Flow Systemis air from outside, made up by means of filtering, cooling, heating and humidifying to the required conditions.
Cabinet construction | Industrial grade mica clad wooden board / MS / SS- 304 |
Frequency | 50 Hz. |
Nominal voltage | 220-230 volts |
Air flow | Unidirectional |
Noise pressure(dB) (A) | <54dB |
Pre filter unit | Washable pre filter unit |
Illumination | Fluorescent light illumination greater than 800 lux |
Power Requirements | 500-750 watts |
RECIRCULATION LAMINAR AIR FLOW SYSTEMuses internal air by means of recirculation.These systems are ideal solution for laboratory testing, low risk pharmaceutical compounding and more. They are most suitable for bacteriological, toxicology, where the presence of highly air borne particles, bacterial and viral need to be controlled to provide clean working conditions. The system also known asCeiling Laminar Air Flow.
Our unit has unique airflow system that ensures consistent airflow and HEPA filter loading, significantly improving filter life. It provides reasonable user protection with its b air barrier containment thus, reducing pharmacists or operators fatigue which in turn increases user safety.
Cabinet construction | SS-304 |
Frequency | 630*538*550 |
Nominal voltage | 220-230 volts |
Air flow | Unidirectional |
Noise pressure(dB) (A) | <54dB |
Pre filter unit | Washable pre filter unit |
Illumination | Fluorescent light illumination greater than 800 lux |
Power Requirements | 500-750 watts |
Standard Models
Model No. | Size (LXW) |
ACM-917A | 900X900 |
ACM- 917B | 1200X900 |
ACM- 917C | 1200X1200 |
ACM- 917D | 1200X2400 |
Weiber offer easy solutions to control your dust and vapor in the form ofDown Flow Booth. Our equipment is designed to protect workers from breathing unsafe levels of particulates during material handling operations. Air flows from the booth ceiling, down across the operators head, and into a grille below the operators waist level, thereby drawing particulates away from the operators breathing zone. Weiber designs both standard and customizeddownflow boothfor clean room application. The containment booths are economical and offer unmatched usages and specifications.
Weiber tailor madeDown Flow Containment Boothare engineered to provide high levels of personnel protection, with the flexibility to enable a multitude of process operations to be carried out. The product also known asPowder Containment BoothandDownflow Containment Booth.
Filters | Aluminum framed HEPA filters with a minimum efficiency of 99.99% at 0.3 micron. |
Air flow | 90 FPM (0.45 m/s) / 10 FPM (0.05 m/s) |
Noise level | 65 DB |
Motor / Blower assembly | Direct drive continuous duty ¼ HP with sealed bearings. |
Pre filter | Washable type pleated pre filter with 90% efficiency. |
Particle Containment | Particle Containment (OEL < 100 µg/m3) |
Finish | Stainless steel, satin non glare or painted |
TheAir Cleanerfrom Weiber are designed for efficient removal of air pollutants such as disease causing bacteria and viruses, dust, pollen, mould, spores, dust other allergens from the indoor air. OurClean Room Air Purifieroffer six-stage filtration for maximum purification efficiency. They are capable of eliminating larger contaminants, as well as the tiny ultra-fine particles from the air we breathe. The equipment uses aluminum static plasma filters with more than 99.9% efficiency for removing dust particles and HEPA filters with a purification efficiency of more than 99.99% for removing drifting dust particles, pollen grains and germ particles even as small as 0.3 microns in size. these are also equipped with activated carbon for the elimination of harmful gases and a TiO2 semiconductor photo catalyst that effectively restrains the activation of viral particles. The ionizer purifiers ofAir Cleanersgenerate electrically charged ions that aid in the removal of airborne particles, whereas UV lamps produce ultraviolet radiations for maintaining antimicrobial conditions within the working area. Weiber manufactures and supplies both standard and customized electronicAir Purifierwith lowest prices, standard specification and universal usage for pharmaceutical industries.
Product size | 580*450*240(mm) |
Net weight | 10.5kg |
Applicable area | 60m2 |
Power rating | 55W |
Air flow volume | 500m3/h |
Voltage supply | 220V, 50Hz |
Noise level | 42db |
Ions generated | 8,000,000 ions/cm3 |
Bag in Bag Out Filter Systemprovide a wide performance for preventing the workers from bio-hazard organisms and viruses while they are doing the regular HEPA or ULPA filter replacement work. It is the most effective equipment available for any zone, needing a special critical filtration cleanliness level and negative pressure environment.
Bag in Bag Out Filtration Systemincludes pre-filter (and maintenance access door), HEPA or ULPA filter (and maintenance access door), inlet & outlet connecting duct flange unit, frame and mounting bracket. The equipment is full welded with argon welding except maintenance access door. It can be made not only at workshop but on site also.
Magnehelic gauge becomes standard for pre-filter, and ULPA or HEPA filter.
Outside Dimension | W | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
H | 700 | 855 | 1010 | 1315 | 855 | 1315 | 1315 | |
D | 780 | 780 | 780 | 780 | 1600 | 1600 | 1600 | |
Body Construction | Industrial grade Stainless Steel | |||||||
HEPA | Features | Large air volume,Efficiency 99.99%,0.3μm (Galvanized frame) | ||||||
Initial | 25.4 mmAq | |||||||
Pressure | ||||||||
Power Supply | AC 1Ø □ 110V □ 220V,50/60Hz |
Dehumidifier to reduce the level of humidity in the air, usually for health reasons.Pharmaceutical Air Dehumidifierare also used in industrial climatic chambers, to control relative humidity within certain rooms to stay at levels conducive to processing of products.Air Dehumidifierare designed to suit unique moisture/humidity control needs during processing, packaging, drying and storage. It employs unique Zexter-00908 technologically advanced dehumidification coil which has the ability to extract maximum amounts of moisture under difficult conditions.It prevents the growth of unsightly fungi and improves the quality of the air. It's also known asClean Room Air Dehumidifier.
Certificate | CE |
Voltage / Cycle | 3N 380V/440 V50Hz |
Power input (W) | 3000 |
Drainage Methods | Direct drainage |
Dehumidifying Capacity | 160 L/day |
N/W (Kg) | 143 |
Cryogen | R22 |
Applied area | (2.6-3m height) 160-200 sq.m. |
Control type | LED, Computer, Digital display |
Sensor | Humidity sensor |
Compressor | Reciprocating |
Safety | 3 minutes delay protection |
Color | White / Grey |
Body dimension (mm) | 516 mm x 602mm x 1962 mm |
Out packing (mm) | 725mm x 655mm x 2065 mm |
Clean Boothis a portable Clean room system equipped with HEPA Fan Filter Unit, it generates stable and ideal laminar air flow inside. This unit can provides high cleanliness (ranging from Class 100 to Class 10 000) partially in the clean room with excellent flexibility for the various demands of job process conditions. The customMobile Clean Room Booth& air tent panel offers unmatched prices, usage and specifications for various research laboratories. TheClean Room Tentoffers application in pharma industries (to maintain GMP), Operation theatres, Horticulture, Tissue culture and bio fertilizer labs, Space research, Food processing industries etc.
HEPA Filter efficiency | 99.99% at 0.3mm and Above |
Pre Filter | Non-woven |
Construction | Casing - Steel sheet metal |
Enclosure | Vinyl Curtain |
Finishing | Powder Baked Epoxy Finishing |
Power Supply | AC, 1PH, 230V, 50/60 Hz |
Noise | 60dB |
An Ozonatoris a device that creates ozone gas. This equipment is used to kill bacteria & viruses. Ozone gas is a very strong oxidizer and disinfectant, which is commonly found in nature. Ozone is produced by ultra violet light, lightning (corona discharge) and almost any electrical discharge. This equipment is equipped with transformer for high voltage output and cool operation.
Weiber ozonator are for making the air free from pollution. Its main function is to clean indoor air and prevent air pollution in an easier way.
Air ozonatorreduce indoor bacteria, allergy, asthma, hay fever, home respiratory problems, mold source, odors, pollutants, pollution. It controls air contaminates like bacteria, bad odor, formaldehyde, germs, pathogens, and virus. Air ozonator improve the air quality by reducing many indoor pollutants that filters alone are unable to trap. WeiberAir Sterilizeris simple to maintain and their compact design with convenient carrying handle make them comfortably portable.
Generator Capacity | 500 mg/hr | 750 mg/hr |
Max. Room Volume | 3000 ft£ | 5500 ft. |
Operation | Continuous | Continuous |
Variable Range | 50 to 100% | 50 to 100% |
OZONE CONSTRUCTION | ||
Blower Capacity | 105 cfm | 2 x 105 cfm |
Feed Gas | Normal Room Air | Normal Room Air |
Cooling of Cell | Air Cooling | Air Cooling |
UTILITIES | ||
Electric Power | 45 Watt | 65 Watt |
Voltage | 220 V +/-10% | 220 V +/-10% |
Frequency | 50 Hz +/- 2% | 50 Hz +/- 2% |
The0C walk-in cold roomsfrom Weiber are designed to provide and sustain working temperatures as low as 0C for the preservation and storage of a wide variety of storage items including poultry, meat, fruits and vegetables, flowers, bakery items, medicines, chemicals etc. These cooling equipments provide a positive working temperature range for the bulk storage of fruits and vegetables, vaccines etc. and a negative working temperature range for the storage of meat products and other temperature sensitive materials. Weiber0C walk-in cold room Manufacturersprovide these chambers in various sizes and configurations and can be custom-designed to suit specific requirements. Owing to their large storage capacities and flexible design, these equipments find widespread usage in butcheries, bakeries, restaurants, research laboratories, pharmacies, hospitals, mortuaries, flower shops etc.
Weiber0 Degree Cold Roomare designed for excellent insulation and refrigeration capabilities. They are made up of prefabricated PUF insulated panels of varying thickness and use pre-coated GI sheets or stainless steel sheets for external and internal surfaces. The stainless steel construction adds rigidity and structure to the equipment and ensures non-corrosive, smooth and uniform external and internal surfaces. The excellent insulation panel provides maximum thermal efficiency and reduces the power consumption. All the walls, ceiling and door are well insulated for minimum energy consumption. TheWeiber Cold Room 0 Degree Care available as easy to install, light weight equipments that can be readily assembled using cam-locking arrangement.
Construction | Stainless steel |
Working Temperature | 0 deg. C |
Temperature Tolerance | +/- 1 deg. C |
Temperature Control | Digital Temperature Controller |
Temperature Sensor | PT 100 |
Certificate | CE |
These Animal Mortuary Chamber from WEIBER are best suited to store animal body in a hygienic and effective manner. This series of product for hospital, funeral parlor, and postmortem examination department to store the corpse. Each cabinet model is equipped with temperature control system with a high contrast digital display for accurate temperature control and recording. Our Small Animal Mortuary Chamber are made of corrosion free metal components with advance poly urethane insulation ensuring maximum thermal efficiency and durability.
Working sizes (2/4/6/8/10 body)
|
Working sizes (2/4/6/8/10 body) |
D= 900mm
H=600mm
|
Temperature range | + 2 degrees to + 8 degrees C and -15 to +10 deg C. |
Temp. Controller | Digital temperature controller cum indicator for easy readability. |
Insulation | Polyurethane insulation |
Door | Right hinged door. |
Floor | Recessed floor. |
Door Handle | Easy grip door Handle. |
Locks | Standard key lock. |
Castors | Swivel locking castors. |
Frame | Superior engineered. |
Compressor | Heavy duty Air-cooled compressor. |
Condenser | Automatic condensate evaporating system. |
Evaporator | Internal evaporator system. |
Refrigerant | Non-CFC. |
Air- Circulation | Forced air circulation. |
Defrost | No Defrost. |
Power Supply | 220 volts, 50Hz. |
Mortuary Chamberare conceptualized and designed for long storage of cadaverous under hygienic and cool conditions. We design standard as well as custom designedMortuary Freezerwith 2, 4, 6, 8, 10 bodies as required. These units deliver reliable performance and hygienic solution for dead body storage. Each cabinet model is equipped with temperature control system with a high contrast digital display for accurate temperature control and recording. OurMortuary Coolerare made of corrosion free metal components with advance poly urethane insulation ensuring maximum thermal efficiency and durability. The chamber also known asMorgue Freezer.
Type | Dimensions (WXDXH)mm | Door (WXH)mm |
2 body | 960*2460*1830 | 2 doors, 680*550 |
4 body | 1850*2460*2090 | 4 doors, 680*550 |
6 body | 2710*2460*2090 | 6 doors, 680*550 |
8 body | 3580*2460*2090 | 8 doors, 680*550 |
10 body | 4520*2460*2090 | 10 doors, 680*550 |
Temperature range | + 2 degrees to + 8 degrees C and -15 to +10 deg C. |
Temp. Controller | Digital temperature controller cum indicator for easy readability. |
Insulation | Polyurethane insulation |
Door | Right hinged door. |
Floor | Recessed floor. |
Door Handle | Easy grip door Handle. |
Locks | Standard key lock. |
Castors | Swivel locking castors. |
Frame | Superior engineered. |
Compressor | Heavy duty Air-cooled compressor. |
Condenser | Automatic condensate evaporating system. |
Evaporator | Internal evaporator system. |
Refrigerant | Non-CFC. |
Air- Circulation | Forced air circulation. |
Defrost | No Defrost. |
Power Supply | 220 volts, 50Hz. |
Mortuary chambers in India since last two decades. Our mortuary chambers are conceptualized and designed for long storage of cadaverous under hygienic and cool conditions. Our mortuary chambers are made of corrosion free metal components with advance poly uretherane insulation ensuring maximum thermal efficiency and durability.
We specialize in both standard and customized models of mortuary chamber specially designed to meet various special requirements of our customers across India and abroad.
Over a short period of time Weiber brand have been established as a leading exporters of mortuary chambers in India, catering to South Asian, African And European Markets.
Beside the regular exports we are also catering to our domestic market and are suppliers of our mortuary chambers to various army installations, central and state police units, Para military establishments, government, semi government and private hospitals and morgues etc.
Temperature Control | - | - |
Temperature Sensitivity | ± °C | 0.5 or better |
Spatial Deviation In Temperature | ± °C | 0.5 or better |
Readability | °C | 0.51 |
Temperature range | °C | 2°C to 60°C (Standard) |
Temperature Sensor | - | PT-100 |
Temperature Controller | - | Solid State digital Controller/ PID optional |
Display | - | LED/LCD |
Adjustable alarm limits | - | Optional With PID controller only |
Water Quality | - | Distilled / Ionized |
Condenser | - | - |
Air Circulation | - | Efficient condenser with automatic evaporating system (condensate) Forced |
Refigerant | Lux | R134A Non CFC |
Light intensity (Both Sides) | Lux | As Desired (optional feature) |
Accessories | - | - |
Timer (999 mins) | - | Optional |
Program (Real Time) | - | Optional |
Data Acquisition Program | - | Optional |
Serial Port (Printer) | RS232C | Optional |
Inspection window in door | - | Optional |
Water Reservoir | litres | 18 ltr |
Capacity | - | - |
Standard | - | 1/2/3/4/6//8/10 |
Internal Dimensions | mm | Model Specific |
Maximum Permitted load per shelf | Kg | 155Kg |
Maximum Permitted total load | Kg | Model Specific |
Accessories | - | - |
Printer Report Program | - | Optional |
2 x 24 characters LCD Display | mm | Optional |
Access Port 30 mm | - | Optional |
Castors, lockable | - | Yes |
Power Consumption | - | - |
Nominal Power | W | 950 - 1450 |
Nominal Voltage | V | 220-230 Volts, 50 Hz Single Phase |
Frequency | Hz | 50 / 60 |
The 1-3 Ton ice machine maintains ambient temperature of 5 to -50. The Ice Flaking Machine produces 1-3 ton of ice per day. The CE approved ice Flake machine are made in strict accordance with the ISO standards and are microprocessor based with advanced technologies and quality instruments.
Weiber High Capacity Ice Flake Machine is a stand-alone appliance for making ice on a large scale as per the customers requirement. These Commercial Ice Flake Machines are made of corrosion free metal components with advance polyurethane insulation ensuring maximum thermal efficiency and durability. This machine offers important application in Fishing industry, food processing, concrete mixing plants, chemical plants, mine cooling, skiing ground, medicine, and so on.
Design (L) | DIMENSIONS mm | capacity |
1 ton | 1300*1000*940 | 3000kg/24h |
2 ton | 1300*1300*1140 | 3000kg/24h |
3 ton | 1600*1280*1380 | 3000kg/24h |
Refrigeration capacity | 16700Kcal/h |
Refrigerant | R404A |
Total input | 15.25kW |
Power of compressor | 14kW |
Power of reducer | 0.37 kW |
Power of water pump | 0.12kW |
Power of brine pump | 0.016kW |
Power supply | 3P/380V/50Hz or else |
Nominal current | 26A |
Cooling mode | Water cooling or air cooling |
Evaporator structure | Spiral groove |
Evaporating temp. | -20°C |
Condensing temp. | 43°C |
Ice flake temp. | -5°C |
Thickness of ice flake | 1.5-2.2mm |
Water feeding pressure | 0.1Mpa-0.5Mpa |
Dia.of water inlet pipe | 5/8" |
Design ambient temp. | 30°C |
Design water inlet temp. | 25°C |
Noise (within 2m) | 72dBA |
weight | 550 kg |
Built for industrial use with high quality, heavy-duty parts, WEIBERIndustrial Ice Flake Machineare constructed to be dependable and durable. it produces 40 tons of ice flakes per day. The ice works at its lowest temperature of -8 but still keeps normal running even in the most unfavorable conditions of 35 with sophisticated refrigerating technologies. Regardless of the vessel's pitching and rolling, the unique surface of drum that is made by stainless steel has been combined with pressurized water injection, which can steadily keep making ice on-board by ensuring the water is forced into the cylinder wall not drop into the ice storage. The products also knowns asIndustrial Ice Flaking MachineandIndustrial Ice Flaker Machine.
Daily output | 40ton/day
|
Weight | 4500kg |
Dimension | 5700*2200*1800 mm |
Noise | 55dB |
Wattage | 110kW |
Compressor capacity | 108kW |
Power of cooling tower | 7.5 kW |
Power of reducer | 11 kW |
Power of recycling water pump | 3.7 kW |
Power of brine pump | 0.2 kW |
Ice flake thickness | 1.5-2.5mm |
Block Ice Machineto meet customers freezing requirement. The biggest feature of AutomaticIce Block Machineis; no need salty water for large-scale ice blocks and other cooling medium during the freezing period. When the ice formed, they drop into the special ice contact convey device. The whole course of ice forming is sanitary and clean. Machine adopts the heat gas harvesting ice technology, direct heat expansion, heating exchanging technology, making the product performance better.
1 ton block ice machine
Standard Specifications
Subject | Unit | Technical parameter | |
Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
Refrigerant | 380V/3P/50Hz | ||
Capacity | Kg/day | 1000 | |
Temperature | Ambient temperature | ℃ | 35 |
Waterinlet temperature | ℃ | 20 | |
Ice temperature | ℃ | -5℃~-10℃ | |
Operating power | Total running power | kW | 4.74 |
Installment power | kW | 6 | |
Operating power of cutter | kW | 0.37 | |
Operating power of cold water pump | kW | 0.55 | |
; | Refrigeration capacity | kW | 7.75 |
Operating power | kW | 3.12 | |
Compressor COP/EER | kW | 2.49 | |
Horse power | Hp | 4 | |
Condenser | Fan power | kW | 0.7 |
Cooling way | Air cooling | ||
Dimension | Size of ice maker | (L×W×H)(mm) | 1400×800×1800 |
Size of condenser | (L×W×H)(mm) | 1200×400×750 | |
Size of water feeding pipe | 1/2" | ||
Weight of unit | Operating weight of tube ice maker | Kg | 780 |
Operating weight of condenser | Kg | 48 | |
Weight of ice block | Kg | 5,8 can be customized | |
Water supply pressure requirement | Bar | 1 |
1 To Block Ice Machine
Standard Specifications
Subject | Unit | Technical parameter | |
Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
Refrigerant | 380V/3P/50Hz | ||
Capacity | Kg/day | 3000 | |
Temperature | Ambient temperatur | ℃ | 35 |
Waterinlet temperature | ℃ | 20 | |
Ice temperature | ℃ | -5℃~-10℃ | |
Operating power | Total running power | kW | 11.01 |
Installment power | kW | 13.5 | |
Operating power of cutter | kW | 0.37 | |
Operating power of cold water pump | kW | 0.55 | |
; | Refrigeration capacity | kW | 24.5 |
Operating power | kW | 8.89 | |
Compressor COP/EER | kW | 2.49 | |
Horse power | Hp | 15 | |
Condenser | Fan power | kW | 1.2 |
Cooling way | Air cooling | ||
Dimension | Size of ice maker | (L×W×H)(mm) | 1700×920×2000 |
Size of condenser | (L×W×H)(mm) | 1400×1200×1350 | |
Size of water feeding pipe | 1/2" | ||
Weight of unit | Operating weight of tube ice maker | Kg | 1250 |
Operating weight of condenser | Kg | 125 | |
Weight of ice block | Kg | 5,10,15,20,25 can be customized according to request. | |
Water supply pressure requirement | Bar | 1 |
10 Ton Block Ice Machine
Standard Specifications
Subject | Unit | Technical parameter | |
Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz or else | |
Refrigerant | R22 or R404A | ||
Capacity | Kg/day | 10000 | |
Temperature | Ambient temperatur | ℃ | 35 |
Waterinlet temperature | ℃ | 20 | |
Ice temperature | ℃ | -5℃~-10℃ | |
Operating power | Total running power | kW | 34.95 |
Installment power | kW | 45 | |
Operating power of cutter | kW | 0.75 | |
Operating power of cold water pump | kW | 1.1 | |
; | Fan motor of cooling tower | kW | 1.1 |
Operating power of cold water pump | kW | 2.2 | |
Refrigeration capacity | kW | 74.3 | |
Operating power | Hp | 29.8 | |
Compressor COP/EER | Kw/kw | 2.5 | |
Horse power | Hp | 50 | |
Cooling way | Water cooling | ||
Dimension | Size of ice maker | (L×W×H)(mm) | Unit:1800×1500×1600 |
Evaporator:1180×1180×3500 | |||
Size of cooling tower | (O.D.×H)(mm) | Φ2000×2410 | |
Size of liquid pipe of cooling tower | 3/4" | ||
Size of cooling water pipe | 2-1/2" | ||
Size of waterinlet pipe of ice maker | 1" | ||
Size of ice outlet | mm | 300×250 | |
Weight of unit | Operating weight of tube ice maker | Kg | Unit:1560 |
Evaporator:2296 | |||
Operating weight of cooling tower | Kg | 670 | |
Weight of ice | Kg | 5,10,15,20,25 can be customized according to request. | |
Water supply pressure requirement | Bar | 1 |
Subject | Unit | Technical parameter | |
Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
Refrigerant | R22 or R404A | ||
Capacity | Kg/day | 20000 | |
Temperature | Ambient temperature | ℃ | 35 |
Waterinlet temperature | ℃ | 20 | |
Ice temperature | ℃ | -5℃~-10℃ | |
Operating power | Total running power | kW | 68.5 |
Installment power | kW | 85 | |
Operating power of cutter | kW | 1.5 | |
Operating power of cold water pump | kW | 2.2 | |
; | Fan motor of cooling tower | kW | 1.5 |
Operating power of cold water pump | kW | 3.7 | |
Compressor | Manufacturer | Bitzer | |
Refrigeration capacity | Kw | 148.6 | |
Operating power | Kw | 59.6 | |
Compressor COP/EER | kW | 2.5 | |
Horse power | Hp | 50×2 | |
Cooling way | Water cooling | ||
Dimension | Size of ice maker | (L×W×H)(mm) | Unit:2200×2000×1800 |
Evaporator:1350×1350×4600 | |||
Size of cooling tower | (O.D.×H)(mm) | Unit:2200×2000×1800 | |
Size of liquid pipe of cooling tower | 3/4" | ||
Size of cooling water pipe | 2-1/2" | ||
Size of waterinlet pipe of ice maker | 1" | ||
Size of ice outlet | mm | 400×300 | |
Weight of unit | Operating weight of tube ice maker | Kg | Unit:2260 |
Evaporator:3650 | |||
Operating weight of cooling tower | Kg | 1120 | |
Weight of ice block | Kg | 10,15,20,25 can be customized as per request. | |
Water supply pressure requirement | Bar | 1.5 |
For industrial applications, WEIBERIndustrial Freeze Dryerare best suited with capacities ranging from 100litres-2500 liters. Freeze drying is the process of removing the moisture from a biological product while maintaining the Integrity of the products biological & chemical structure and activities. WEIBERHigh Capacity Freeze Drierare conceptualized and designed to provide moisture removing solutions to all the microbiology, biochemistry, biotechnology and genetic engineering laboratories which require complete moisture removal and storage facilities of various biological agents/material. Beside the normal drying applications our freeze driers are fit to be used for various applications tests involving micro-organisms, plants, tissues etc. The Lyophilizer also knowns asIndustrial Lyophilizer.
Working Sizes
Capacity | Dimensions (WXDXH) |
250 L | 2,600*920*22 mm |
500 L | 3,300*575*22mm |
1000 L | 4,300*575*22 mm |
1500 L | 7,190*575*22 |
2000 L | 4,845*575*22 |
Customizable sizes are also available.
Temperature | -35°C to -80°C |
Compressor | 1/3 HP (hermetically sealed) |
Vacuum Pump | 150 liter/minute ( can customized as per customer’s requirement) |
Vacuum gauge | Pirani gauges |
Controller | Microprocessor based controller |
Temperature deviation | 0.5 °C |
Temperature sensor | PT-100 |
Display | LCD |
Refrigerants | R 134 or R 404 |
Freeze Drieris the process of removing the moisture from a biological product while maintaining the Integrity of the products biological & chemical structure and activities. WEIBERLaboratory Freeze Drierare conceptualized and designed to provide moisture removing solutions to all the microbiology, biochemistry, biotechnology and genetic engineering laboratories which require complete moisture removal and storage facilities of various biological agents/material. Beside the normal drying applications our freeze driers are fit to be used for various applications tests involving micro-organisms, plants, tissues etc. Bacterial growth and enzyme action do not take place in freeze-dried products. Proteins do not coagulate. Oxidation of many materials such as hemoglobins and vaccines is completely prevented when drying and sealing is done under high vacuum.
Working Sizes
Capacity | Dimensions (WXHXD)INCHES |
1 L | 12*17*18 |
2 L | 12*17*27 |
4 L | 18*48*24 |
5 L | 32*36*28 |
12 L | 32*36*28 |
Customizable sizes are also available.
Parameter | Table top |
Capacity | 1 ~ 12 Liters |
Temperature | -35°C to -80°C |
Condensation capacity | 3 L in 24 hours ( can customized as per customer’s requirement) |
Compressor | 1/3 HP (hermetically sealed) |
Vacuum Pump | 150 liter/minute ( can customized as per customer’s requirement) |
Vacuum gauge | Pirani gauges |
Controller | Microprocessor based controller |
Temperature deviation | 0.5 °C |
Temperature sensor | PT-100 |
Display | LCD |
Refrigerants | R 134 or R 404 |
Model :TSQ-23098-TKS 50 Kg/Hr Automatic Double-doors; built-in Steam Generator
Application Range:
The sterilizer is used for the sterilizing the clothes, apparatus, vessels, culture medium, small amount of liquid in the unsealed bottles.
Quality System:
The sterilizer is strictly designed and manufactured according to ISO 9001-2000 and ISO 13485-2003 quality system. It is implemented by International relative standard. The sterilizer conforms to the CE standard. The performance is stable and the quality is reliable.
Safety System:
The sterilizer has the multiple safety structures, including overpressure protection, low water-level protection, door interlocking system, electric appliance overloading and short circuit protection, which ensure the safety operation.
Heat Emissions Protection:
The sterilizers chamber is covered with mineral wool to protect the heat emission.
Vertical Autoclave are widely used for day to day sterilization procedures and in various laboratory applications, where dryness of the sterilized medium is of paramount importance, given the fact that semi dry sterilized media is prone to various micro-bacterial and viral infections. We specialize in both standard and customized models. It is also known asSteam SterilizerandLaboratory Sterilizer.
Bench topHigh Speed Micro Centrifugedesigned for routine laboratory use where refrigeration is needed. It represents excellent value for money in terms of performance, ease of use, safety and reliability.
It features:
Weiber bench top centrifuges incorporate an automatic rotor identification system. This important feature ensures that the centrifuge recognises the rotor in use and prevents it from being used beyond its safe maximum speed.
Weiberutilises an induction motor for maintenance free long life operation. This motor has no carbon brushes so not only is there no need for routine maintenance but there is no build-up of carbon dust inside the centrifuge. This makes it suitable for use in clean environments. Microprocessor control combined with the frequency driven motor ensures accurate operation for run to run reproducibility.
The use of the induction motor provides another benefit in that higher rotational speeds can be achieved. This allows to have a maximum speed in excess of 15, 000 rpm with the 24 place micro tube rotor. It is also known asBenchtop Microcentrifuge.
Max speed | 16000r/min |
No 1 angle rotor | 12x1.5ml (20000r/min RCF:27800xg) |
No 2 angle rotor | 10x5ml (16000r/min RCF:17280xg) |
No 3 angle rotor | 12x10ml |
(15000r/min RCF:23120xg) | |
No 4 angle rotor | 6x50ml (13000r/min RCF:17940xg) |
No 5 swing rotor | 4x10ml (6000r/min RCF:3200xg) |
No 6 swing micro plate rotor | 2x2x48 well (3000r/min RCF:1400xg) |
No 7 angle rotor | 24x1.5/2.2ml (16000r/min RCF:23200xg) |
No 8 angle rotor | 4x50ml (14000r/min RCF:19030xg) |
No 9 angle rotor | 4x100ml (10000r/min RCF:9690xg) |
Max RCF | 27800xg |
Temperature setting range | -20C~40C |
Refrigeration system |
R404a Non-CFC Refrigeration System |
Time setting range | 0~99min |
Power supply | AC220V 50Hz 18A |
Dimension | 400x560x360mm(LxWxH) |
Weight | 95kg |
Features :
SPECIFICATION | CTA 200 | CTA 300 | CTA 600 |
Capacity | 200g | 300g | 600g |
Readability | 0.01g | 0.01g | 0.01g |
Linearity | +0.01 | +0.01 | +0.02 |
Pan Size | 110mm | ||
Display | Liquid Crystal Display 13 mm Height | ||
Weight | 1.8Kg | ||
Dimension | 190 (W)x200 (D)x80 (H)mm | ||
Power | 9V/500mA AC/DC Adaptorm | ||
Environment | 0° C -40° C (32° F-104° F) RH < 85% |
Our Multi-functional Infrared Moisture Analyzer (Acm-78093 L) comprises of a high precision analytical balance and a structured stepless heating device. This equipment is based on the principle of electromagnetic balancing principle combined with the infra red heating technology used at tandem to ascertain the moisture content in the sample.
This unique infra red moisture balance is powered by the integrated advanced micro processor, thus making it highly accurate and reliable. Beside the accuracy durability sturdiness and diligence are other key attributes of our products. This equipment is very user friendly allowing the user to either manually or automatically set the time temperature, mode and intensity of heating and other parameters in the unit.
The unit is provided with RS-232 C interface with computer connectivity . The user can have four output modes of selection with eight parameter output.
These features makes it an ideal choice for tobacco, pharma , food processing and chemical laboratories.
Model | (Acm-78093 L) | (Acm-78093 L) |
Cap | 100g | 50g |
Operating Temp Range | 10°C to 40°C | 10°C to 40°C |
Temperature Range | 50°C to 200°C | 50°C to 200°C |
Readability | 1 mg | 0.1 mg |
Testing Mode | Auto / Manual/ Timing | Auto / Manual/ Timing |
Display | VFD | VFD |
Content of Display | % moisture, time, temperature, weight | % moisture, time, temperature, weight |
Tare Range | Full | Full |
Dia (Pan) | 90mm | 90mm |
Dimensions | 350mm x 200mm x 260 mm | 350mm x 200mm x 260 mm |
Power Supply | AC Adaptor 220V OR 50-60 HZ | AC Adaptor 220V OR 50-60 HZ |
Net Weight | 7.5 kg | 7.5 kg |
Data Output | RS 232 C Interface | RS 232 C Interface |
Heating Source | Halogen Lamp | Halogen Lamp |
Features:
Capacity x Readability (carats) | 605 x 0.001 ct |
Capacity(g) x Readability (mg) | 121 g x 0.2 mg |
Reproducibility (std deviation) | - |
carats (ct) | ± 0.001 ct |
milligrams (mg) | ± 0.2 mg |
Linearity | - |
carats (ct) | ± 0.002 ct |
milligrams (mg) | ± 0.4 mg |
Response Time (average) | 3 seconds |
Tara Range | FULL to Capacity |
Selectable Weight Units | g, ct, lb, oz, ozt, tlh, tls, tlt, Gn, dwt, mg, parts/lb, tlc, mom, K, tol, bat, MS |
Selectable Application Programs | Mass unit conversion by toggling, tare memory, net total, weighing in percent, counting, averaging |
Display | LCD |
Allowable Ambient Operating Temperature | 5° C to 40 ° C (41° F to 104° F) 85% RH or less |
Sensitivity Drift (10° - 30°C/50°F-86°F) | ± 2 ppm / °C |
External Calibration | 100g |
Pan Size | ø90 mm / 3.5 in (standard round pan) |
Draft Shield Chamber Height (from pan to top of glass door) | 133 mm / 5.23 in |
Dimensions (entire balance) W x D x H | 200 x 270 x 233 mm 7.9 x 10.6 x 9.2 in |
Built-in RS-232 Interface | YES - RS-232 interface is standard but the RS-232 cable is optional |
Weighing Below | Not Available. Common applications for weighing below the balance include density determination. |
AC Power Source | AC Adapter 120 VAC |
Power Consumption | Approx. 16VA (supplied by AC adapter) |
Standard Equipment | 120V AC Adapter, Stainless steel weighing pan, 100g external cal mass |
Features:
Features include mass unit conversion, pcs counting, animal weighing, modes for stable and unstable weighing environments, Selectable auto power off time, Selectable calibration on / off function, digital printing options, back light on/off selection and many more which will ease your weighing application.
MODEL | CAPACITY | DIVISION | PLATFORM SIZE |
Acm 78095-L | 30Kg | 2Kg | 400x400mm |
Acm 78095-L | 60Kg | 5Kg | 400x400mm |
Acm 78095-L | 60Kg | 5Kg | 400x500mm |
Acm 78095-L | 120Kg | 10Kg | 400x500mm |
Acm 78095-L | 200Kg | 20Kg | 400x500mm |
Acm 78095-L | 300Kg | 50Kg | 400x500mm |
Acm 78095-L | 120Kg | 10Kg | 400x500mm |
Acm 78095-L | 150Kg | 10Kg | 550x600mm |
Acm 78095-L | 200Kg | 20Kg | 550x600mm |
Acm 78095-L | 300Kg | 10Kg | 550x600mm |
Acm 78095-L | 300Kg | 50Kg | 550x600mm |
Knowing the latest weather conditions is crucial for every boater's plans. The newAcm 52303 Weather Stationfrom WEIBER accurately displays critical weather readings and forecasts for various users.
Knowing the latest weather conditions is crucial for every meteorological application. The new wireless weather station accurately displays critical weather readings and forecasts for boaters, anglers and other outdoor enthusiasts. Utilizing frequency hopping spread spectrum radio technology, it transmits and receives data up to 1, 000'. It tracks a large number of weather variables including temperature, barometric pressure, humidity, rainfall, wind speed, wind direction and dew point.
Users can set more than 70 alarms simultaneously for multiple functions. They can graph readings from a 24-hour period, days or months and view more than 80 graphs showing additional temperature, rain, wind and barometric pressure analysis without using a computer. A ticker-tape display indicates forecast details and other data using 100 different messages.
All the weather station's sensors are housed in an integrated sensor suite that easily installs on piers, marina docks and larger boats. The sensor suite is solar powered, and electronic components are protected in a weather-resistant housing.
It has components that can withstand hurricane-force winds and measure wind speeds up to 150 mph with 5% accuracy. Its temperature sensors are accurate within 1F. Vantage Pro weather stations have been recognized by the National Hurricane Center for their exact readings during recent hurricanes and tropical storms.
Console Operating Temperature | +14° to +140°F (-10° to +60°C) |
Display Temperature | +32° to +140°F (0° to +60°C) |
Light Source | LED |
Display | 3 1/2 digits LCD |
Non-operating Temperature | -5° to +158°F (-20° to +70°C) |
Current Draw | 0.90mA average, 20 mA peak, (plus 120 mA for disply lamps, plus 0.125 mA for each optional wireless transmitter received by the console) at 4 to 6 VDC |
Ac Power Adapter | 5VDC, 900mA, regulated |
Batteries | 3 C-cells |
Battery Life | up to 9 months |
Connectors | Modular RJ-11 |
Housing Material | UV-resistant ABS plastic |
Console Display Type | LCD Transflective |
Dimension | - |
Console with antenna | 10.375"x6.125"x1.5" (264mmx156mmx38mm) |
Display | 5.94"x3.375"(151mmx86mm) |
Weight (with batteries) | 1.88IBS.(.85kg) |
Integrated Sensor Suite (ISS) | - |
Operating Temperature | -40° to +150°F (-40° to +65°C) |
Non-operating Temperature | -50° to +158°F (-45° to +70°C) |
Current Draw (ISS SIM only) | 0.14 mA (average), 30mA (peak) at 4 to 6 VDC |
Solar Power Panel (ISS SIM / Fan) | 0.5 watts / .75watts |
Battery (ISS SIM / Fan (Fan-Aspirated) | CR-123 3-Volt Lithium cell / 2- 1.2 Volt NiCad C-cells |
Battery Life (3-Volt Lithium cell) | 8 months without sunlight - greater than 2 years depending on solar charging |
Battery Life (NiCad C-cells) | 1 year |
Fan Aspiration Rate (Fan-Aspirated) | 190 feet/min. (0.9m/s)(full sun), 80 feet/min, (0.4m/s)(battery only) |
Connectors, Sensor | Modular RJ-11 |
Cable Type | 4-conductor, 26 AWG |
Cable Length, anemometer | 40' (12m)(included) 540'(165m) (maximum recommended) |
Wind Speed Sensor | Wind cups with magnetic switch |
Wind Direction Sensor | Wind vane with potentiometer |
Rain Collector Type | Tip bucket, 0.01" per tip (0.2 mm with metric rain adapter), 33.2 in2 (214 cm2) collection area |
Temperature Sensor Type | Thermistor |
Relative Humidity Sensor Type | Film capacitor element |
Housing Material | UV-resistant ABS plastic |
Wind Speed | - |
Resolution and Units | 1 mph, 1km/h, 0.1 m/s, or 1 knot (user-selectable) |
Range (large wind cups) | 2 to 150 mph, 2 to 130 knots, 1 to 67 m/s, 3 to 241 km/h |
Range (small wind cups) | 3 to 175 mph, 3 to 150 knots, 1.5 to 79 m/s, 5 to 282 km/h |
Update Interval | Instant Reading: 2.5 to 3 seconds, 10-minute Average:1 minute |
Accuracy (large wind cups) | ±2 mph (2 kts, 3 km/h, 1m/s) or ±5%, whichever is greater |
Accuracy (small wind cups) | ±3 mph (3 kts, 5 km/h, 1.5m/s) or ±5%, whichever is greater |
Maximum Cable Length | 540' (165 m) |
Current Data | Instant Reading; 10-minute and Hourly Average; Hourly High; Daily, Monthly and Yearly High with Direction of High |
Historical Data | 10-min, and Hourly Averages; Hourly Highs; Daily, Monthly and Yearly Highs with Direction of Highs |
Alarms | High Thresholds from instant Reading and 10-minute Average |
Wind Direction | - |
Display Resolution | 16 points (22.5°) on compas rose, 1° in numeric display |
Accuracy | ±7° |
Update Interval | 2.5 to 3 seconds |
Current Data | Instant Reading (user adjustable); 10-min, Dominant; Hourly, Daily, Monthly Dominant |
Historical Data | Historical Data |
Wind Chill (Calculated) | - |
Resolution and Units | 1oF or 1°C (user-selectable) |
Range | -50° to +158°F (-45° to +70°C) |
Accuracy | ±2oF (±1oC) (typical) |
Update Interval | 10 to 12 seconds |
Souce | United States National Weather Service (NWS)/NOAA |
Equation Used | Osczevski (1995) (adopted by US NWS in 2001) |
Variables Used | Instant Outside Temperature and 10-min. Avg. Wind Speed |
Current Data | Instant Calculation; Hourly, Daily and Monthly Low |
Historical Data | Hourly, Daily and Monthly Lows |
Alarm | Low Threshold from Instant Calculation |
Outsite temperature (sensor located in ISS) | - |
Resolution and Units | Current Date 0 .1°F or 1°F or 0.1°C or 1°C (user-selectable) nominal(see Fig. 1) Historical Data and Alarms: 1°F or 1°C (user-selectable) |
Range | -40° to +150°F (-40° to +65°C) |
Sensor Accuracy | ±1°F (±0.5°C) up to110°F(43°C), ±2°F(±1°C)over 110°F (43°C) See Fig.2) |
Radiation Induced Error (Passive Shield) | +4°F(2°C) at solar noon (insolaton=1040 w/m2,avg.wind speed ≤2mph(1 m/s))(reference:RM young Model 43408 fan-Aspirated Radiation Shield) |
Radiation induced Error(fan-Aspirated) | +0.6°F (0.3°C) at solar noon (insolaton=1040 w/m2,avg.wind speed ≤2mph(1 m/s))(reference:RM young Model 43408 fan-Aspirated Radiation Shield) |
Update interval | 10 to 12 seconds |
Current Data | Instant Reading (user adjustable): Daily, monthly.yearly highs and lows |
Historical Data | hourly Reading Daily monthly.yearly highs and lows |
Alarms | High and low thresholds from instant Reading |
Rainfall | - |
Resolution and Unit | 0.01''or 0.25 mm(user-selectable)(1 mm at totals ≥2000 mm) |
Daily/Storm Rainfall Range | 0to 99.99"(0to 9999mm) |
Monthly/yearly/Total Rainfall Range | 0 to 199.99"(0to 19999mm) |
Rain Rate | 0 to 199.99"(0to 19999mm) |
Accuracy | For rain rates up to 2"/hr (50mm/hr):±4% of total or +0.01"(0.25MM)(0.01"=one tip of the bucket), whichever is greater For rain rates from 2"/hr (50mm/hr)to 4"/hr(100mm/hr): ±5% of total or +0.01"(0.25mm)(0.01"=one tip of the bucket). whicheveris greater |
Update Interval | 10 to 12 seconds |
Storm Determination Method | 0.02"(0.5mm)begins a storm event,24hours without further accumlulation ends a storm event |
Current Data | Totals for past 15-min, past 24 hours,Daily, monthly, yeary (start data user-selectable)and storm(with begin data):Umbrella is displayed when 15 minute Total exceeds zero |
Historical Data | Totals for Past 15-min, Daily, Monthly, Yearly (start date user-selectable) and Storm (with begin and end dates) |
Alarms | High Threshold from Latest Flash Flood (15-min, Total,default is 0.50", 12.7 mm), 24-hour Total, Storm Total, |
Current Data | 0 to 99.99" (0 to 999.7 mm) |
Rain Rate | - |
Resolution and Units | 0.01" or 0.25 mm (user-selectable) at typical rates (see Fig. 3 and 4) |
Range | 0,0.04"/hr (1mm/hr) to 100"/hr (0 to 1999.9 mm/hr) |
Accuracy | ±5% or ±0.04"/hr (1 mm/hr) (up to 10"/hr, (250 mm/hr)), whichever is greater |
Update Interval | 10 to 12 seconds |
Calculation Method | Measures time between successive tips of rain collector.Elapsed time greater than 15 minutes or only one tip of thr rain collector constitutes a rain rate of zero. |
Current Data | Instant and 1-min, Reading; Hourly, Daily, Monthly and Yearly High |
Historical Data | 1-min Reading; Hourly, Daily, Monthly and Yearly Highs |
Alarm | High Threshold from Instant Reading |
Barometric Pressure (sensor located in console) | - |
Resolution and Units | 0.01" Hg, 0.1 mm Hg, 0.1 hPa/mb (user-selectable) |
Corrected Range | 26.00" to 32.00" Hg, 660.0 to 810.0 mm Hg, 880.0 to 1080.0hPa/mb |
Uncorrected Range | 18.00" to 33.50"Hg, 457.0 to 850.0 mm Hg,592.0 to 1130.0 hPa/mb |
Elevation Range | -999' to +12,500' (-305 m to 3810 m) |
Uncorrected Reading Accuracy | ±0.03" Hg (±0.8 mm Hg, ±1.0 hPa/mb) (at room temperature) |
Sea-Level Reduction Equation Used | United States Method employed prior to use of current "R Factor" method |
Equation Source | Smithsonian Meteorological Tables |
Equation Accuracy | ±0.01" Hg (±0.3 mm Hg, ±0.3 hPa/mb) |
Elevation Accuracy Required | ±10' (3m) to meet equation accuracy specification |
Overall Accuracy | ±0.04" Hg (+-1.0 mm Hg, ±1.4 hPa/mb) |
Trend (change in 3 hours) | Change S0.6" (2 hPa/mb, 1.5 mm Hg) = Rapidly Change S0.2" (.7hPa/mb, .5 mm Hg) = Slowly |
Trend Indication | 5 position arrow: Rising (rapidly or slowly), Steady, or Falling (rapidly or slowly) |
Update Interval | 15 minutes or when console BAR key is pressed twice |
Current Data | Instant, 15-min., and Hourly Reading; Daily, Monthly, High and Low |
Historical Data | 15-min. and Hourly Reading; Daily, Monthly Highs and Lows |
Alarms | High Threshold from Current Trend for Storm Clearing (Rising Tredn Low Threshold from Current Trend for Storm Warning (Falling Trend) |
Range for Rising and Falling Trend Alarms | 0.01 to 0.25" Hg (0.1 to 6.4 mm Hg, 0.1 to 8.5 hPa/mb) |
Evapotranspiration (claulated, requires solar radiation sensor) | - |
Resolution and Units | 0.01" or 0.25 mm (user-selectable) |
Range | Daily to 99.99" (999.9 mm); Monthly & Yearly to 199.99" (1999.9 mm) |
Accuracy | Greater of 0.01" (0.25 mm) or ±5%, Reference: side-by-side comparision against a CIMIS ET weather station |
Update Interval | 1hour |
Calculation and Source | Penman-Monteith Equation as implemented by CIMIS (California Irrigation Mangagement Information System) including Net Radiation calculation |
Current Data | Latest Hourly Total Calculation, Daily, Monthly, Yearly Total |
Historical Data | Hourly, Daily, Monthly, Yearly Totals |
Alarm | High Threshold from Latest Daily Total Calculation |
Solar Radiation (requires solar radiation sensor) | - |
Resolution and Units | 1 W/m2 |
Range | 0 to 1800 W/m2 |
Accuracy | ±5% of full scale (Reference: Eppley PSP at 1000 W/m2) |
Drift | up to ±2% per year |
Cosine Reponse | ±3% for angle of incidence from 0° to 75° |
Temperature Coefficient | -0.067% per °F (-0.12% per °C); reference temperature = 77°F (25 °C) |
Update Interval | 50 seconds to 1 minute (5 minutes when dark) |
Current Data | Instant Reading and Hourly Average; Daily, Monthly High |
Historical Data | Hourly Average, Daily, Monthly Highs |
Alarm | High Threshold from Instant Reading |
Ultra Violet (UV) Radiation Index (requires UV sensor) | - |
Resolution and Units | 0.1 Index |
Range | 0 to 16 Index |
Accuracy | +5% of full scale (Reference: Yankee UVB-1 at UV index 10 (Extremely high) |
Cosine Reponse | +4%(0' to 65' incident angle);9% (65' to 85' incident angle) |
Update Interval | 50 seconds to 1 minute (5 minutes when dark) |
Current Data | Instant Reading and Hourly Average: Daily,Monthly high |
Historical Data | hourly Average, Daily, Monthly highs |
Alarm | High Threshold from Instant Calculation |
Ultra Violet (UV)Radiation Dose (requires UV sensor) | - |
Resolution and Units | 0.1MEDs to 19.9 MEDs:1MED above 19.9 MEDS |
Range | 0 to 199 meds |
Accuracy | +5% of daily total |
Drift | up to +2% per year |
Update Interval | 50 seconds to minute (5 minutes when dark) |
Current Data | Latest Daily totals(user resetable at any time from Current Screen) |
Historical Data | Hourly,Daily Totals (user reset from Current Screen does not affect these values) |
Alarms | high Threshold from Daily Total |
Alarm Range | 0 to 19.9 MEDs |
Temperature Measurement Range | 0°C ˜40°C (32 F˜104 F) |
Measurement Temperature Resolution | 1°C(2 F) |
Measurement Range(Brix) | 0%˜85% |
Accuracy | +/- 0.2% |
Automatic Temperature Compensation | 10-40 C |
Power supply | a battery (9V) |
Operation Temperature | 0°C˜40°C(32 F˜104 F) |
Dimension | 185mm ×59mm ×45mm |
Color Target Comparator is used for both color and luminance measurring. In 1931, the CIE (Commission International De LEclairage) set up a series of visible spectrum color space standards. The basic CIE color space standards are CIE_XYZ. It is built on standard visual observers on the basis of ability to see, and it reflects the standards scope of color by eye. Based on CIE_XYZ there are CIE_XYY, CIE_Lab, CIE_Lch standard color space, etc.
At present, the CIE lab color space is the most commonly used in the industry. In CIE Lab color space, L value stands for color brightness and a value stands for the Green-on-red value, and b value stands for the blue-on-yellow color value. If determine a value of color by only a group Lab, it will be not practical. However, we can determine the differences among them by comparing two groups of Lab values.
Test accuracy | Within0.2 ∆ E*ab |
Display | ∆E*ab, CIE_Lab, ∆L, ∆a, ∆b, CIE_Lch |
Test swpe | L: 0-100 a: -128- -127 b: -128- -127 |
Test time | About 3 seconds. |
Test Interval | 2 seconds. |
Test aperture | 8mm |
Automatic shutdown | Automatic shutdown after 5 minutes waiting |
Light source | C light source |
Sensor | Correct silicon photodiode carrays |
Power | DC/5V (1.5A) ,2pcs 1.5V (AAA) batteries |
Size | 171 *50*48. 8mm |
Weight | 203. 6g (Exclusive battery) |
Operated temperature scope | 0-400 C (32-1040 f) : lower than 85% relative humidity. |
Standard accessories | 1pc manual/ softwbag/ 9v battery/5v external power supply/USB |
Storage temperature range | connecting cable/cd |
Application | Measure any color of smooth surface. |
VISCOMETER are widely used to determine and measure the liquid viscosity in many applications such as grease, painting, pharmacy and adhesives.Abroad range of measurement is now available in a single instrument-the multi-range ACM 52301 digital viscometer.
Superior repeatability and linearity is insured by a design which incorporates a unique combination of a proprietary pivot less mechanism with a torque balance servo system. The power of the viscometerlies in its multi-range capability which enables a five-fold increase in measurement range over conventional models providing unparalleled cost performance and convenience.
The Digital rotary viscometer is based on single chip micro-processor technologies and used for determining the liquid viscose capacity and the absolute viscosity. Comparing with other similar products, this instrument has the following features:
Thermo Hygrograph is used to measure temperature and humidity both.A neat compact, reliable, and economical instrument makes this Thermo Hygrograph recorder the ideal choice for archives, museums, galleries, libraries, laboratories, storage rooms, paper storage, meteorology, printing or computer rooms, measuring temperature and humidity changes over periods of 1, 7 or 31 days.
Digital handheld refractometer are used for measuring refractive index of a material.
The ACM-DRB Series digital brix refractometers are highly accurate and precise optical instruments. These digital refractometers use latest and precise optical cells. These refractometers use digital picture processing technique and accurate temperature compensation.
Advanced microprocessor is center of the digital brix refractometer which measure the brix of the liquid with precisions displays as three and half figures number liquid crystal displayer. The refractometer is simple to operate and easy to carry. This equipment is very sturdy and have a long battery life.
When a reading is shown to two decimal places, the accuracy of measurement is +/-0.1
Temperature Measurement Range | 0°C ˜40°C (32 F˜104 F) |
Measurement Temperature Resolution | 1°C(2 F) |
Measurement Range(Brix) | 0%˜85% |
Accuracy | +/- 0.2% |
Automatic Temperature Compensation | 10-40 C |
Power supply | a battery (9V) |
Operation Temperature | 0°C˜40°C(32 F˜104 F) |
Dimension | 185mm ×59mm ×45mm |
Unit of measurement | Brix |
Electrically operated to work on 220 Volts A.C Recommended for grinding of dry plant samples. Also for a great variety of commercial dry materials. Unit having two stationary steel blades and Rotary with steel edges provided in the cast Iron chamber. A removable safety Glass sheet plate from the face of chamber of permits observation during operation. Willey Mill is fitted on substantial Cast iron base. Complete unit supplied with aluminum / Cast chamber , polished hopper with cover, wooden plugger, Three delivery tubes mounted with sieves cloth mesh no; 20, 40, and 60mesh , One Allen Key for adjusting blades and 3 Glass Jars, brush etc.
Chamber Size | Motor Capacity |
(a) 40x25 mm | 0.25 H.P. |
(b) 65x25 mm | 0.25 H.P. |
(c) 100x50 mm | 0.50 H.P. |
(d) 200x75 mm | 1 H.P. |
Our laboratory ball mill takes care of any pulverizing, milling or grinding job that you can give it. Its multifunction design allows it to handle wet or dry, brittle or fibrous materials. Weiber Ball mills are fitted with FHP motor. The unit drives with maximum speed of 80 rpm. The jar is made of aluminum and having steel balls of different sizes to be put in jar for mixing and grinding pesticides powder. Jar is interchangeable and easily removable, light in weight and compact unit working on 200 volts AC.
Feed material | soft, hard, brittle, fibrous - dry or wet |
Size reduction principle | impact, friction |
Material feed size* | < 10 mm |
Final fineness* | < 10 µm, for colloidal grinding < 1 µm |
No. of grinding stations | 1 |
Type of grinding jars | "comfort" |
Material of grinding tools | MS Balls / stainless steel balls |
Grinding jar sizes | 1 ltr- 2 ltrs- 5 ltrs & 10 ltrs. |
Interval operation | yes, with direction reversal |
Drive | FHP motor |
Diaphragm type Vacuum Pump is designed for fast, efficient operation. Its large, powerful composition pulls an automotive air conditioning system into a deep vacuum in record time. Just hook it up to the vehicle, plug it in, and it removes both air and moisture rapidly, assuring thorough dehydration before you recharge. It works on both R-134a and R-12 vehicles with no changeover or waiting time! An industrial strength motor insures long lasting reliability and operation. It can also be integrated into many RTI refrigerant management centers.
Models | Max. Flow rate (LPM) |
Max Vacuum in Hg |
Max. Pressure in PSIg |
Approx Dimension |
ACM-223009-10 | 10 | 20" | 25 | 90 x 145 x 85 |
ACM-223009-15 | 15 | 22" | 25 | 175 x 110 x 150 |
ACM-223009--25-S | 15 | 26" | 30 | 210 x 125 x 125 |
ACM-223009-25-P | 25 | 23" | 20 | 210 x 125 x 125 |
ACM-223009--45 | 45 | 23" | 40 | 200 x 130 x 200 |
ACM-223009--75 - S | 45 | 27" | 60 | 300 x 130 x 200 |
ACM-223009--75 - P | 75 | 23” | 40 | 300 x 130 x 200 |
It is general-purpose machine and found very useful for mixing or agitation ingredients, solution in flasks, bottles, beakers and Kahn racks etc. Upper tray covered with rubber floor and sides of the tray are slotted to take parallel and cross bars cover with rubber to hold flasks, bottles beakers, Kahn racks etc. The bars are tightened with washers and fly nuts can be adjusted as per the requirement.
The machine can accommodate Kahn racks, bottles or flasks of different sizes by adjusting the compartments with the help of rods supplied with the machine. Fitted with HP motor and having mechanical adjustments for adjusting the motion.
wrist action shaking machine Action is used for vigorous shaking of various solutions/chemicals in wrist action mode by conical flask fitted in the clamps. these machines are well integrated with the heavy cast iron base which make these sturdy in construction, have two equipped arms used for holding flasks fixed for shaking liquid solutions.
universal shaker is a compact, heavy-duty variable speed shaker. It is used for the agitation of electrophoresis gels and filter assay media for staining, de staining and assay development. The Shaker accommodates a variety of vessels. It is continuously adjustable from 10 to 350 RPM. This de-sign incorporates an orbital platform that accepts a variety of optional trays. A variety of tray models are available, including three equipped with flask clamps for common sizes of flasks. Peg and Grommet style trays make changing convenient. The timer circuit permits automatic shut off after 3-120 minutes.
This group of magnetic stirrers is similar to the conventional magnetic stirrers but have additional hot plate to achieve heating of solutions to be stirred. The heating is controlled by energy regulator, which ensures regulation at any desired percentage of the capacity of heater.
Maximum Speed RPM | 1800 |
Stirring Capacity Ltrs | 5 |
Heating Capacity Watts | 500 |
Dimension ( W x D x H ) mm | 190 x190 x 170 |
Stirring Paddle ØxL mm | 10 x 50 |
This machine is useful For estimation of phosphoric acid stages and raw phosphate suitable incitrate solutions. The shaking frame is mounted on spindle with pulley for power drive and the spindle is supported on bearing on heavy metal upright base plate. Bottle and flasks of various sizes from 500 ml to 1 liter can be accommodating. Fitted with 1 / 4 HP motor to work on 220 volts single phase and speed of 60 to 70 RPM with cord and plug.
It features:
Glass Water distillation units produce highly treated and disinfected water for laboratory usage. The distillation process removes minerals and microbiological contaminants and can reduce levels of chemical contaminants.
Water distillers are neither intended to treat water that is visually contaminated nor intended to convert waste water to safe, microbiologically.
Parameters | Values |
Output | 3 lit/5tr/10 ltr/hr |
Distilled Water Quality | |
Conductivity (using raw water) | 3.0-4.0 x 10 -6S/cm |
Conductivity (using treated water) | 1.5-2.0 x 10 -6S/cm |
PH | 5.5 - 6.0 |
Distillate Quality | Pyrogen free |
Electrical Power | 220/240 Volts, 50 - 60 Hz, Single Phase, 3 KW Silica heater |
Cooling water reqd | 1-2 lit/min |
Min. Pr. | 3 p.s.i |
Weight | 8-16 kgs (app)-Model Specific |
